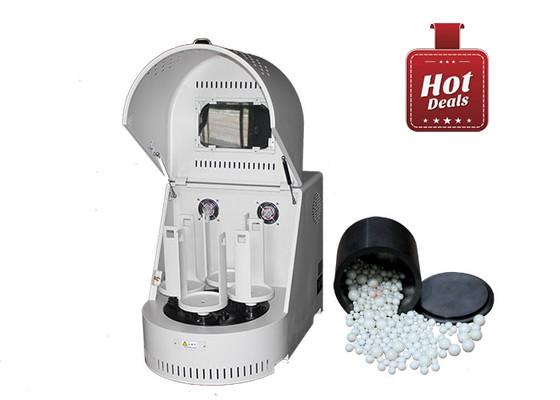

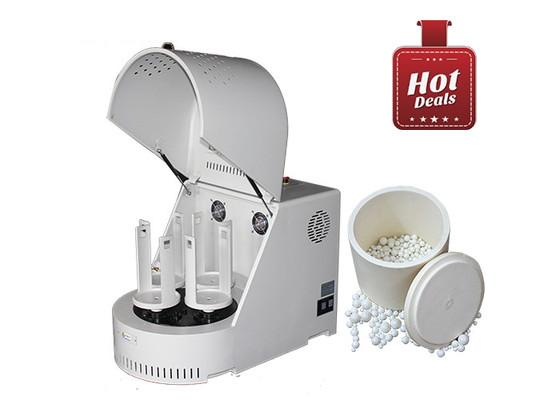

4*3L Mill Jars 220V - 50Hz Vertical Laboratory Ball Mill With Variable Speed for fine powder milling

Overview

The Vertical Planetary Ball Mill is a cutting-edge grinding system designed for precision milling, ultrafine powder synthesis, and nanomaterial development. Its compact and efficient design makes it ideal for research labs, universities, and industrial R&D centers requiring high-quality sample preparation. With multi-jar capability, users can process up to four samples simultaneously, significantly improving workflow efficiency. Additionally, optional vacuum milling jars allow for oxygen-sensitive or contamination-free grinding, making it versatile for advanced material research.

Working Principle

This mill utilizes a unique vertical planetary motion mechanism, where grinding jars rotate on their own axes while orbiting around a central axis at high speeds. This dual-motion generates intense grinding forces through impact and friction, ensuring ultra-fine particle refinement down to submicron or nanometer levels. The system supports both dry and wet grinding modes, accommodating a wide range of material properties and processing requirements.

Applications

Widely used in advanced material science, this mill is essential for processing:

• Battery Materials (e.g., lithium-ion cathode/anode powders, solid-state electrolytes)

• Advanced Ceramics (e.g., alumina, zirconia, piezoelectric materials)

• Nanomaterials (e.g., graphene, metal oxides, quantum dots)

• Pharmaceuticals & Chemicals (e.g., drug formulation, catalyst synthesis)
  It is also highly effective in metallurgy, electronics, and environmental research for producing uniform, high-purity powders.

Key Features

1. Precision Control – Variable-speed motor with programmable settings for optimized grinding efficiency.

2. Multi-Sample Processing – Simultaneous grinding of up to four samples reduces experimental time.

3. Enhanced Safety – Automatic shutdown when the safety cover is opened, preventing accidents.

4. Low Noise & Vibration – Engineered for quiet operation, suitable for laboratory environments.

5. User-Friendly Interface – Digital controls with timing functions, reversible rotation, and overload protection.

6. Robust Construction – Durable design with stable operation, ensuring long-term reliability.

7. Wide Compatibility – Supports various jar materials (stainless steel, nylon, PTFE) for diverse applications.

This mill combines high-performance grinding with advanced functionality, making it an indispensable tool for modern material research and industrial innovation.

Technical Features

Technical Parameters

Accessories of Mill Jars & Balls

Available Mill Jars Matching with XQM-10A

Full sizes of 304 or 316L Stainless steel mill jars, tungsten carbide mill jars, agate mill jars, zirconia mill jar, alumina ceramic mill jars, nylon mill jars, PU mill jars, PTFE mill jars, and etc.

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, steel carbon balls, tungsten balls, agate balls, silicon nitride balls, high wear resistant steel balls, manganese steel balls, and so on.
