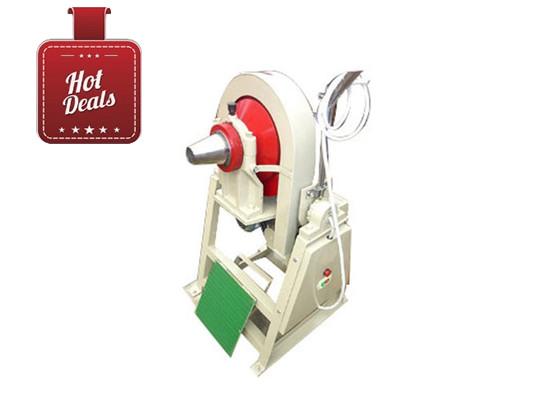

Hot Sale Laboratory XMQ350 * 160 conical ball mill with a capacity of 4kg for sample grinding

1. Hot Sale Laboratory XMQ350*160 Conical Ball Grinder Ball Mill for Sample Grinding

The laboratory cone ball mill allows for free setting of the running time and can be utilized for both dry and wet grinding methods. It employs frequency conversion technology and has a broad speed regulation range. This machine is convenient for grinding and uniform mixing. It is easy to operate and clean, with low noise and low pollution, and it has excellent grinding and sealing capabilities. This model is a type of laboratory grinding equipment that is small in size, lightweight, and multi functional. It can be used in laboratories, research institutes, and in the ore beneficiation of industries such as metallurgy, geochemistry, building materials, and coal mining. The cone ball mill has good performance, a rational structure, high sample preparation efficiency, and good sealing performance. It is suitable for crushing and processing test samples of various metal and non metal ore raw materials. Moreover, the laboratory cone ball mill is suitable for ultra fine grinding in industries such as coatings, inks, fuels, and food, as well as in industries like cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non ferrous metal beneficiation, and glass ceramics.

2. Working Principle of Lab Conical Ball Grinder

The lab conical ball grinder is a horizontally placed cylindrical rotating device. Driven by external gears, it has two bins and is a lattice ball mill. Materials evenly enter the first chamber of the mill through the feeding hollow shaft screw from the feeding device. In this chamber, there are stepped or corrugated linings filled with steel balls of different sizes. The rotation of the cylinder generates centrifugal force, which lifts the steel balls to a certain height and then makes them fall, thus having a strong impact and grinding effect on the materials. After being roughly ground in the first bin, the materials enter the second bin through a single layer partition. The second bin is lined with a flat lining plate and contains steel balls inside, where the materials are further ground. The ground powder is discharged through the discharge grate, thus completing the grinding operation.

3. Structure Features of Lab Conical Ball Grinder

This machine consists of main parts such as the feeding part, the discharging part, the rotating part, and the transmission part (including the reducer, the small size transmission gear, the motor, and the electric control). The hollow shaft is made of steel castings, and its liner can be detached and replaced. The large rotary gear is processed through casting hobbing. The cylinder is lined with wear resistant lining plates, which possess good wear resistance. The machine runs smoothly and has dependable performance.

4. Technical Parameters of Lab Conical Ball Grinder
