Technical Overview

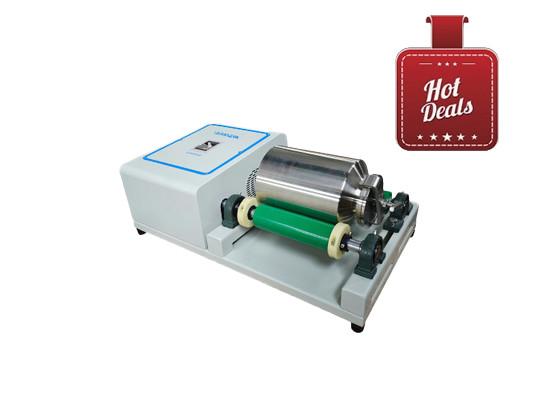

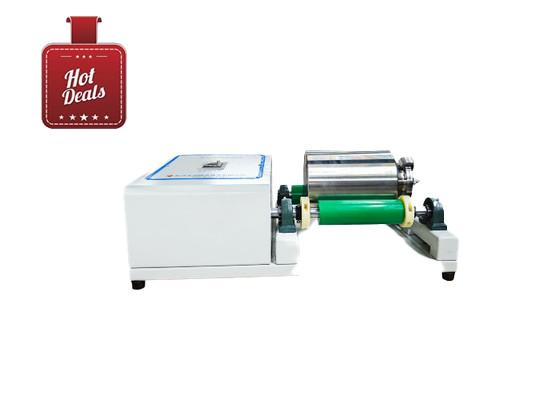

Our advanced dual-roll laboratory ball mill represents the next generation in compact sample processing technology. Designed specifically for research-grade material preparation, this system combines precision engineering with user-friendly operation to deliver consistent, reproducible results for a wide range of applications.

Key Specifications

Processing Capacity: 5L grinding chamber

Speed Range: 60-570 rpm (continuously adjustable)

Control System: Digital RPM display with memory function

Safety Features: Automatic shut-off and overload protection

Warranty: Comprehensive 12-month coverage

Innovative Design Features

Dual-Roll Grinding Mechanism

Counter-rotating rollers ensure uniform particle distribution

Precision-balanced rotation for vibration-free operation

Optimized contact geometry for efficient energy transfer

Advanced Process Control

Microprocessor-controlled speed regulation (±1% accuracy)

Programmable operation cycles (1-999 minutes)

Real-time operation monitoring

Application Spectrum

Materials Research

Nanocomposite preparation

Ceramic powder refinement

Metal alloy homogenization

Battery material processing

Pharmaceutical Development

API particle size reduction

Excipient blending

Cocrystal formation

Drug formulation optimization

Analytical Chemistry

Sample preparation for XRD/FTIR

Reference material production

Environmental sample processing

Catalysis research

System Advantages

Space-Efficient Design: 40% smaller footprint than conventional mills

Precision Grinding: Achieves ≤10μm particle consistency

Material Versatility: Processes hard metals to delicate organics

Process Flexibility: Wet/dry grinding modes

User-Centric Features

Quick-release jar mounting system

Transparent safety shield

Easy-clean interior surfaces

Low-noise operation (<65dB)

Performance Metrics

Typical processing time: 30-90 minutes

Maximum batch size: 3.5kg (material dependent)

Power consumption: 0.75kW

Voltage compatibility: 110V/220V selectable

This research-grade ball mill incorporates German-engineered components with Japanese precision standards, offering:

Unmatched process repeatability

Laboratory-proven reliability

Intuitive touchscreen interface

Comprehensive data logging

The system's modular design accommodates various jar materials (stainless steel, zirconia, polyurethane) and grinding media (3mm-20mm balls), making it ideal for:

University research labs

Pharmaceutical QC departments

Materials science facilities

Industrial R&D centers

With its combination of compact dimensions and professional-grade performance, our 5L dual-roll ball mill sets new benchmarks in laboratory sample preparation technology, delivering pharmaceutical-level consistency in particle size reduction and material blending applications.

Features:

• Product Name: Laboratory Ball Mill
• Total Max Capacity: 1.75L
• Description: One Working Position Roll Ball Mill
• Final Fineness: 13-74μm
• Grinding Jar: 1pc
• Type: Lab Ball Mill
• Keyword: Laboratory Mill Ball
• Keyword: Ball Mill Laboratory
• Keyword: Ball Mill Research Laboratory

Technical Parameters:

Customization:

Brand Name: TENCAN

Model Number: QM-5

Place of Origin: Hunan China

Certification: ISO CE

Minimum Order Quantity: 1 set

Price: negotiable

Packaging Details: Carton & Plywood Case with Foam

Delivery Time: 3-7 days

Payment Terms: T/T, Western union, L/C

Supply Ability: 500 Sets per Month

Grinding Balls: According Your Material's Nature

Rotate Speed: 60-570 Rpm

Description: One Working Position Roll Ball Mill

Type: Lab Ball Mill

Grinding Jar: 1pc

Our TENCAN QM-5 model Lab Ball Mill is an essential piece of equipment for any Ball Mill Laboratory setting, offering precision and customization for your grinding needs. With a high rotation speed range and suitable for a variety of grinding balls, this Lab Ball Mill ensures efficient and accurate grinding results. The sturdy packaging ensures your Lab Ball Mill arrives ready for immediate use in the laboratory.

Support and Services:

Support and Services:
Our laboratory ball mill has received comprehensive technical support and services to ensure optimal performance. You will have the opportunity to interact with an experienced professional team who can help you solve any technical issues related to operation, calibration, and troubleshooting. In addition, we also provide a wide range of online resources such as user manuals, frequently asked questions (FAQ), and instructional videos to help you set up and use laboratory ball mills.
Our professional service team is committed to maintaining the reliability and efficiency of your equipment. We offer a range of services, including preventive maintenance, aimed at minimizing downtime and ensuring that your laboratory ball mill always meets the demanding requirements of your research and development work.
For customers who require further assistance, we also offer training courses to help you and your employees become more familiar with the laboratory ball mill and its functions. These courses cover a wide range of topics from basic operations to advanced techniques, and can be tailored to your specific needs.
Please note that while we strive to provide comprehensive support and service, the actual product may vary depending on your location and specific terms of the warranty or service agreement. We suggest that you consult the product documentation or contact our support team for detailed information about the support and services available to you.
