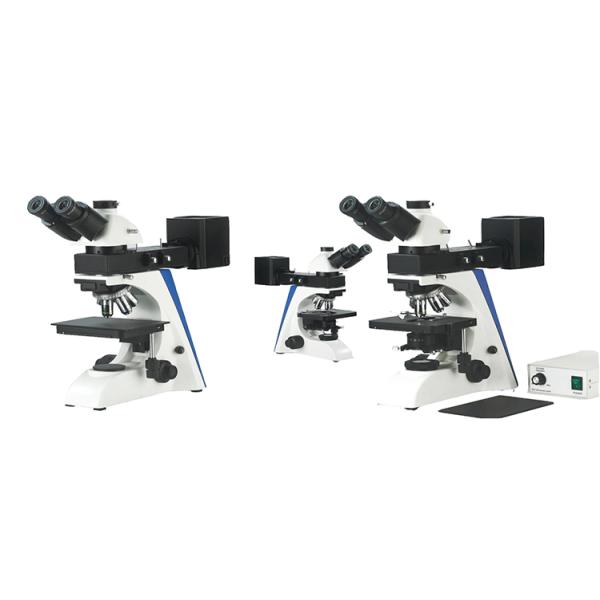

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective
Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective
Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective
Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective
Specifications
Brand Name :
NO
Model Number :
MIT
Certification :
ISO9001. ISO14001, ISO13485, CE, RoHs
Place of Origin :
China
MOQ :
1 unit
Price :
Discuss
Payment Terms :
T/T
Supply Ability :
3000 units per year
Delivery Time :
10-20 work days
Packaging Details :
Carton
Optical :
Infinity
Stand :
Upright
Illumination :
Transmitting and Reflecting
Polarizing Unit :
Polarizer and analyzer
Head :
Binocular or Trinocular
Objective :
LWD Infinity Plan
Description

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective MIT300/500 Industrial Upright Metallurgical Microscope Description:

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective

MIT300/500 metallurgical microscope is designed for material surface observation and mechanical state detection. It can accurately display the color of different metals and easy to use for analysing the internal structure of electronic products.

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective

MIT300/500 Industrial Upright Metallurgical Microscope Details:

01. Head

Inclined 30 degree and rotatable 360 degree seidentopf trinocular head,with 48~76mm interpupilary distance

Light distribution 100:0 & 80:20

Eyepiece diameter: 30mm

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective

02. Reflecting illumination for Polarizing

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective

03. L.W.D Infinity metallurgical plan objective

5X／0.10 W.D=24.23mm

10X／0.25 W.D=18.48mm

20X／0.40 W.D=8.35mm

40X／0.65 W.D=3.90mm

50X／0.70(S) W.D=1.95mm

80X／0.80(S) W.D=0.85mm

100X／0.60(S) W.D=1.00mm

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective

MIT300/500 Industrial Upright Metallurgical Microscope Parameter:

Seidentopf Head Trinocular Inclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Light Split 100:0/20:80
High Eyepoint Eyepiece WF10x/22mm( Diopter Adjustable)
WF10x/22mm(Diopter Adjustable, Micrometer 0.1mm )
Nosepiece Quintuple
Objective Long Working Distance Infinity Plan Objective (no cover glass)
LPL5x/0.10, W.D.=16.04mm
LPL10x/0.25 W.D.=18.48mm
LPL20x/0.40 W.D.=8.35mm
LPL50x/0.70(S) W.D.=1.95mm
Mechanical Stage Mechanical Stage for Reflect Illumination, Size 200x150mm, Travel Range 77x52mm, Stage Quick Drop-Down Device For Extra 50mm Up/Down Range Mechanical Stage for Transmit & Reflect Illumination, Size 182x140mm, Travel Range 77x52mm
Polarizing Polarizer, Analyzer
Condenser Abbe N.A.1.25, With Iris Diaphragm
Focusing Coaxial Coarse and Fine Focusing Knob, Coarse Stroke 25mm, Fine Stroke 0.2mm/Rotation, Fine Division 2um, With Tension Adjustment, With Upper Distance Limit
Illumination Reflect Light, 12V 50W Halogen Lamp, Kohler Illumination With Field Diaphragm
---- Transmit Light, 6V 20W Halogen Lamp, Kohler Illumination With Field Diaphragm Center Adjustable
Filter Blue
Power Wide Range Voltage 100~240V

Industrial Upright Metallurgical Microscope LWD Infinity Plan Objective

1. Do you provide any effective certification?

Yes, we provide ISO9001, ISO14001, ISO13485, CE, RoHs for the series.

2.OEM or ODM is acceptable?

Yes ,OEM & ODM acceptable.

3.How is the package?

We usually pack goods with quality foam and hard carton.

4. What is your MOQ?

It depends on what kind of products you choose.For different items, MOQ will be different
