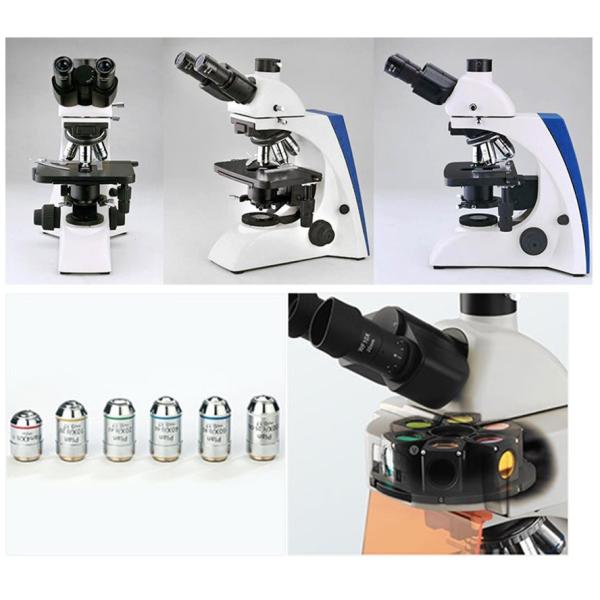

Infinity Optical Upright Fluorescence Microscope Binocular / Trinocular Head
Infinity Optical Upright Fluorescence Microscope Binocular / Trinocular Head
Specifications
Brand Name :
No
Model Number :
BK-FL
Certification :
ISO9001, ISO14000, ISO13485, CE, RoHs
Place of Origin :
China
MOQ :
1 unit
Price :
Discuss
Payment Terms :
T/T
Supply Ability :
2000 units per year
Delivery Time :
10-20 work days
Packaging Details :
Carton
Optical System :
Infinity
Epi illumination :
HBO or LED
FL filter :
U,UV, B,G
Transmitting Illumination :
Halogen or LED
Head :
Binocular or Trinocular
Objective :
Plan objective
Description

BK-FL Upright HBO LED Trinocular Mercury Lamp Infinity Fluorescence Microscope

EPI Fluorescence Device

Infinity Optical Upright Fluorescence Microscope Binocular / Trinocular Head

HBO Fluorescence Unit: Epi HBO fluorescence unit,

Six-hole disc media which can be fixed with Uv /V/B/G and another filters ,

100W mercury lamp.

Infinity Optical Upright Fluorescence Microscope Binocular / Trinocular Head

LED Fluorescence Unit: Epi LED fluorescence unit

Six-hole disc media which can be fixed Uv /V/B/G and another filters,

5W LED lamp.

BK-FL Series Fluorescence Microscope

Items Specification Outfits
Eyepiece WF10×／20mm (tube dia.:23.2mm) ●●
Infinity Plan Objectives PLAN 4×／0.10 W.D.=12.10mm ●
PLAN 10×／0.25 W.D.=4.64mm ●
PLAN 20×／0.40(S) W.D.=2.41mm ●
PLAN 40×／0.66(S) W.D.=0.65mm ●
PLAN 100×／1.25(S, Oil) W.D.=0.12mm ●
PLAN 2.5×／0.07 W.D.=8.47mm ○
PLAN 60×／0.80(S) W.D.=0.33mm ○
Seidentopf Binocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance: 48mm -75mm

 ●
Seidentopf Trinocular Head

Inclined 30°,Rotatable 360°,

Interpupilary Distance: 48mm-75mm

Light Distribution: 100: 0 / 80:20

 ○
Mechanical Stage

Stage Size: 175X145mm,

Travel: 78mm×55mm,
Coaxial Coarse and Fine Focusing Knobs,
Two Slide Holder

 ●
Wire Mechanical Stage ○
Nosepiece Quintuple ●
Swing Out Condenser Abbe N.A. 1.25 with iris diaphragm. ●

Koehler Illumination

Wide voltage input: 100V～240V

 6V/20W Halogen ●
6V/30W Halogen
3W-LED Illumination
Field diaphragm Center adjustable ●
Filter Blue ●
Green ○
Amber ○
Grey ○
C-mount 1×C-mount ○
0.57× C-Mount ○
Adaptor for Digital Photograph Used for CANON／NIKON／OLYMPUS etc. ○
Fluorescence Unit

Epi HBO fluorescence unit

( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.

 ○

Epi LED fluorescence unit

( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp.

 ○
Phase Contrast Unit

Quintuple hole turret

10× /20× /40× /100× phase contrast objective

 ○

Independent Slot Phase Contrast Unit:

10× /20× /40× /100× phase contrast objective

 ○
Dark Field Unit Dark field condenser (dry),apply to 4×- 40× objective ○
Dark field condenser (wet),apply to 100× objective ○
Polarizing Attachment

Analyzer

Polarizer

 ○

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Company information:

Chongqing Scope Instrument Co. Ltd., located in Chongqing, China, is a leading professional supplier in the field of microscope and accessories. We have rich experience and enthusiastic design team and strong core factory and supply the microscopes designed and manufactured by our core factory . Further more, we cooperate closely with the other main manufacturers of microscope in China, and supply the wide range of microscope to our customers. We supply biological microscope, metallurgical microscope, polarizing microscope, inverted microscope, fluorescence microscope, stereo microscope, digital camera for microscope and microscope’s accessories.

Our strong core factory has ISO9001, ISO14000, ISO13485, CE, and RoHs certificate.

As a professional microscope supplier and exporter, we have rich experience exporting team, and we export our microscope to worldwide market. Also, we supply professional service to our customers.

We accept OEM and ODM term.
