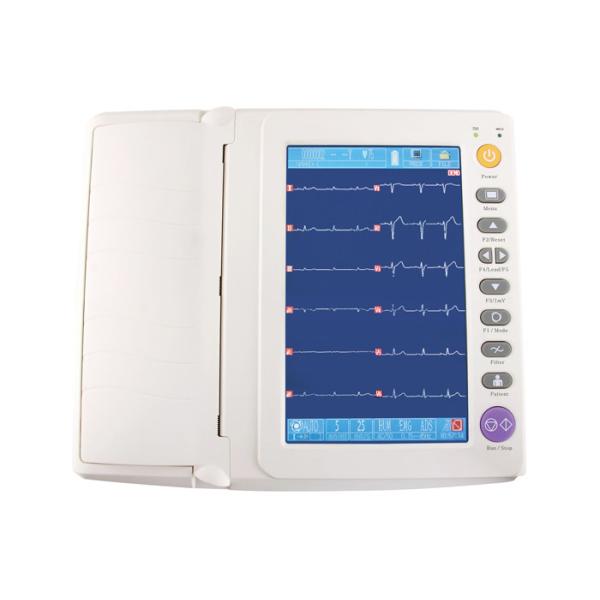

Portable 12 Lead Ecg Machine , Medical ECG Machine With 10 Inch Color Screen
Portable 12 Lead Ecg Machine , Medical ECG Machine With 10 Inch Color Screen
Portable 12 Lead Ecg Machine , Medical ECG Machine With 10 Inch Color Screen
Portable 12 Lead Ecg Machine , Medical ECG Machine With 10 Inch Color Screen
Specifications
Brand Name :
MeCan
Model Number :
ECG-3312G
Certification :
ISO
Place of Origin :
GuangZhou
MOQ :
1 set
Price :
Inquiry
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 sets per week
Delivery Time :
3-15 working dates
Packaging Details :
Carton/Wooden packing
product :
ECG machine
Noise level :
＜15μVp-p
Sensitivity :
5,10,20mm/mV
Paper speed :
6.25,12.5,25,50mm/s (±3％)
Dimension/Weight :
330mm×270mm×72mm/3.8Kg
Frequency response :
0.05～160Hz(-3db)
lead :
12 leads
channel :
12 channel
Description

Twelve Channel ECG Machine With Color Screen 10 Lnch Color Touch Screen ECG Machine

Model: ECG-3312G

Features of 12 Channel ECG machine:

● Compact in size, easy and direct operation, portable

● Accurate pacing pulse identification and automatic analysis function.

● Four working modes: Manual / Auto / Physical Examination / Storage

● 12 channel format recording

● [Freeze] function can replay 12 seconds cardiograph before and after

● Fast ECG test under the [Physical Examination] ,saving power and paper

● Store and replay cardiograph without printing parameters and diagnosis

under the [Storage] Mode .

● 10''800×480 graphic 10 inch color touch screen

● Adapt to 110-230V, 50/60Hz AC power supply.

● Built in rechargeable Li-ion battery.

● 12 lead waveforms view with 250 patient information storage (Extendable).

● Built-in USB,RS232 interface , EXGNET software optional

● USB interface allows net transfer ,USB flash disk and USB printer connected.

● High accuracy thermal printing, adapt to 215mm roll paper and 210×140mm Z-fold paper

Technical Specification of ECG monitor

Lead Standard 12 leads Time constant ≥3.2s
lead acquisition Manual / Auto / Physical Examination / Storage Frequency response 0.05～160Hz(-3db)
Work mode MAN,AUTO,ANALYSIS Modes Noise level ＜15μVp-p
Filter

AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

 Inter-channel Interference ≤0.5mm
CMMR ≥100dB (with AC FILTER) Sensitivity 5,10,20mm/mV
Input circuit

Floating; Protection circuit against

Defibrillator effect

 Recording mode

3ch+++,6ch,6ch+,12ch

Default Man. Mode is 3ch+ format

Default Auto. Mode is 12ch format
Input Impedance ≥50MΩ Paper speed 6.25,12.5,25,50mm/s (±3％)
Input circuit current ≤0.05μA Paper 215 mm Roll / 210×140mm Z-fold paper
Patient current leakage ＜10μA Communication RS232/ USB port
Calibrating voltage 1mV±2％ Power Supply

AC 110-230V(±10%), 50/60Hz (±1Hz),60VA

DC Built-in rechargeable battery,14.4V(4400mmAh)
Voltage tolerance ≥±500mV Dimension/Weight 330mm×270mm×72mm/3.8Kg
