8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db
8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db
Specifications
Brand Name :
YLK
Model Number :
YKM-10L
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1unit
Price :
USD1500-USD3500
Payment Terms :
T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability :
300units/month
Delivery Time :
3-7 working days
Packaging Details :
Carton+Foam
Product Name :
Vertical Planetary Ball Mill
Power Supply :
220V/380V
Input Size :
3-10mm
Output Size :
Min. 0.1um
Capacity :
1/3 of jar
Noise: :
Less Than 60db
Certification: :
ISO, CE
Description

8L laboratory ball mill Driven By Special Gear With Lower Noise For Powder Milling

Product Introduction

YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.

Working Principle

The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together

Applications

Vertical planetary ball mill is widely applied in many industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

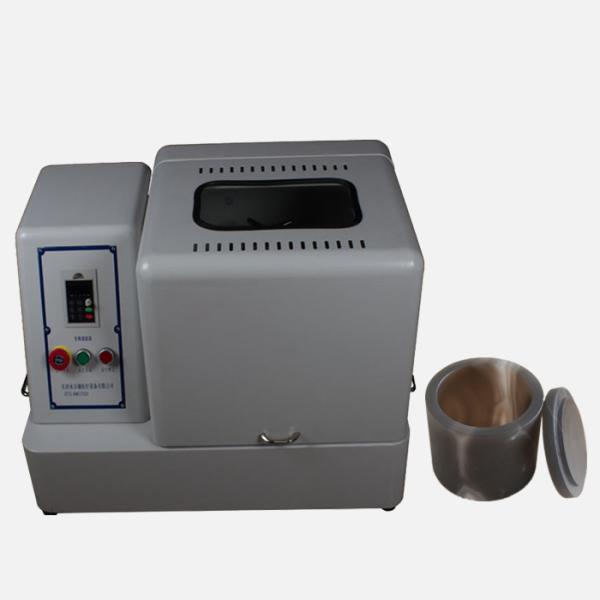

Product Display

8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db

Technical Features

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Max Load Capacity Less than 2/3 of total volume of grinding jars
Feed Size of Materials Soft and crispy material≤10mm,Other materials≤3mm
Output Granule Minimum 0.1µm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 Hours
Materials of Jar stainless steel.agate,nylon,corundum, zirconia,etc

Product Parameters

Model

Jar Volume

Max.Powder Capacity

Rotation Speed (RPM)

Revolution Speed (RPM)

Max Noise

Power (KW)

Net Weight

Dimension

(mm)
YKM-8L 2L 2.6L 35-290 70-580 60db 1.5 150 900*600*640
YKM-12L 3L 4L 35-290 70-580 60db 1.5 170 900*600*640
YKM-16 4L 5.3L

30-225

60-520

 60db 3 330

970*620*680
YKM-20 5L 6.6L

25-215

50-430

 60db 4 350

1350*780*750
YKM-40 10L 13.3L

20-195

40-390

 605db 5.5 420

1350*880*850
YKM-60L 15L 20L

20-180

40-360

68db

 7.5 560

1550*950*1000
YKM-100L 25L 33L

20-120

40-240

40-240

 11 850

1800*1100*1350

Accessories of Grinding Pots & Balls

8L Zinc Oxide Powder Planetary Laboratory Ball Mill Machine Lower Noise 60db
