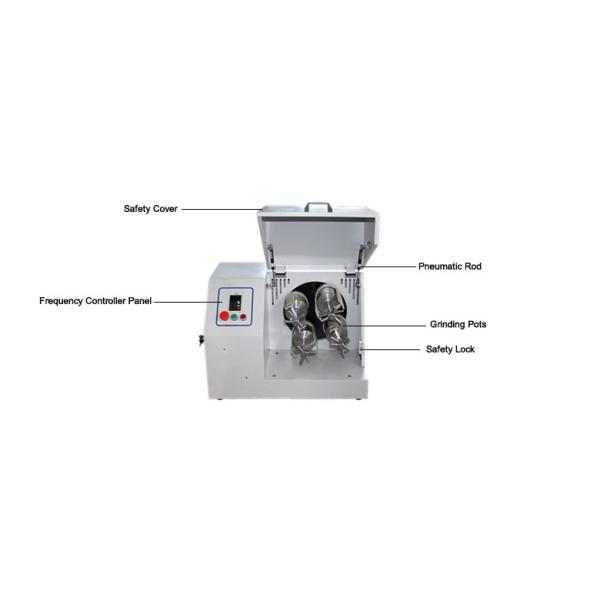

1L Horizontal laboratory ball mill Good Performance For Nano Scale Powder Milling

Overview

​YLK Horizontal planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1~1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.

Working Principle

Horizontal Laboratory Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The machine smashes and blends various kinds of different materials in dry or wet grinding methods. Smallest granularity of output powder can be reached to 0.1μm.

Applications

Horizontal laboratory ball mill is widely applied in industries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on.

Features
1. Easy operation.
2. Unique gear with low noise.
3. Horizontal structure of the mill jar avoids materials sticking the jar wall and sinking to the jar bottom.

Advantages
1. Stable revolving speed.
2. High speed, large energy, high efficiency, small Granularity.
3. Four powder samples can be produced at one time.
4. Speed is adjustable.
5. The ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, and timing according to experimental needs so as to improve efficiency of grinding.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident.

Product Display

Technical Features

Technical Parameters

Accessories of Mill Jars & Balls
Stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, Teflon mill jar (PTFE), and etc.
