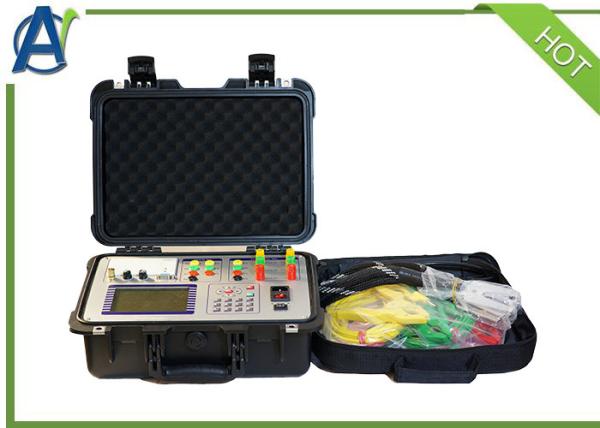

KFZ Automatic Electrical Transformer Load and No Load Loss Tester
KFZ Automatic Electrical Transformer Load and No Load Loss Tester
KFZ Automatic Electrical Transformer Load and No Load Loss Tester
KFZ Automatic Electrical Transformer Load and No Load Loss Tester
KFZ Automatic Electrical Transformer Load and No Load Loss Tester
KFZ Automatic Electrical Transformer Load and No Load Loss Tester
Specifications
Brand Name :
AI
Model Number :
KFZ
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set Transformer Load and No Load Loss Tester
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Supply Ability :
100 sets each month
Delivery Time :
15 days
Packaging Details :
Transformer Load and No Load Loss Tester packed in veneer case
Function :
Transformer Capacity, Load and No Load Loss Tester
Test Parameters :
Transformer capacity, no-load current, no-load loss, short circuit voltage, short circuit (load) loss
Capacity test range :
30kVA～3150kVA
Size :
400×300×220mm
Weight :
8kg (Excluding accessories)
Power Supply :
220V, 50Hz
Warranty :
1 year
Color :
Black
Description

Introduction:

  • Transformer Load and No Load Loss Tester is specializing in basic electricity, power users adverse tax evasion problems and developed a new instrument to increase design.
  • High precision instrument for measuring characteristic parameters of transformer capacity, no-load and load.
  • Transformer Load and No Load Loss Tester is a multi-function measuring instrument, which is equivalent to the usual two kinds of test instruments: the transformer capacity tester + transformer characteristic parameter tester.
  • The utility model can precisely measure a series of power frequency parameters of a plurality of transformers, such as the capacity, the type, the no-load current, the no-load loss, the short circuit (load) loss and the impedance voltage.

Specifications:

1 Test Parameters

Transformer capacity, no-load current, no-load loss,

short circuit voltage, short circuit (load) loss
2 Working power Input voltage 185Vac～250Vac
Allowable input voltage 85Vac～264Vac
Frequency 50/60Hz
Allowable frequency 45Hz～65Hz
Input power 40VA
Joint Standard AC socket 60320
3 AC voltage Range 10～650V
Resolution 0.001V
Accuracy 0.2%±0.001V
4 AC Current Range 0.5～60A
Resolution 0.001A
Accuracy 0.2%±0.001A
5 Frequency Range 45Hz～65Hz
Resolution 0.001Hz
Accuracy 0.2%±0.001Hz
6 Power Range 0～39kW
Resolution 0.001kW
Accuracy

＜±0.5%(CosΦ＞0.1)

±1.0%(0.02＜CosΦ＜0.1)
7 Capacity test range 10kV Dry type transformer 30kVA～3150kVA
10kV Oil immersed transformer 30kVA～3150kVA
35kV Oil immersed transformer 50kVA～31500kVA
20kV Dry type transformer 50kVA～2500kVA
35kV Dry type transformer 50kVA～2000kVA
8 Environment Operating temperature -10℃～+50℃
Storage temperature -25℃～+70℃
Relative humidity 5%～95%
9 Size 400×300×220mm3
10 Weight ≈8kg (Excluding accessories)

KFZ Automatic Electrical Transformer Load and No Load Loss Tester
