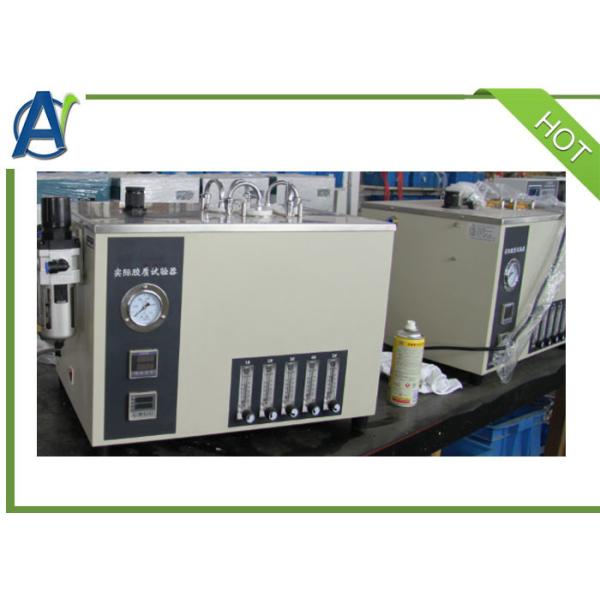

ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
Specifications
Brand Name :
AI
Model Number :
EGT-I
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set Existent Gum Testing Equipment
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
20 days
Packaging Details :
Existent Gum Testing Equipment packed in Plywood case
Standards :
ASTM D381 Existent Gum Testing Equipment
Test method :
Jet Evaporation Method
Working temperature :
(160~165)℃
Overall dimension :
590*480*340mm
Power Supply :
AC(220±10%)V, 50Hz
Power consumption :
2.5KW
Warranty :
1 Year
Working units :
3
Description
ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
Summary
This existent gum tester is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline (Not suitable to determine the existent gum content of aviation turbine fuel)
I. Main technical features
1. This existent gum apparatus equips a specially designed heating bath. The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
3. This existent gum instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.
II. Main technical specifications
Power supply AC(220±10%)V,50Hz,2500W
Dimension of evaporation bath Φ260mm*130mm
Sample positions 3 positions
Dimension of sample positions Φ51mm*70mm
Working temperature (160~165)℃
Temperature control Automatic
Temperature display Digital display
Flow display Displayed by a ball float type flowmeter.
Working pressure of air reducing valve 0.035MPa
Air source External connection, over (1000±150)ml/s
Dimension 590*480*340mm (Thermometer holder is not included)

III.Accessories

No. Item Unit Qty
1 Air compressor Set 1
2 Air compressor power supply line(Connected by air compressor specification requirements) Piece 1
3 Trumpet type nozzle Piece 3
4 Thermometer holder Piece 3
5 Beaker Piece 6
6 Thermometer (-5℃〜400℃, scale division is ±1℃) Piece 4
7 15 A fuse (Φ5×20) Piece 2
8 Air hose Piece 1
9 Sintered glass funnel Piece 1
10 Stainless steel forceps (25 cm) Piece 1
11 Crucible pliers Piece 1
12 Air filter assembly Set 1

There are 3 models Existent Gum Testing Equipment,model I is 3 positions,model II is 5 positions,and model III is supplied with steam generator for aviation jet fuel analysis.

ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method

ASTM D381 Fuel Oil Existent Gum Testing Equipment by Jet Evaporation Method
