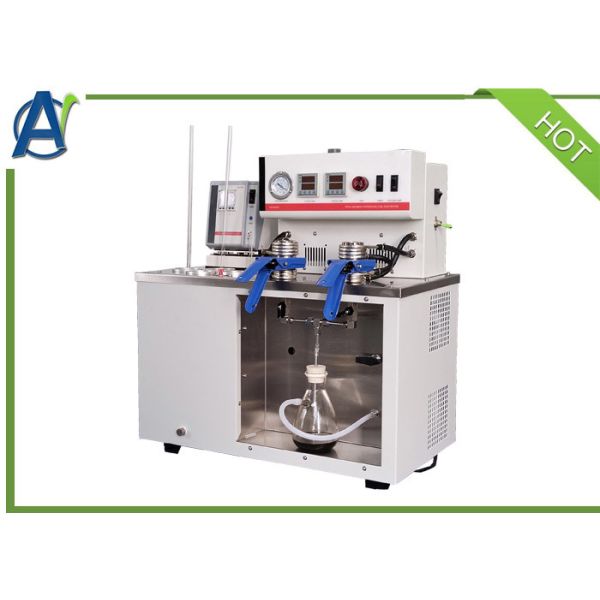

Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
Specifications
Brand Name :
AI
Model Number :
AIC-4870
Certification :
ISO
Place of Origin :
China
MOQ :
1 set Total Sediment Tester
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
30 days
Packaging Details :
Total Sediment Tester is packed in Hardboard
Test standard :
ASTM D4870,ISO 10307-2,SH/T0701,SH/T0702
Test method :
Aging and Hot Filtration
Sample quantity :
25g
Measuring range :
0.5%(m/m)
Absolute vacuum pressure :
40Kpa
Working untis :
Two
Keyward :
Total Sediment Tester,ASTM D4870 apparatus
Warranty :
1 Year
Description

Total Sediment of Residual Fuels Tester by Aging and Hot Filtration

Introduction
This Total Sediment Tester is used to determine the total sediment in residual fuel oil with a viscosity of less than 55 mm2/s at 100°C and distillate fuel oil blended with residual components. The maximum total sediment of residual fuel oil is 0.5% (m/m), and the maximum total sediment of distillate fuel oil blended with residual components is 0.40% (m/m)..

Method summary
Under the specified conditions, the residual fuel oil sample is aged for 24 hours at 100°C, and then the sample is filtered through a specified instrument at 100°C, and the total sediment on the filter paper is washed and dried with a solvent before weighing weight. The test should be repeated.

Main feature

1. This total sediment tester is equipped with special aging bath.

2. Standard filtering elements,with heating and cooling coils.

3. Aperture of glass fiber filter paper:0.0016mm,diameter 47mm.

4.Stainless steel ball valve can switch heat and cool source.

5.Digital time relay controls working time.

6.Micro-computer PID temperature controller,PT100 temperature sensor,high temperature controlling accuracy.


Technical specifications

1 Sample quantity 25g
2 Volume of waste flask 500ml
3 Measuring range 0.5%(m/m)
4 Test units Two
5 Absolute vacuum pressure 40Kpa
6 Applicable standards ASTM D4780,ISO 10307-2,SH/T0701,SH/T0702
7 Power supply AC220V 50HZ

Total Sediment Tester by Aging and Hot Filtration by ASTM D4870 and ISO 10307-2
