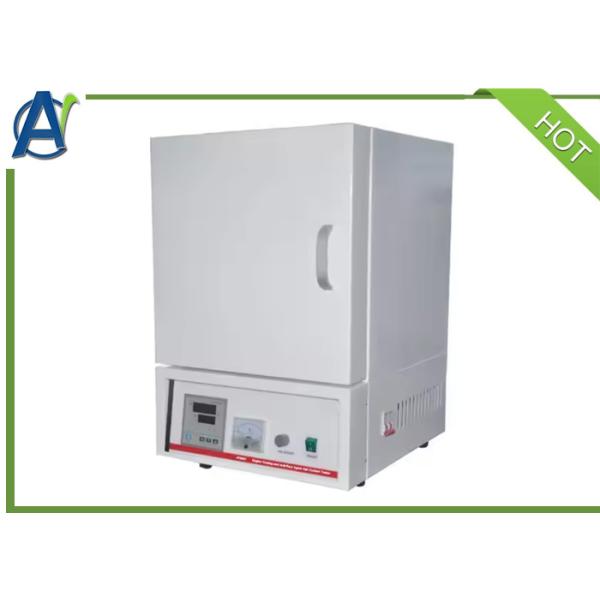

ASTM D1119 Engine Coolant and Rust Inhibitor Ash Content Analyzer for Antifreeze
ASTM D1119 Engine Coolant and Rust Inhibitor Ash Content Analyzer for Antifreeze
ASTM D1119 Engine Coolant and Rust Inhibitor Ash Content Analyzer for Antifreeze
ASTM D1119 Engine Coolant and Rust Inhibitor Ash Content Analyzer for Antifreeze
ASTM D1119 Engine Coolant and Rust Inhibitor Ash Content Analyzer for Antifreeze
ASTM D1119 Engine Coolant and Rust Inhibitor Ash Content Analyzer for Antifreeze
Specifications
Brand Name :
AI
Model Number :
AIC-1119
Certification :
ISO
Place of Origin :
China
MOQ :
1 set ASTM D1119 Ash Content Analyzer
Price :
Negotiable
Supply Ability :
100 Sets per Month
Delivery Time :
30 days
Packaging Details :
Ash Content Analyzer packed in Plywood case
Payment Terms :
T/T, Western Union, L/C
Power supply :
AC(220V±10%), 50Hz
Test stadandard :
ASTM D1119,SH/T0067
Heating method :
Imported heating wire
Temp.control range :
ambient~800℃
Temp.control accouracy :
±10℃
Total power consumption :
2500W
Weight :
42KG
Dimension :
400*460*620mm3
Description

Summary

The Ash Content Analyzer operates on the principle of evaporating or burning the sample under certain conditions, then calcining the ash in a strong heat source and sintering the solid residue. This process determines the ash content of the test product.

The Ash Content Analyzer is suitable for testing unused commercial engine coolants and liquid rust inhibitors, and can also be used to identify the types of coolants and rust inhibitors, but it is not suitable for determining the total inhibitor content.

I. Main technical features

◆ Ceramic heating chamber, good insulation effect, to avoid burns to staff;
◆ Microcomputer processing and PID control, digital display, accuracy ±0.1℃ PT100 sensor;
◆ Porcelain silicon evaporation dishes, 50～100ml, 120～150ml, meet standard requirements;
◆ Hinged furnace door, convenient to open and close;
◆ Electrical control box is separate from the heating box, reducing damage to the electrical box from high temperatures;
◆ Split structure, easy to operate;
◆ This Ash content analyzer adopts imported heating wire for heating, extending service life;
◆ The casing is made of cold-rolled steel mold.

II. Main technical specifications

1 Applicable standard ASTM D1119,SH/T0067
2 Heating method Imported heating wire
3 Temperature control range ambient~800℃
4 Temperature control mode Imported PID
5 Temperature control accuracy

±10℃
6 Total power consumption

2500W
7 Dimension 400*460*620mm3
8 Weight 42KG
9 Power supply AC(220V±10%), 50Hz
