Specifications
Brand Name :
AI
Model Number :
WRT
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set Transformer DC Resistance Test Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 sets per month
Delivery Time :
15 days
Packaging Details :
Transformer DC Resistance Test Set packed in Plywood case
Power supply :
AC220V±10%,(50±1)HZ
Display :
LCD
Keyword :
Winding Resistance Tester,DC Resistance Meter
Weight :
10KG
Measuring range :
5A,10A,20A,40A
Warranty :
1 Year
Resistance Precision :
±(0.2%RGD+2d)
Interface :
RS232
Description

Transformer DC Winding Coil Resistance Test Set

I. Introduction:

There are four DC currents to select for WRT-10A which has a large output power,the power of transformer DC winding coil resistance tester is very little. Used four lines.It is quick,stable,high precision for testing the winding resistance.

In addition, this winding coil resistance tester set has a strong ability for anti-jamming ,over current ,over voltage and discharge.the security is also very high, So it is a ideal tester for testing various resistances especially the sensibility equipment.

II. Functions:

  • A new switching power supply technology makes output current more stable and power larger than before.
  • This winding coil resistance tester has an advanced signal process circuit which has a good performance at anti-noise. Test data is precise and stable.
  • The dc winding resistance tester has protections to prevent circuit over-current, circuit over-voltage, wrong operation, discharge and so on.
  • This micro ohmmeter is small size, light weight and more suitable for outdoor using.
  • Varies levels of output current make measuring range more wide.
  • Large-screen LCD makes operation easy.

III.Specifications

1 Resistance precision ±(0.2%RGD+2d)
2 Test range 1.000Ω -1000Ω (20mA)
100.0mΩ -100.0Ω (200mA)
10.00mΩ -20.00Ω (1A)
4.000mΩ -8.000Ω (2.5A)
2.000mΩ -4.000Ω (5A)
1.000mΩ -2.000Ω (10A)
3 The least scale 1uΩ
4 Output current precision ±5%
5 RS232 Support for data uploading to PC
6 Data storage Two hundred groups of data can be stored
7 Build-in thermal printer Print out the result
8 Power supply AC220V±10%,(50±1)HZ
9 Weight 10kg
10 Working condition -10~50℃ Humidity <90% No condensation.

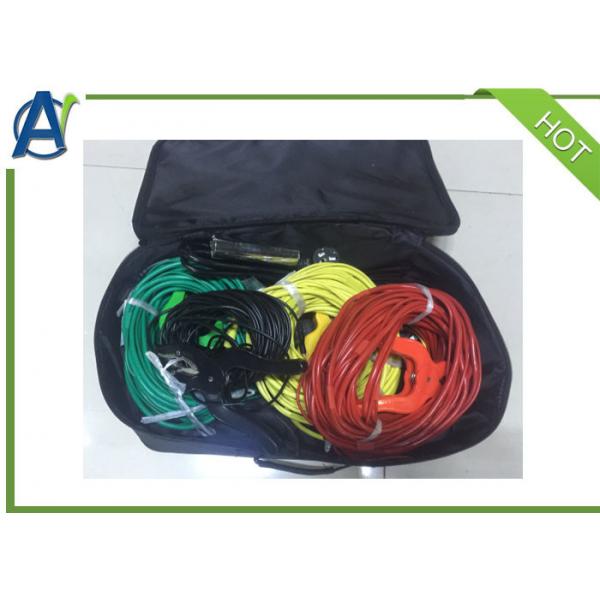

Spares of 10A Transformer DC Winding Coil Resistance Tester

Electrical Transformer Winding Resistance DC Resistance Test Set 5A 10A 20A 40A

Electrical Transformer Winding Resistance DC Resistance Test Set 5A 10A 20A 40A
