Specifications
Brand Name :
AI
Model Number :
KV-H
Certification :
ISO
Place of Origin :
China
MOQ :
1 PC High Temerperature Kinematic Viscosity Test Equipment
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000 PC/Month
Delivery Time :
10 days
Packaging Details :
High Temerperature Kinematic Viscosity Test Equipment packed in Plywood case
Compaction times :
ASTM D2170
Power supply :
AC 220 V±10%, 50 Hz
Temp.control range :
Ambient to 135.0℃(or 180℃)
Bath volume :
23 L
Power consumption :
1800 W
Size :
530*400*670mm
Purpose :
determine the viscosity of asphalt
Warranty :
1 Year
Description

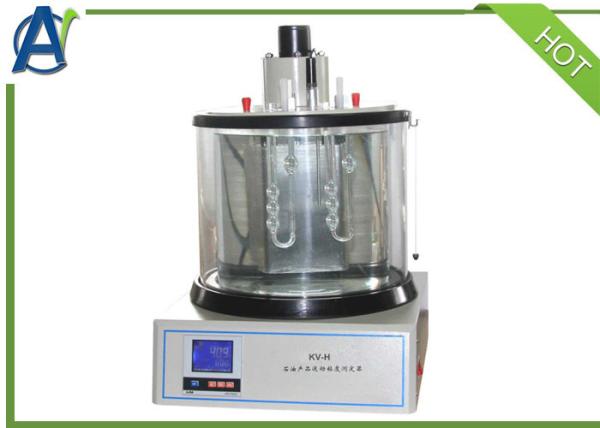

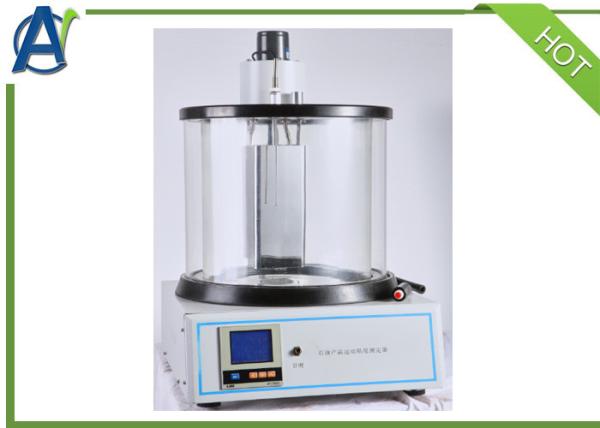

High Temerperature Kinematic Viscosity Test Equipment

I. Introduction:
The asphalt kinematic viscosity test equipment is designed and made as per the national standard of People’s Republic of China GB/T1841 Standard Test Method for Viscosity of Polyolefin Resin Solution. It is used to determine the viscosity of decahydronaphthalene solution of polythene and polypropylene at the stipulated temperature.

The bitumen kinematic viscometer can also be used to determine the viscosity of asphalt at the stipulated temperature as per the industrial standard of People’s Republic of China T0619 Asphalt Kinematic Viscosity Test (Capillary Viscometer Method).

II. Features:
1. High precision digital temperature controller. Electric stirring motor.
2. High temperature resistant glass bath. Double layer structure.
3. This High Temerperature Kinematic Viscosity Test Equipment adotps desktop structure. All-in-one design.
4. The maximum heating temperature is 135℃(or 180℃).

III.Specifications:

Power supply AC 220 V±10%, 50 Hz
Heating power 1700 W
Temperature range Ambient to 135.0℃(or 180℃)
Temperature control accuracy ±0.1℃
Mercury-in-glass thermometer
(Scale division 0.1℃)		 Range 100℃~150℃(for maximum 135.0℃).
Range 100℃~150℃ and range 150℃~200℃(for maximum 180.0℃).
Bath capacity about 23 L
Sample quantity You can make determination using 3 capillary viscometers at a time.
Stirring motor (1) Power: 6W (2) Speed: 1200 RPM
Ambient temperature: -10℃~+35℃ -10℃~ +35℃
Relative humidity: ＜85％ ＜85%
Temperature sensor: RTD, Pt100 RTD, Pt100
Maximum power consumption 1800 W
Capillary viscometer One group of Cannon-Fenske Opaque capillary viscometers; 7 pieces in total. They are N0.200, 300, 350, 450, 500 and 600 (The inner diameters of R tube of them are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm respectively)
Overall dimension 530*400*670mm(Bath is included)

IV.Accessories

No. Item Unit Qty Remarks
1

Countercurrent capillary viscometer

(a group)

 Piece 7
2 Mercury thermometer (100~150℃, scale division is 0.1℃) Piece 1 Standard configuration
Mercury thermometer (150 ~200℃, scale division is 0.1℃) Piece 1 According to the users requirements to purchase
3 Weight ball Piece 1
4 Sensor Piece 1
5 Sensor sheath Piece 1
6 Bakelite cover Piece 4
7 Stopping ring for thermometer (1#) Piece 2
8 Capillary viscometer holder Piece 4
9 Silica gel stopper (3#) Piece 2
10 15A fuse (Ф6×30) Piece 4
11 Round glass Block 1
