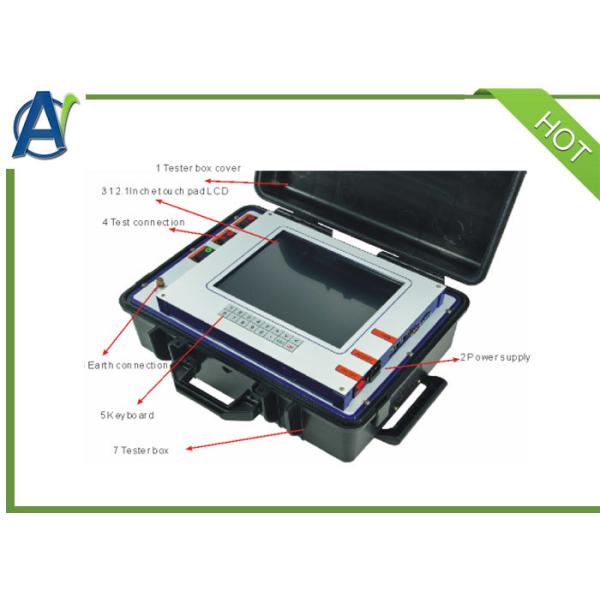

VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
VT Voltage Transformer Test Equipment For CT Current Transformer
Specifications
Brand Name :
AI
Model Number :
CPT-I
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set CT VT Test Equipment
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000 sets per month
Delivery Time :
15 days
Packaging Details :
CT VT Test Equipment packed in Plywood case
Power supply :
AC220V±10%, 50/60Hz±10%
Display :
LCD
Test Standard :
IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
Voltage output :
0.1~180V (AC)
Current output :
0.001~5A(RMS)
Keyword :
CT VT Test Equipment
Test object :
current transormer and voltage transformer
Warranty :
1 Year
Description

Fully Automatic CT VT Test Equipment

Test for current transformer:

  • Excitation curve and parameters test

  • Turns ratio test

  • Ratio and phase error test

  • Polarity mark check

  • Winding resistance measurement

  • Secondary loop burden measurement

  • Error line curve test for protection CT

  • Transient CT parameters test

  • CT nameplate guess

  • Saturation hysteresis loop curve measurement

  • Tests for Potencial Transformer:

  • Turns ratio test

  • Ratio error and phase angle error test

  • Polarity test

  • Secondary burden test

  • Winding resistance test

Test for Voltage Transformer

  • Secondary burden test

  • Winding resistance test

  • Polarity test

  • Turns ratio test

  • Ratio error and phase angle error test

Applications of CT/ VT Test Equipment:

  • CT nameplate check

  • CT parameters check in work burden

  • CT transient parameters analysis

  • CT ratio and phase error calibration

  • PT routine test

Specifications:

Item Name Fully Automatic CT VT Test Equipment
Test standards IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C57.13
Power supply AC220V±10%, 50/60Hz±10%
Voltage output 0.1~180V (AC)
Current output 0.001~5A(RMS)
Power output 500VA
Max. knee voltage measurement 45KV
Current measurement Range 0~10A (automatically change range in 0.1/0.4/2/10A)
Error <±0.1%+0.01%FS

Voltage measurement Range 0~200V (automatically change range in 1V/10V/70V/200V)
Error < ±0.1%+0.01%FS
Turns ratio measurement Range 1~35000
1~2000, error<0.05%
2000~5000,error<0.1%
5000~35000,error<0.2%
Phase measurement error ±2min
resolution 0.01min
Winding resistance measurement Range 0~8kΩ (automatically change range in2ohm/20ohm/80ohm/800ohm/8kohm)
Error < 0.2%RDG+0.02%FS
Maximum resolution : 0.1mΩ
Temperature measurement -50~100 Celsius degree; error<3 Celsius degree
CT Secondary burden Range 0~160ohm (automatically change range in 2ohm/20ohm/80ohm/160ohm)
Error <0.2%RDG+0.02%FS
Maximum resolution : 0.001ohm


PT Secondary burden		 Error 0~80kohm (automatically change range in 800ohm/8kohm/80kohm)
Maximum <0.2%RDG+0.02%FS
resolution 0.1ohm

PT ratio measurement
Range		 1~35000
1~10000 error<0.1%
10000~35000 error<0.2%
PT ratio error measurement :Typical error<0.05%,
Maximum Error<0.1%
PT phase angle measurement maximum error < 3min
Make evaluation for test results according to selected standards
Make word report for test result
Make word reports one time for multi-group test records on the PC
Calculate the ratio errors and phase angle errors at rated burden and working burden in one time test
Compare excitation curves with saved excitation curves in the same window
Memory capacity >1000 groups test results
Working condition temperature -10℃~50℃; moist ≤90%

Accessories List of CPT-I CT VT Test Equipment

Name quantity Description
Main Unit 1 Set
3M mask cable 2 Roots Test cable for power out and CT secondary connection
10M mask cable 1 Root Test cable for CT primary connection
Grounding cable 1 Root
Big test pliers 2 PCS One red and one black
Test gasket 4 PCS Two red and two black
Test pin 4 PCS Two red and two black
Test pliers 12 PCS Three red and nine black
Short connection cable 1 Root Including six connection terminals
3A fuse 3 PCS
Power cable 1 Root
Accessories bag 1 PC
Production disk 1 PC Include Analysis application and user manual
User manual 1 Copy
Inspection report 1 Copy
