Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Building Material Vertical Fire Resistance Testing Furnace BS 476 part 20 21 22
Specifications
Brand Name :
AI
Model Number :
VFTF
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 SET Vertical Fire Resistance Furnace
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
90 days
Packaging Details :
Vertical Fire Resistance Furnace packed in Plywood case
Supply Ability :
5 sets per month
Test standard :
EN1363-1, ISO 834,BS476 part 20,21,22
Power supply :
200-240 VAC or 100 -130VAC or 24VAC 40 -70Hz
Power consumption :
7VA
Test temperature :
1250℃
Operation :
Controlled by PC
Warranty :
1 Year
Calorific value :
4.18×8500KJ/m3
Observation hole :
3 φ200mm
Description

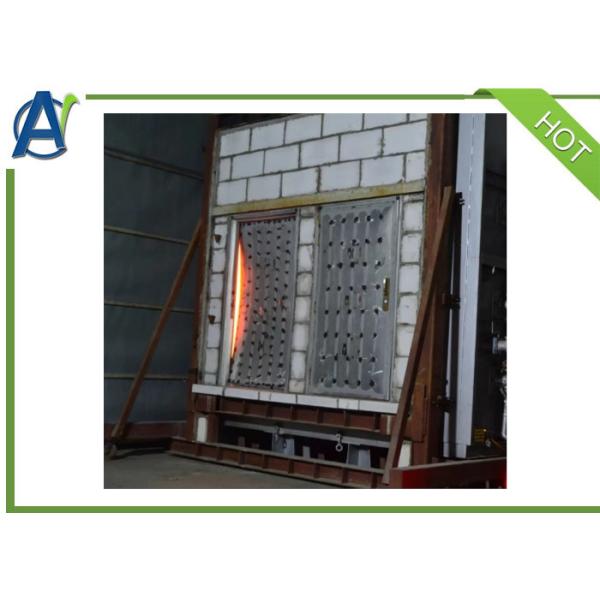

Vertical Fire Resistance Test Furnace

● Furnace name:Fire resistance test system -Vertical furnace
● The use of furnace: Fire resistance tests of single wall, various doors and partition.

  • Charging:armoured concrete slab,steel-concrete composite slab and kinds of doors and roller blinds.
  • Specification of Charging:Size of frame or wall(Maximum fire surface):3000×3000mm
  • Maximum temperature in furnace:1150℃
  • Inside dimension of furnace:3000×3000×1500mm
  • Observation hole:3 φ200mm
  • Data acquisition: types and channels

The air temperature in furnace is 8 channels

  • Gas:Liquefied petroleum gas.

Calorific value:4.18×8500KJ/m3

  • Maximum consumption of liquefied petroleum gas:260m3/h
  • Maximum air consumption:2690 m3/h
  • Air pressure:6000Pa
  • Pressure from liquefied petroleum gas to the front manifold:15000Pa
  • Burner’s name and quantity:High speed thermostat burner(Automatic ignition, flame monitoring) 8 units
  • Liquefied petroleum gas pressure before burner:5000Pa
  • Air pressure before burner:5000Pa
  • Loading and unloading method of heated workpiece:crown block
  • Outer surface temperature of furnace wall(When the inner furnace temperature is 1150℃):≤45℃+room temperature
  • 8 thermocouples in the furnace .
  • Working system:Intermittent operation, each heating is not more than 3 hours.

TIME(min)TEMP(℃)TIME(min)TEMP(℃)TIME(min)TEMP(℃)TIME(min)TEMP(℃)TIME(min)TIME(℃)TIME(min)TEMP(℃)

0

20

40

878

80

963

120

1010

200

1066

280

1121

5

538

45

892

85

971

130

1017

210

1072

290

1128

10

704

50

905

90

978

140

1024

220

1079

300

1135

15

760

55

916

95

985

150

1031

230

1086

20

795

60

927

100

991

160

1038

240

1093

25

821

65

937

105

996

170

1045

250

1100

30

843

70

946

110

1001

180

1052

260

1107

35

862

75

955

115

1006

190

1059

270

1114
