Specifications
Brand Name :
SKYLINE
Model Number :
SL-T801
Certification :
Calibration Certificate
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
10 pcs/ month
Delivery Time :
7 working days
Packaging Details :
plywood case
SKYLINE :
Desktop Tensile Strength Tester
Maximum Load :
1KN high-precision sensors from U.S.A.
Capacity choice :
200N, 500N, 1KN,200kg or less than can be self-selected
Units :
Kg, lb, N
Resolution :
1 / 50000
Power Systems :
Servo Motor
Description

Desktop Servo Control Tensile Strength Testing Machine Convenient Operation


Product Information

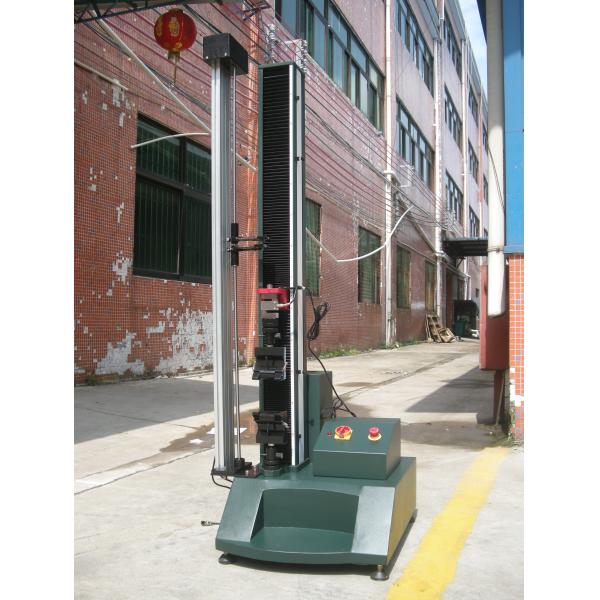

Desktop Servo Tensile Strength Tester is a simple type machine, simple structure, convenient operation, It can be tested on the operated table, Using the servo control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1KN.

Main functions
This machine can test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.


Technical parameters

Maximum Load 1KN high-precision sensors from U.S.A
Capacity choice 200N, 500N, 1KN,200kg or less than can be self-selected
Units Kg, lb, N
Measured System Load cell + HZ-2000
Accuracy of load measurement the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Resolution 1 / 50000
Power Systems Servo Motor
Power 120W
Dimension 450 × 550 × 1400mm
Weight 70kg
Power Supply 220V, 15A

What machine is used for tensile?
A universal testing machine (UTM), also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials.
