Stainless Steel Textile Testing Equipment , Perspiration Tester For Colour Fastness Test
Stainless Steel Textile Testing Equipment , Perspiration Tester For Colour Fastness Test
Stainless Steel Textile Testing Equipment , Perspiration Tester For Colour Fastness Test
Stainless Steel Textile Testing Equipment , Perspiration Tester For Colour Fastness Test
Stainless Steel Textile Testing Equipment , Perspiration Tester For Colour Fastness Test
Stainless Steel Textile Testing Equipment , Perspiration Tester For Colour Fastness Test
Stainless Steel Textile Testing Equipment , Perspiration Tester For Colour Fastness Test
Stainless Steel Textile Testing Equipment , Perspiration Tester For Colour Fastness Test
Specifications
Brand Name :
SKYLINE
Model Number :
SL-F11
Certification :
Calibration certificate
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
50 pcs / month
Delivery Time :
5 working days
Packaging Details :
Carton box
Price :
Textile Testing Equipment
Standard :
AATCC 15 , EN ISO 105 E04 , DIN 54020 , JIS L0848 , BS 1006 E04
Weight :
8 Kg
Dimensions :
210x100x160mm (L x W x H)
Acrylic Plates :
21 pcs
Brand :
SKYLINE
Material :
Stainless Steel
Description

Fabric Color Fastness Test to ISO 105 Perspirometer

Application

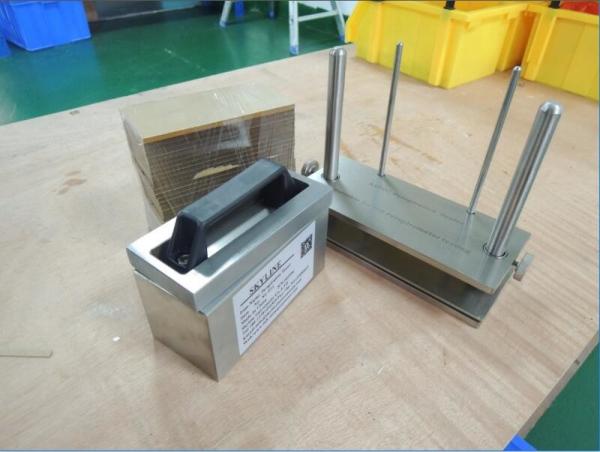

Perspiration Tester to determine colour fastness test to water, sea water, perspiration fastness in textiles and sublimation during storage. Perspiration tester consists of 2 stainless steel frame with 21 acrylic separator plates to hold 20 samples. Thus the both ISO/AATCC test methods can be done in one time. 20 plastic basins are equipped for pre-treatment of samples.

A precise oven is required.

Color Fastness of dyed or printed fabrics against perspiration is determined by exposing the fabric sample to the action of both alkaline and acidic reagents while in contact with undyed adjacent fabrics is placed between plastic plates under a fixed load inside an oven maintained at 370 centigrade. The apparatus used for this test is called the Perspirometer.

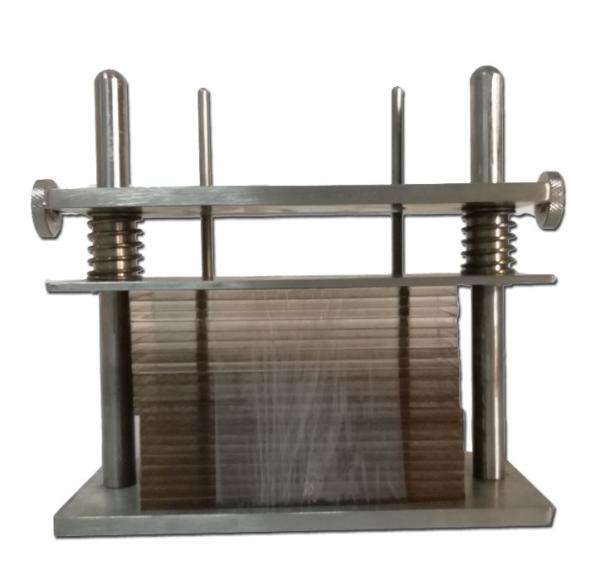

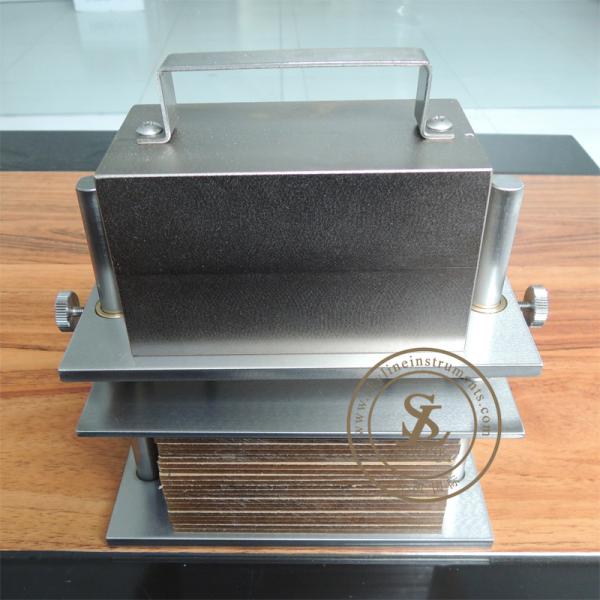

consists of a number of acrylic plates and which can be kept in suitable loading frame. The loading frame consists of two steel plates between which the acrylic plates placed. The test specimen are stitched between suitable white cloth pieces and dipped in either alkaline or acidic test solutions.

Perspirometer Included Accessories

AATCC Test Kit

AATCC weight with other parts in total 4.54kg(10lb)

Acrylic Plates (Pack of 21)

ISO Test Kit

AATCC weight with ISO extra weight and other parts in total 5kg(11lb)

Acrylic Plates (Pack of 21)

Perspirometer Standards

Perspiration AATCC 15 , EN ISO 105 E04 , DIN 54020 , JIS L0848 , BS 1006 E04

Water AATCC 107, EN ISO 105 E01 , DIN 54006 , DIN54005 , JIS L0846 ,BS 1006 E01

Sea water AATCC 106 , EN ISO 105 E02 , DIN 54007 , JIS L0847 , BS 1006 E02

Weight 12 Kg

Dimensions 210x100x160mm (L x W x H)

What is the pressure of weight is used in perspiration test?
What is the pressure of weight used in a perspiration test? The total test weight applied to the sample will be 5kg for ISO standards and 10lb for AATCC standards.
