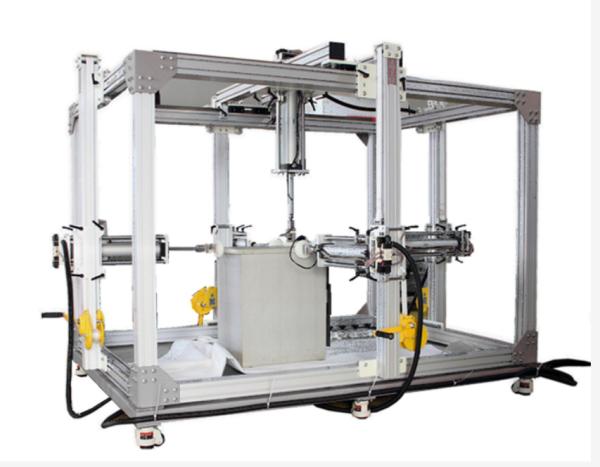

5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine
5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine
5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine
5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine
5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine
5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine
Specifications
Brand Name :
SKYLINE
Model Number :
SL-T26
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
1 pcs/ month
Delivery Time :
35 working days
Packaging Details :
plywood case
Name :
furniture testing machine
Controller :
PLC+ Touch screen
Motor :
air cylinders
Standard :
EN 527-3, EN581-3 and BIFMA X5.1, IS5967
Air supply :
7kgf/cm^2
Capacity :
2KN,4 pcs；5KN,1 pcs
Description

5 Air Cyliners PLC Control Toys Testing Equipment, Table furniture testing machine

Features

  • It equips 5 group pneumatic cylinder which is 1 set vertical device and 4 set calibrate velocity & thrust separately. Stroke is 500mm
  • Quadruplet brake of vertical device can be adjustment front and back & up and down (100mm~900mm)
  • Quadruplet brake of horizontal device can be adjustment up and down & left and right, it can cooperate with different test position.
  • It has several rows screws hole in the bottom panel of tester which is convenient to install different accessory or fixed test condition
  • It equipped the quick coupling location in front of pneumatic brake for each group which is convenient to change different load or grip.
  • Color touch screen & PLC controller, easy operate interface, display imaging and more inconvenient for operator.

This test machine is used for testing the strength and stability of tables and trollys.Can do following testing.

Strength Testing

  1. Vertical static load test
  2. Sustained load test
  3. Horizontal static load test
  4. Vertical impact test


Stability Testing:


1. Vertical stability test
2. Horizontal impact test.

Product Introduction

This machine is used for static load test and durability test of table, desk and other furniture. Each pneumatic device can work together or independently, and can also be adjusted to meet different test requirements

Test Standards

EN 12521, BS EN 15372; EN 1730; EN 581-3, EN 1728

Technical Parameters

Basic Test Frame 3x3x2m,be made of 80x80mm Alu.material
Load air cylinder TAC 5 sets of 500mm stroke air cylinders (including 4 sets of 50 diameter Horizontal cylinders and 1 set of 63 diameter vertical cylinder)
Force sensor high precision brand sensors 2KN * 5 sets
Control method PLC and LCD touch screen
Counter 0~999999 (adjustable)
Force adjust

precision pressure valve equipment with sensor to disply
Air supply 7kgf/cm^2
Power supply 1∮ AC 220V 50Hz 5A
