EN1888 Standard Toys Testing Equipment For Baby Stroller Handle Strength Durability Testing
EN1888 Standard Toys Testing Equipment For Baby Stroller Handle Strength Durability Testing
EN1888 Standard Toys Testing Equipment For Baby Stroller Handle Strength Durability Testing
EN1888 Standard Toys Testing Equipment For Baby Stroller Handle Strength Durability Testing
EN1888 Standard Toys Testing Equipment For Baby Stroller Handle Strength Durability Testing
EN1888 Standard Toys Testing Equipment For Baby Stroller Handle Strength Durability Testing
Specifications
Brand Name :
HTI
Model Number :
TC-002B
Certification :
EN 71,ISO8124
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 sets per month
Delivery Time :
15 working days
Packaging Details :
Plywood Package
Product Name :
Baby Stroller Handle Strength Durability Testing Machine
Model Name :
TC-002B
Dimension :
138x175x200cm
Comply with Standard :
EN1888
Weight :
800KG
Power :
220V 50Hz
Original Place :
Made in China
Test area: :
100x175cm
Description

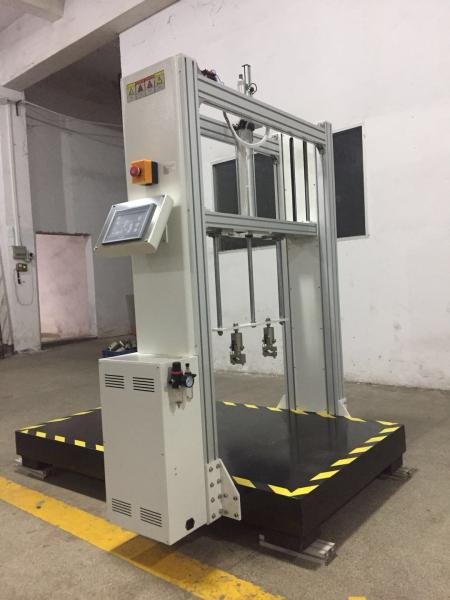

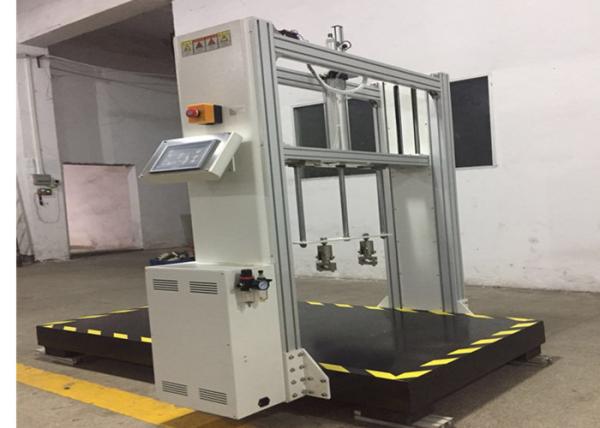

Baby Stroller Handle Strength Durability Testing Machine With EN1888 Standard

Application:

Baby Stroller Handle Strength Durability Testing Machine is suitable for hand-push Baby Carriage beyond the obstacles made by the simulation under the pressure of raising durability test, and made by CNS test.

Theory:
Alternately raise and lower the handle(s) by applying a vertical force to the handle so that the rear wheels
and front wheels in turn are raised (120 ± 10) mm, measured at the start of the test from the floor and then lowered in a controlled manner without pause.
Carry out the test for a total of 10 000 cycles at a frequency of (15 ± 2) cycles/min.
Where the downwards force necessary to lift the front wheels exceeds 450 N, carry out the test by
applying alternately a downwards 450 N force and an upwards force necessary to raise the rear wheels for 3 000 cycles at a frequency of (15 ± 2) cycles/min, then continue the test by only raising the rear wheels (120 ± 10) mm for additional 7 000 cycles at a frequency of (15 ± 2) cycles/min.

Specifications:

Display: touch-screen, PLC control
Air cylinder stroke: 200~350mm adjustable

Test frequency: 15 ± 2 cycles/min.

Test area: 100x175cm

Beam height adjust: power-driven 35cm

Test station: one position

Grip distance: 11cm to 41 cm

Height of Test wheels from ground: 120±10mm

Test pressure: 450N±5% adjustable

Test cycles: 10000 cycles
Auto counter: 0~99999times, electricity, power cut memory function
Machine dimension: 138x175x200cm

Power: AC ~220V 50Hz
Weight: About 450KG


Standard:

EN1888:2012 section 8.10.6.2.2
