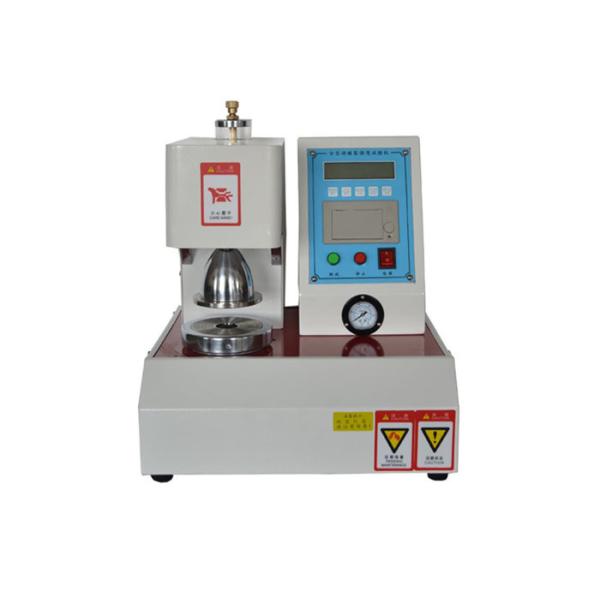

Carton Bursting Strength Testing Machine , Packaging Testing Equipment Full Automaticly
Carton Bursting Strength Testing Machine , Packaging Testing Equipment Full Automaticly
Specifications
Brand Name :
Hust Tony Instruments
Model Number :
TNJ-038
Certification :
AATCC16,169,ISO105-B02/04/06,ISO4892-2-A
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
Western Union, T/T
Packaging Details :
standard exported plywood box package
Name :
Carton Bursting Strength Testing Machine
Test range :
2-60kg/cm2 (204 ~ 6160kpa)
Dimension :
445*425*525mm
Power :
AC 220V 50Hz
Application :
Carton Bursting Strength Testing
Weight: :
70kg
Oil delivery speed :
170 ± 15ml / min
Standards :
ISO2758, ASTM D2210, TAPPI TT403, JISL1096
Description

Carton Bursting Strength Testing Machine , Packaging Testing Equipment Full Automaticly

Full-Automaticly Package Carton Bursting Strength Testing Machine

Carton Bursting Strength Test Machine Of Corrugated Box, Automatic Burst Strength Tester Price For Paper

Applications of Automatic Burst Strength Tester

This bursting strength tester is used to test the bursting strength of all kinds of paper, such as packaging materials, including plain paper, corrugated paper, toilet paper, packaging, tape, leather, packaging films, fabrics, etc. Adopt advanced microcomputer controller and digital processor, to ensure result precision. With thermal printer, to save and print out test data. Safty protection device, to ensure overload power off. It is based on the international Mullen method.

Standards of Automatic Burst Strength Tester

Technical parameters of Automatic Burst Strength Tester

Model TNJ-038
Measuring range 2-60kg/cm2 (204 ~ 6160kpa)
Accuracy ≤ ± 0.5%
Resolution 0.01kpa
Deformation error ≤ 1mm
Up and down the plate concentricity ≤ 0.25mm
Film convex pressure (9 ± 0.2) mm / (30 ± 5) kPa
Oil delivery speed 170 ± 15ml / min
Clamping mode automatic clamping
Clamping force 400kpa ~ 1200kpa (adjustable)
Weight 70kg
Dimension 445*425*525mm

Comply with standards

ISO2758, ASTM D2210, TAPPI TT403, JISL1096 / L1018 / P8112 / P8131 "paper - the determination of bursting strength.
