Furniture Laboratory Equipment For Seating Durability Testing With BIFMA X5.1
Furniture Laboratory Equipment For Seating Durability Testing With BIFMA X5.1
Specifications
Brand Name :
TONY
Model Number :
TNJ-018
Certification :
BIFMA X5.1
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 set per month
Delivery Time :
8 workdays
Packaging Details :
Plywood box
Force: :
0-1000N adjustable
Load Angle of armrest: :
10 degrees
Seat height:  :
30~65cm
Loading times:  :
0~99999 times, adjustable
Strength adjust: :
Strength adjust: pressure adjust
Beams lifting way: :
Electric lift
Description

Furniture Laboratory Equipment For Seating Durability Testing With BIFMA X5.1

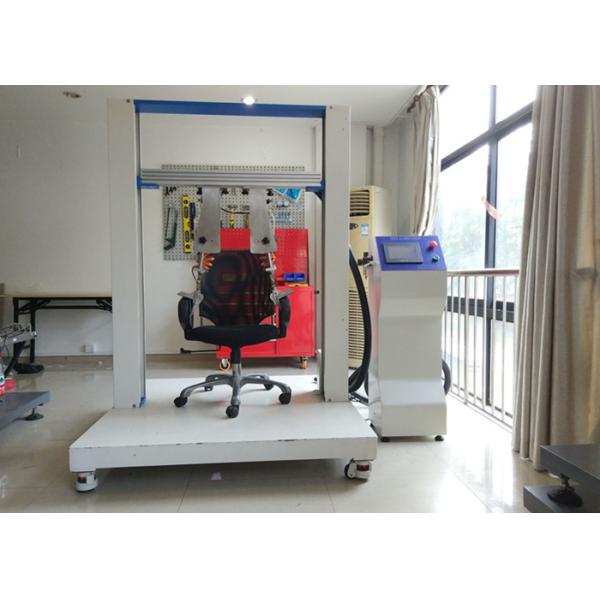

TNJ-018 Chair Armrest Durability Testing Machine


Introduction of product:


Chair Armrest Durability Testing Machine use aluminum frame, elegant appearance.
The tester is suitable used for impact testing of all kinds of furniture, such as home furniture, Hotel furniture, restaurant furniture etc. Chair Armrest Durability Testing Machine simulates furniture in process of daily use and Habits misuse, Test the durability of Armrest parts.


Technical parameters:

Force: 0-1000N adjustable 0-1000N adjustable
Load Angle of armrest: 10 degrees
Seat height: 30~65cm
Loading times: 0~99999 times, adjustable
Strength adjust: pressure adjust
Control: PLC, text display
Ar supply: Seat surface height kgf/cm^2 or above
Power: 1 AC 220V 50Hz 5A


Standards: BIFMA X5.1-2011-13 Arm Strength Test - Vertical - Static

Reference test method :
13.1 Applicability: This test applies to all chairs with arms.
13.2 Purpose of Test: The purpose of the test is to evaluate the ability of a chair and arm to withstand stresses caused by applying vertical forces on the arm(s).

13.4 Test Procedures
13.4.1 Functional Load
a) A force of 750 N (169 lbf.) shall be applied for one (1) minute.
b) Remove the force.

13.4.2 Proof Load
a) A force of 1125 N (253 lbf.) shall be applied for one (1) minute.
b) Remove the force.

13.5 Acceptance Level
13.5.1 Functional Load
There shall be no loss of serviceability. For a height adjustable arm, failure to hold its height
adjustment position to within 6 mm (0.25 in.) from its original set position as the result of the
loading is considered a loss of serviceability.
