Chair Front Rear Stability Testing Machine With Standard ANSI / BIFMA X5.1
Chair Front Rear Stability Testing Machine With Standard ANSI / BIFMA X5.1
Chair Front Rear Stability Testing Machine With Standard ANSI / BIFMA X5.1
Chair Front Rear Stability Testing Machine With Standard ANSI / BIFMA X5.1
Specifications
Brand Name :
TONY
Model Number :
TNJ-023
Certification :
BIFMA X5.1
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 set per month
Delivery Time :
8 workdays
Packaging Details :
Plywood box
Tensile force: :
20N
Seat surface loading: Max:  :
600N, cumulative
camber surface: :
R300mm,9 pins
Dimensions  :
(WxDxH): 100x140x105cm
Air source: :
6kgf/cm2 stable air source
Weight:  :
500kg
Description

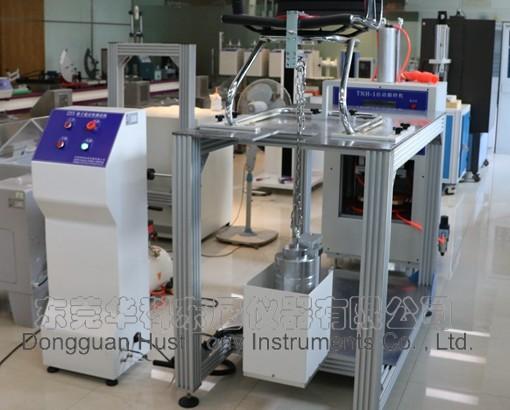

Bifma X5.1 Chair Front Rear Stability Testing Machine
TNJ-023 Chair Seats Front Stability Test Machine

Introduction of product:
This machine is suitable to test the seats (such as chairs, office chairs) front stability.
Principle: Put the test-piece on the test table, blocked the front leg, apply specified force with forward 20N applied at seat loading point, check the article tends to overturn forward or not to determine the test-piece forward stability performance.

Technical parameters of Bifma X5.1 Chair Front Rear Stability Testing Machine:

Seat surface loading: Max: 600N, cumulative
Tensile force: 20N
Loading point position: seat surface center position,60mm from front edge
Seat surface loading pad: diameter: 200mm,
camber surface: R300mm,9 pins
Loading rob: 19mm, both ends A type: sphere SR19mm B type: sharp surface 45 °
Weights basket lifting: manual control
Dimensions (WxDxH): 100x140x105cm
Weight: 500kg
Air source: 6kgf/cm2 stable air source
Standards: ANSI/BIFMA X5.1-12.4 Front Stability;EN 1022, EN 1729-2


Chair Front Rear Stability Testing Machine With Standard ANSI / BIFMA X5.1

Chair Front Rear Stability Testing Machine With Standard ANSI / BIFMA X5.1
