BS En1728 , BIFMA X5.1 Furniture Testing Machines For Chair Strength and Durability Testing
BS En1728 , BIFMA X5.1 Furniture Testing Machines For Chair Strength and Durability Testing
Specifications
Brand Name :
TONY
Model Number :
TNJ-017
Certification :
BIFMA X5.1,EN1728
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50 set per month
Delivery Time :
8 workdays
Packaging Details :
Plywood box
Impact head component weight: :
25kg
Seat height: :
30~65cm
Loading times: :
0~99999times can be set
Strength adjust: :
Pressure is adjustable
Beams lifting way: :
Electric lift
Power: :
AC 220V 50Hz 5A
Description

BS En1728 , BIFMA X5.1 Furniture Testing Machine For Chair Strength and Durability Testing

Description:

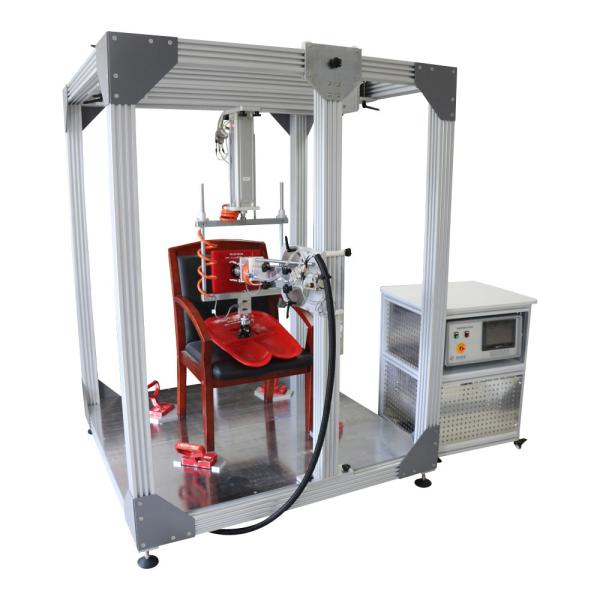

Office Chair Seat Back durability tester is used for testing the strength and durability of office chair. Made of Aluminum material frame, PLC control, easy operation; high precision force sensor for the load application.

Apparatus structure:

This tester uses aluminum alloy frame, iron and aluminum plates for the structure manufacturing. Motor part has a air cylinder operation with electronic components for operation.

Machine dimension: Length 1400mm x wide 1400mm x height 2000mm

Control box dimension: Length 640mm x wide 600mm x height 850mm

Technical parameters:

Loading Sensor: 4000N (1nos), 1000N (1nos)
Loading force for seat testing: 0-4000N (adjustable)
Loading force for back testing: 0-1000N (adjustable)
Load force solution: 1/10000
System test force accuracy: ±1%(static) ; ±5% (dynamic)
Test speed: 10~30 cycles per minute, 1-5 test cycles per 10 second (adjustable)
Loading cycle: 0~999999 adjustable
Control method: Microcomputer automatism servo control, Touch screen control
Loading method: Pneumatic linear actuator
Specimen test station: 1
Test independence: Independent control by each work station
Setting: Computer software setting
Data storage: RAM and U disc
Loading power: Motor
Test report: Make the report on computer as request
Loading force adjustment: Air pressure adjustment (300N-3500N)
Motion control: PLC control

Backrest loading height:

Manual adjustment
Dimension 140x140x200cm

Air source:

Air supply input is 0.4Mpa-0.8Mpa. (6kgf/cm^2 or above, supplied by customer themselves)
Power: 1∮AC 220V 50Hz 5A, 3KW

Standards:

EN 1728:2012 6.4 Seat static load and back static load test; EN 1728:2012 6.17 Combined seat and back durability test; BS EN 581-2 B.2.1.1 and B.2.1.2

Accessories:

 Seat loading pad 1 set; back loading pad 1set; Stationary fixture 1 set.

Spare Parts:

1. Distribution box with aluminum alloy frame x 1

2. Portable magnetic sucker x 4

3. Loading pad x 2

BS En1728 , BIFMA X5.1 Furniture Testing Machines For Chair Strength and Durability Testing
