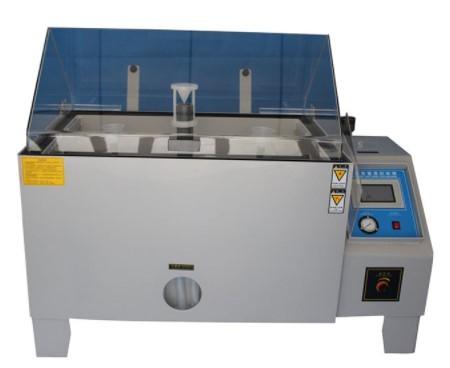

ASTM B117 2KW Salt Spray Test Chamber For Corrosion Resistance Test
ASTM B117 2KW Salt Spray Test Chamber For Corrosion Resistance Test
Specifications
Brand Name :
HTI
Model Number :
TNJ-025
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Plywood Package
Material :
SUS #304 stainless steel ,PVC
Purpose :
corrosion resistance test,salt spray test,
Model :
60L,90L,120L,160L
Product Name :
Salt spray test chamber,Salt spray chamber,Corrosion Test Chamber
Standards :
CNS: 3627, 3385, 4159, 7669, 8886; DIN EN ISO 9227 JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770，9227; ASTM B117
Power :
220V,50Hz
Control :
Button Keys or PLC
Packing :
Standard Exported Parcel
Warranty :
1 year
Description

Salt Spray Test Chamber/Salt Mist Chamber/Corrosion Test Chamber-Environmental Test Chamber

Salt spray test chamber is a test chamber that assess the ability of material and its protective layer to withstand salt spray corrosion,is relatively quick, well standardized, and reasonably repeatable.Salt spray chambers meet the international standards,such as ASTM B 117, salt spray test chamber can do following test:Neutral salt spray test (NSS test),Acetate spray test (ASS test),Salt SprayTest(SStest).

Salt spray tester adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, anti-rust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Material:

1) Laboratory using PVC sheet, thickness 5 mm, the temperature reaches 80 degree Celsius;

2) Laboratory closure with high impact acrylic sheet, 6 mm thick;

3) Supplementary bottles of reagents attached to the water level perspective with hidden windows, clean easy, not easy to break;

4) Saturated air barrel using SUS #304 stainless steel barrel high pressure barrel insulation is best;

5) Laboratory basketball adopt flat indexing frame, adjustable angle, surrounded by mist side down exactly the same place the large number of test pieces

Specification:

Inner Box Size (L× W× H) 900*600*500mm(270L);
Outside Box Size(L× W× H) 1410*800*1280mm;
Temperature Range 35 centigrade degrees to 55 centigrade degrees
Temperature Fluctuations ≤ ± 0.5 centigrade degrees
Temperature Uniformity ≤ ± 2 centigrade degrees
Temperature Precision ± 1 centigrade degrees
Test Chamber Temperature Salt Spray Method (NSS ACSS)35± 1 centigrade degrees
Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47± 1 centigrade degrees
Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees
Brine Temperature 35 centigrade degrees± 1 centigrade degrees
Spray Quantity 1.0~2.0 ml / 80cm2 / hr
PH Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume(Testing Chamber) 270L
Brine Tank Capacity 25L
Power AC220V, 10A,2KW, 50Hz
Multiple Safety Protection Devices Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories Measuring tank 1 pcs, power line 1 pcs, water inlet tube 1pcs, water outlet tube 1 pcs, gas outlet tube 1 pcs
Standards CNS: 3627, 3385, 4159, 7669, 8886; DIN EN ISO 9227
JIS: D0201, H8502, H8610, K5400, Z2371;
ISO: 3768, 3769, 3770,9227; ASTM B117

ASTM B117 2KW Salt Spray Test Chamber For Corrosion Resistance Test
