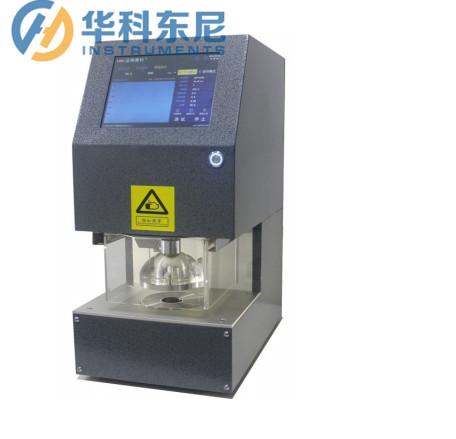

ISO 2759 Bursting Strength Test Equipment for Corrugated Board Paper Board
ISO 2759 Bursting Strength Test Equipment for Corrugated Board Paper Board
Specifications
Brand Name :
HUST Tony
Model Number :
HTZ-008C
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 set
Price :
contact saler
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
15 working days
Packaging Details :
Plywood BOX
Iterm :
Bursting Strength Test Equipment Of Corrugated Board & Paper Board
Certificate :
ISO 2759, APPITA AS, 1301.438, FEFCO no. 4, SCAN, P 25, TAPPI T807 T810
Description

Different --ISO 2759 Bursting Strength Test Equipment Of Corrugated Board & Paper Board

Application : It is suitable for bursting strength test of various kinds of corrugated board, paper board and etc

Principle
HTZ-008C is based on Mullen theory, the piston injects silicon oil into the chamber covered by
plastic membrane which contacts with the test sample continuously until the sample bulges to
break, the maximum pressure is just the result of bursting strength.
Features
  • Embedded system, remote service
  • Touch screen operation
  • 8 inch TFT LCD display parameters and results
  • Bilingual language display
  • Sample pneumatic clamping
  • Highly accurate pressure sensor inside
  • Safety mask, body protection
  • Test automatically starts and stops
  • Micro-printer prints mini-report
  • Test curve display
  • Interface: RS232
  • Supports DSM system (DSM, lab data management system)
Technical indexes
1.Test range: 250–6000 kPa ( 36–900 psi, 2.55–61.2 kgf/cm²)
2.Resolution: 0.1kPa
3.Error of reading: ±1%
4.Fluctuation of Reading: ≤1%
5.Pump flow: (170 ± 15)ml/min
6.Sample clamping pressure: 100~1400kPa, Adjustable
7.System leakage: <10%P max @ 1min
8. Upper clamp plate hole size: (31.5±0.05)mm
9.Lower plate hole size: (31.5±0.05)mm
10.Thickness: Up to 21mm.
11.Gas supply: Air, 0.6MPa-0.8MPa (self-provide)
12.Dimension: 380mm ×240 mm ×530 mm
13.Power supply: AC220V 50Hz
14.Net weight: 38kg
Standard : ISO 2759, APPITA AS, 1301.438, FEFCO no. 4, SCAN, P 25, TAPPI T807 T810.
Configuration Standard
Mainframe, silicon oil(1 bottle), plastic membrane, height gage, communication cable, calibration plug.
Optional: Micro-printer paper, DSM system.
Note: Specifications are subject to change without prior notice.
