90° Burner Angle Electronic Horizontal Flammability Testing Equipment
90° Burner Angle Electronic Horizontal Flammability Testing Equipment
90° Burner Angle Electronic Horizontal Flammability Testing Equipment
90° Burner Angle Electronic Horizontal Flammability Testing Equipment
90° Burner Angle Electronic Horizontal Flammability Testing Equipment
90° Burner Angle Electronic Horizontal Flammability Testing Equipment
90° Burner Angle Electronic Horizontal Flammability Testing Equipment
90° Burner Angle Electronic Horizontal Flammability Testing Equipment
Specifications
Brand Name :
HTI
Model Number :
HTB-004
Certification :
ISO 3795 FMVSS 302 DIN 75200 SAE J369 ASTM D5132
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 sets per month
Delivery Time :
15 working days
Packaging Details :
Strong wooden box
Power :
Electronic
Burner angle :
90°
Product Name :
Flammability Testing Equipment
Burning time :
15s
Size :
64x21x37cm
Weight :
18Kg
Description

90°Burner Angle Electronic Horizontal Flammability Testing Equipment​

Description:

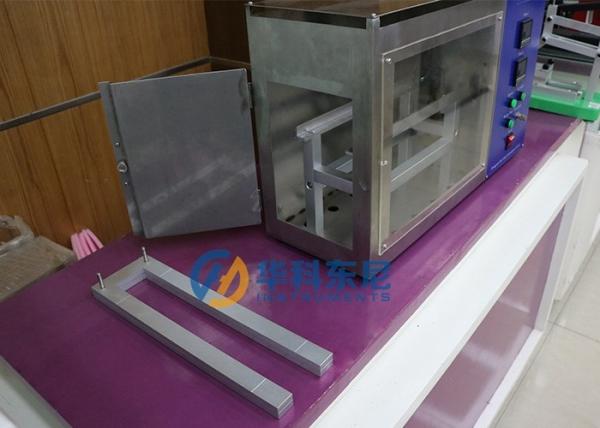

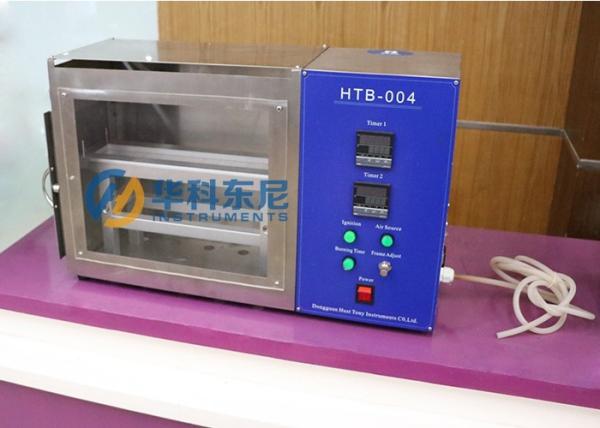

Horizontal Flammability Tester. To determine the comparative burn rates and burn resistance of textiles,

particularly those for automotive interior use. Comprises draft free stainless steel cabinet with observation

window, sample holder and door mounted burner.

Equipped with automatic Gas Control System including solenoid control gas value and automatic ignition

timer and controls.

Advantages:

1. Speciality in testing equipment

2. Various products to choose from

3. Accept customization

4. Excellent after-sale service

Specifications:

Test Chamber dimension 381x 203 x 356mm

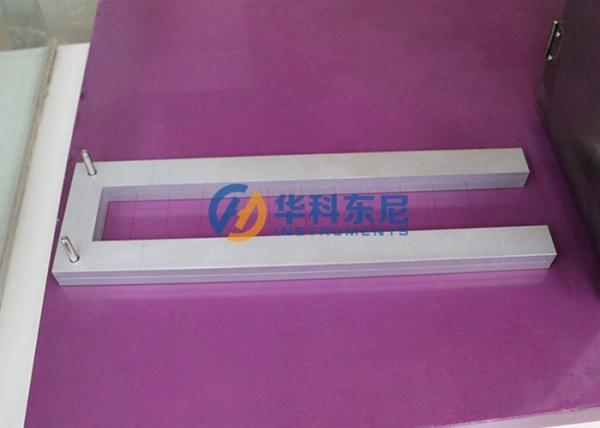

Specimens clamp U valley, frame: 330 x 50mm
Specimens 356x100mm, thick: 13mm max.
Fire nozzle diameter 9.5mm
Fire nozzle angles 90°
Length 100mm,come with adjustable hole
Flame height 38mm
Burning time 15s
Outer dimension 570*260*370mm (L*W*H)
Marker line distance 254mm
Burning gases natural gas, town gas or butane
Weight 18Kg
Power 1∮ AC 220V 50Hz 3A

Standard:

ISO3795 FMVSS302 DIN75200 SAEJ369 ASTM D5132

Accessories:

Micro gas tanks device, Micro gas cylinders, clamp 1set, power line 1pcs
