Specifications
Brand Name :
HTI
Model Number :
TNJ-026B
Certification :
QB/T 2189,GB/T 10357.5
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
150 sets per year
Delivery Time :
15 working days
Packaging Details :
Wooden package
Usage :
Hing Door Testing Machines
Power :
Electronic
Cylinder stroke :
800mm
Counter :
0-999,999
Material :
stainless steel and aluminum
Purpose :
Door Hinge Close and Open Durability Testing
Description

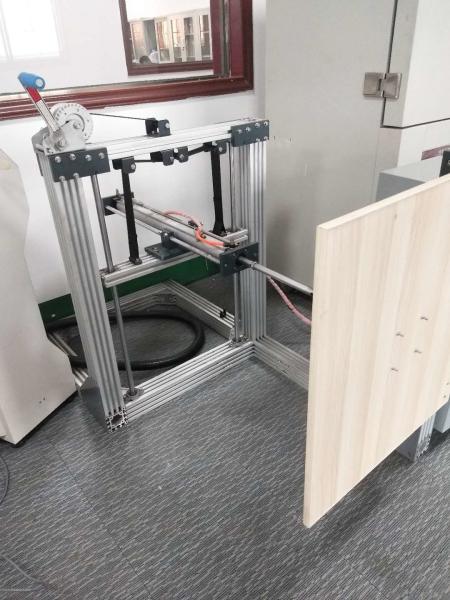

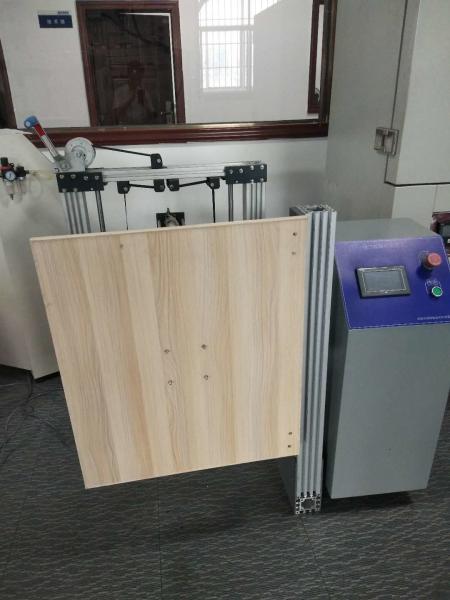

TNJ-026 Kitchen Cabinet Hinges Comprehensive Tester -Door Hinge Durability Testing

Usage: used for durability test for all kinds of kitchen cabinet door with hinges.

Principle: Connect the sliding door which installed the hinge to this tester machine, simulate its process of repeating open and close the sliding door in daily use .Repeat this process after a certain test cycles, then evaluate the hinge whether it exists damage or other effect on using.

It can be used in installed products to test, connect various sliding door and side direction firmly, no producing any acting force to effect the testing.

Lifetime reliability testing of the Hinges

No . Of Cycle to be tested 40,000 (non-stop continuous)

Parameters will be show in the machine control panel:

1) Total Closing angle

2) Soft Closing angle

3) Soft Closing angle time

4) Soft Closing force

Technical parameters:(100% match)

Parameter Specification
Opening Angle 102 °
Angle Resolution Accuracy:±0.1º
Force Resolution ±0.01 N
Angular Rotation Fast Closing:67 °
Soft Closing:>= 25 º
Test speeds 0 – 100 RPM
Door height 500 - 2600mm
Depth adjustment +3 / -1 mm
Side adjustment +2 / -2 mm
Dimensions 1000 mm x 4000mm x 2800mm
Software Features PLC control
Variable speed testing algorithm
Servo motor control
No. of door can be checked at a time 2 Doors & 4Hinges
Accessories Software and PC (Desktop included) for analysis, fixtures,power line
