Universal Toys testing instrument

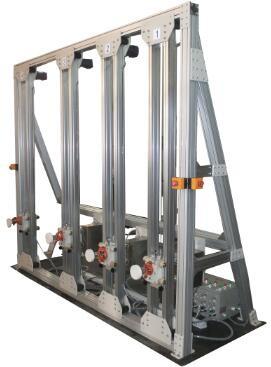

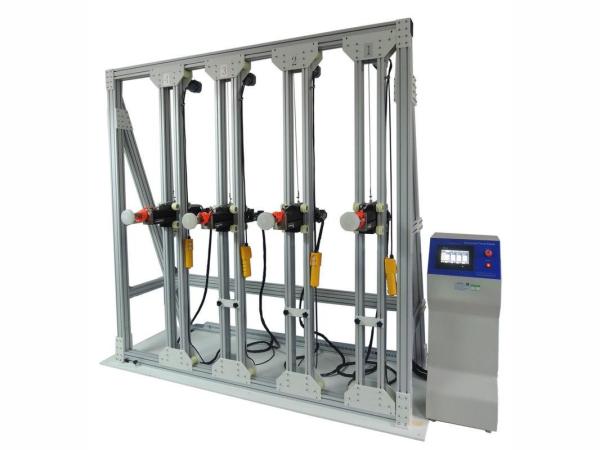

Swings and Activity Toys Stability Tester-Horizontal Thrust Tester

Purpose of equipment

This instrument is used to test the stability performance for activity toys and swings.

A horizontal force is applied at the top of the toy to simulate a child climbing on the toy, observe whether the toy tips over.

A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect, observe whether the toy tips over.

Technical specifications

Force capacity: 3kN

Force loading direction: horizontal

Force loading actuator: four stations

Force accuracy: dynamic ±5%

Force resolution: 1/1000

Loading stokes: 28cm

Force loading point height: 30~180cm

Test speed: 0~500mm/min adjustable

Rise and up speed: 800mm/min

Time: 0~9999 adjustable

Force control: closed-loop control

Motion: Servomotor

Control: PC+ professional test software

Dimension (WxDxH): 280x120x240cm

Weight: ≈650Kg

Power: 1∮ AC 220V 50Hz 3A

Standards:

IS9873-4,

ISO 8124-4 6.1.2 Stability of activity toys with a free height of fall of more than 600 mm (see 4.5.3);

ISO 8124-4 6.1.2 6.1.4 Stability of swings and other activity toys with crossbeams (see 4.7.1)

EN71-8 6.2.4 Stability of swings and other activity toys with crossbeams
