Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002
Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002
Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002
Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002
Specifications
Brand Name :
HUST Tony
Model Number :
HTP-002
Place of Origin :
china
MOQ :
1 set
Price :
contact saler
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
7 working days
Packaging Details :
Plywood BOX
Iterm :
Single Arm Computer Servo Tensile Strength Testing Equipment
Standard :
GB，ISO7500/1，JJG475-88，ASTME4，DIN5122，JISB7721/B7733，EN1002-2，BS1610， CNS9471/9470 and other standards etc.
Description

1. Deformation under defined load: Test deformation under defined load of tested sample

2. Load under defined deformation: Test load under defined deformation of tested sample

3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

4.1. Tensile Test
2. Compression Test
3. Peel Test
4. Bend Test
5. Tear Test
6. Shear Test
7. and customizable test properties

Use Video : Youtube link -- Tear test
Specification:
Capacity : 200KG (2,5,10,20,50,100,200kg for option)
Effective load range: 0.4％～100％
Load accuracy: ±0.5％ of value
Display: Computer Test Software
Units : Kg,lb,N
Data sampling frequency : 200times/sec
Load solution : 1/±250000 of max load
Load sensor : Pull and press sensor(max load)
effective test width : 150mm
Effective stroke: 500mm
Test speed : 50-500mm/min
Displacement accuracy : ±0.5％
Returning function : Manual or automatic two option, after test the up fixture will return to the
initial position
Safety device : electronic process for limit procession
Overload protection : If 10％ over than max load,machine will automatic stop for protection
Result print : Outside printer that connect to computer
Grip : tensile fixture 1 set
Machine Size : 420×350×1520mm
Machine weight : Approx 50 Kg
Power : 220V±10% 0.2KW/0.4KW

Standard accessories:
Tensile strength fixtures 1 set,
Computer test software 1 set,
English manual book 1 pcs
Net weight : 50KG, Gross weight: 65KG; Plywood box size: 50*45*160cm

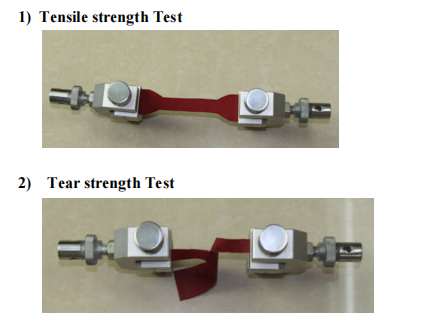

Grips:
Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002
Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002
