Furniture Comprehensive Test Machine for Desk Chair Bed BSEN 1728
Furniture Comprehensive Test Machine for Desk Chair Bed BSEN 1728
Furniture Comprehensive Test Machine for Desk Chair Bed BSEN 1728
Furniture Comprehensive Test Machine for Desk Chair Bed BSEN 1728
Furniture Comprehensive Test Machine for Desk Chair Bed BSEN 1728
Furniture Comprehensive Test Machine for Desk Chair Bed BSEN 1728
Specifications
Brand Name :
HUST Tony
Model Number :
TNJ-001
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 set
Price :
contact saler
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
15 working days
Packaging Details :
Plywood BOX
Iterm :
Furniture Comprehensive Test Machine – Desk , Chair , Bed
Certificate :
CE
Standard :
1．BIFMA X5.1 , BIFMA X5.9 ，2．BS EN 1728 , BSEN 1725 , BS 1730
Description

Use :This machine based on BIFMA X5.1, BIFMA X5.4 & BIFMA X5.9:

-Chair – vertical backrest, tablet, foot rest, arm durability for multi seating, structural durability

-Cabinet- leg/glide assembly strength test

Standard :

  1. BIFMA X5.1 , BIFMA X5.9

- Chair -Vertical backrest , tablet , foot , rest, arm , durability for multi-seating, structural durability , dan tilting durability .

- Cabinet - leg/glide assembly strength test

  1. BS EN 1728 , BSEN 1725 , BS 1730

- Chairs , Desk ,Bed .

Video , click here

Technical specifications

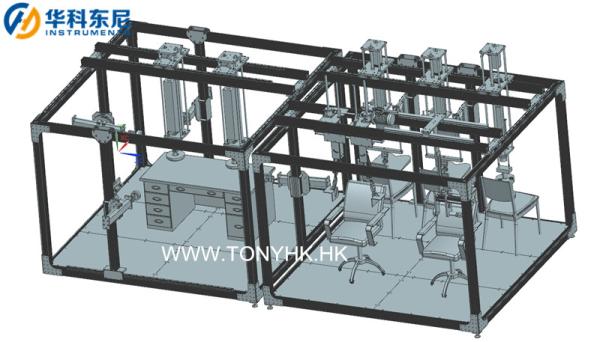

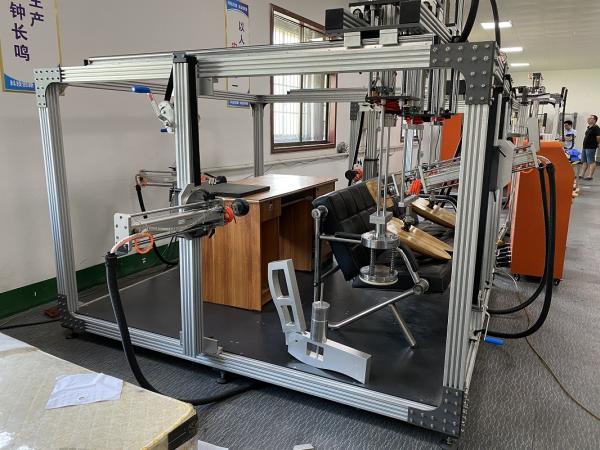

This machine use for apply load on vertical and horizontal on chair and cabinet with variety size. It is need to fulfill minimum needed as follow:

a)Frame

-6 vertical post – 4 fixed, 2 adjustable position along the frame length (3m) to hold horizontal cylinder

-5 horizontal cross bar – 4 fixed, 1 adjustable position along the frame length (3m) and height (2m) to hold vertical cylinder,

-Adjustable position& height

b)Size: 2m x 3m x 2m(H)

c)Type of cylinder: double-acting cylinder

d)Maximum force:2000Newton

e)One(1) unit horizontal Cylinder:

-To apply a horizontal force for tilting and legs/glide tests

-Attached to the pulley system (adjustable & removable )

-Adjustable height (500-1800mm) & horizontal position (along the frame length, 3m)

-Stroke length :500mm

f)1 unit vertical cylinder:

-To apply a vertical force for back rest, tablet and arm rest tests

-Adjustable position along the cross bar (2m)

-Stroke length: 500mm

g)Voltage : single phase AC 220V, 50/60Hz

h)Compress air : 6 kg /cm²

i)Control panel

-ON/OFF button

- Load display

-Cycle display- 6 digit

-Force holding time: one(1) minute (strength test)
