Specifications
Brand Name :
lixian
Model Number :
HZ-1003A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500hundred sets per month
Delivery Time :
7days
Packaging Details :
wooden
Max load :
20KN
Extensometer :
Comply with Extensometer (if need, please inform supplier before order)
Control Mode :
Force from 0.2% to 100% / from 0.4% to 100%
Warranty :
1 YEAR Warranty
Accurate Grade :
0.5 grade
Effective Measuring Range :
Force from 0.2% to 100% / from 0.4% to 100%
Software Compatibility :
Compatible With Various Software
Data Security :
Secure Data Storage And Retrieval
Testing Speed :
From 0.01 to 500mm/min, adjustable
Safety :
Electronic-limit protection
Description

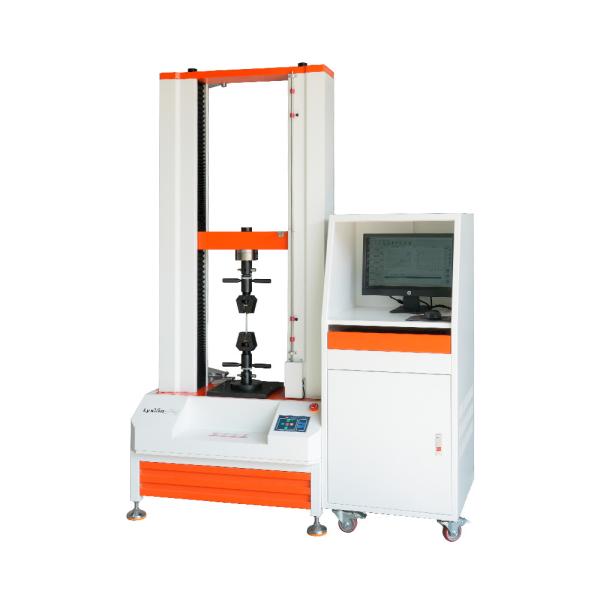

Universal Strength Testing Apparatus Tensile Testing Equipment Steel metal welding tester with capacity 20kN

It can be applied to test lots of materials in rubber tensile elongation,compression, tear, big size peel (can 90 degrees and 180 degrees) and other mid-force mechanical test(20KN), such as tires, belt, shoes, plastic, film,acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons, thread, spring, wood, medicine packaging materials, tapes etc.

SPECIFICATIONS

Max load 20KN
Extensometer Comply with Extensometer (if need, please inform supplier before order)
Control Mode Force from 0.2% to 100% / from 0.4% to 100%
Weight 350KG
Accurate Grade 1 grade / 0.5 grade
Effective Measuring Range Force from 0.2% to 100% / from 0.4% to 100%
Load Sensor Basic configuration sensor max load: one
Effective Test Width 420mm (can be increased the tensile space according to customers requirement )
Effective Tensile Stoke 800mm (can be increased the tensile space according to customers requirement )
Testing Speed From 0.01 to 500mm/min, adjustable
Displacement Accuracy Tolerance:±0.5% / tolerance: ±0.2%
Safety Electronic-limit protection
Overload Protection Overload 10%, automatic protection
Machine Dimension 80x55x220cm (L*W*H)
Motor Taiwan “Delta” servo motor and drive
Power Supply 220V , 50HZ or according to the requirement

Universal Strength Testing Apparatus Tensile Testing Equipment Steel metal welding tester with capacity20kN

Universal Strength Testing Apparatus Tensile Testing Equipment Steel metal welding tester with capacity20kN

Computer Type Universal Testing Machine HZ-1003A.p...

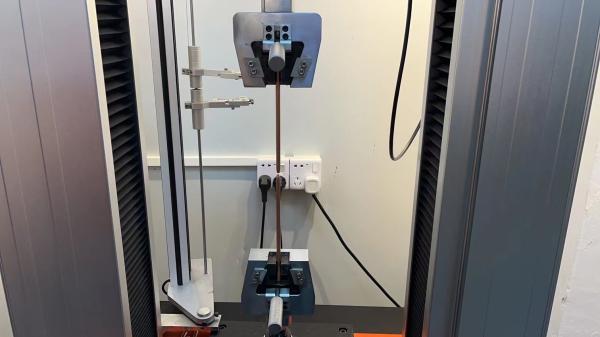

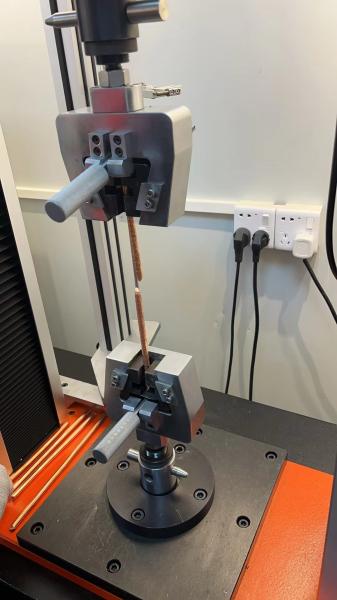

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.
