CE Full Spectrum Desktop Xenon Test Equipment Air Cooled RHISO105B02 Standard
CE Full Spectrum Desktop Xenon Test Equipment Air Cooled RHISO105B02 Standard
CE Full Spectrum Desktop Xenon Test Equipment Air Cooled RHISO105B02 Standard
CE Full Spectrum Desktop Xenon Test Equipment Air Cooled RHISO105B02 Standard
CE Full Spectrum Desktop Xenon Test Equipment Air Cooled RHISO105B02 Standard
CE Full Spectrum Desktop Xenon Test Equipment Air Cooled RHISO105B02 Standard
Specifications
Brand Name :
lixian
Model Number :
HZ-2011
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiate
Delivery Time :
7 days
Packaging Details :
wood
certification :
CE/ASTM/ISO
Temprature range :
RT+10~80 celsius
Testing room Capacity :
500*600*500mm
Humidity range :
65%~98% RH
Sensor :
Platinum resistance; Pt100Ω/mv
Power :
Electronic
Spectral wavelength :
290nm~800nm(550w/m2)
Light source :
Full spectrum xenon lamp (air-cooled)
Description

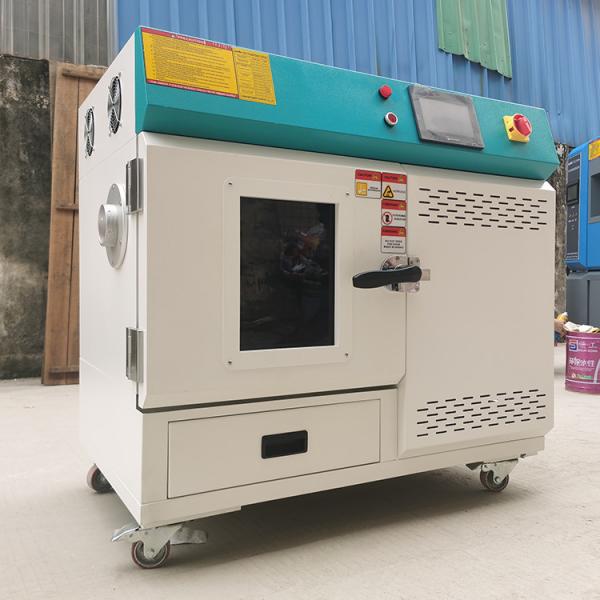

Desktop Xenon Test Equipment Chamber Air-cooled RHISO105B02 Standard With Full Spectrum Xenon Lamp and CE

Xenon Lamp Chamber is a comprehensive climate testing machine, in addition to climatic aging test, the light fastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition.
Xenon Lamp Chamber Universal Standard IEC 68-2-9, Basic Environmental Testing Procedures; ISO 4892-1, Plastics-Methods of exposure to laboratory light sources ; ASTM G151,General Guidelines for Exposure of Nonmetallic Materials; ASTM G155, Xenon-Arc Test Apparatus for Exposure of Nonmetallic Materials. GB/T 16422.1 Automobile Parts SAE J2412, Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus SAE J2527, Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Xenon-Arc Apparatus QB/T 2727, ASTM D7356, Standard Test Method for Accelerated Acid Etch Weathering of Automotive Clearcoats.
Xenon Lamp Chamber Main functions:
Xenon Arc Test Chambers make the samples exposed to the high temperature and alternating back to the circle of light and moisture environment to test the materials. This machine use xenon lamp tube to simulate the sunlight radiation, and use condensation water and spray water to simulate the dew and rain. This instrument only use a few days or weeks time, to realize the condition or the parts aging damage state in outside environment in few months or years. Including fade, color change, fracture, crack, wrinkle, foaming, embrittlement, strength reduction, oxidization and so on.

Xenon Lamp Chamber Corresponding standard:
ASTM G155-05a Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials1

Xenon Lamp Chamber Applicable industries:
Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Xenon Lamp Chamber Technical parameter:
Model
Testing room D×W×H
500*600*500mm
Index
Temperature range
RT+10°C~80°C
Humidity range
65～98%R·H
Spray time
1～9999min, adjustable
Spray cycle
1-240min, interval adjustable
Spectral wavelength
290nm～800nm (60w/m2)
Light source
Xenon lamp (air-cooled)
Xenon lamp power
1kw, 6kw (longevity: 1600H)
Temperature and
humidity control
Time controller
Import controller from Moeller
Accurate range
Temperature: ±0.1°C / humidity: ±0.1°CR·H
Sensor
Platinum resistance Pt100Ω/mv
Heating system
Independent system, nickel chromium alloy electric heating type heater
Humidity system
Stainless steel, external Isolated humidifier
Blackboard temperature
Bimetal thermometer blackboard 55°C~75°C
Water supply
Humidification water supply with automatic control, xenon lamp cooled by water recycling
Temperature controller
Import controller
Humidity
Irradiation: 30%~65%RH darkly: up to 90%RH
Cycle system
Low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel
Material
Outside material
Advanced spray color plate /SUS304 stainless steel
Inside material
SUS304 stainless steel
Sample holder material
SUS304 stainless steel
Insulation
High and low temperature aging of silicone rubber
Standard
A set of radiation-proof glass window, dynamic testing sample shelf 1, xenon lamp tube 2
Protector
Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection.
Power
AC380V±10% 50±0.5HZ, Three-phase five-wire system
Environmental temperature
±5°C～+30°C ≤85%R·H
