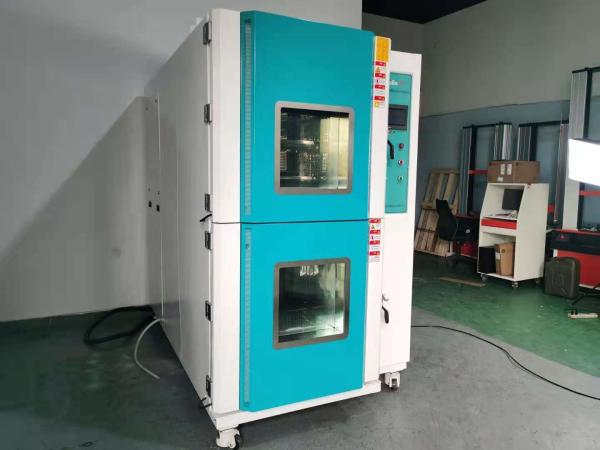

Industry / Machinery Thermal Shock Test Chamber with Vertical Transfer of Specimens
Industry / Machinery Thermal Shock Test Chamber with Vertical Transfer of Specimens
Industry / Machinery Thermal Shock Test Chamber with Vertical Transfer of Specimens
Industry / Machinery Thermal Shock Test Chamber with Vertical Transfer of Specimens
Industry / Machinery Thermal Shock Test Chamber with Vertical Transfer of Specimens
Industry / Machinery Thermal Shock Test Chamber with Vertical Transfer of Specimens
Specifications
Brand Name :
lixian
Model Number :
HZ-2012A
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7 days
Packaging Details :
wood
Standard :
GB ASTM AISI DIN BS,DIN,BS,ASTM,ISO
System :
2-zone transition by vertical transfer of specimens
Material :
Stainless steel
Size :
Customized size
Temprature range :
-77 degree ~+205 degree
Corresponding standard ： :
SJ/T10187-91Y73, SJ/T10186-91Y73, IEC68-2-14
Application :
Industry,Machinery Parts,Auto Part
Dimensions :
Customized Sizes
Service :
OEM ODM
Color :
Customer Required
Description

Temperature Thermal Shock Environmental Test Chamber Climatic Test Chamber For Reliability Test -77 Degree ~+205 Degree

Thermal Shock Test Chamber Summary:
The thermal shock test chamber, also known as the high and low temperature impact test chamber, is known as the cold and thermal impact machine in Taiwan.
Thermal Shock Test Chamber Specification:
Model
HZ-2012 Water-cooled Thermal Shock Test Chamber
System
2-zone transition by vertical transfer of specimens
Performance *1

Test area
Hot exposure range
＋ 60℃ to ＋ 205℃
Cold exposure range
−77℃ to 0℃
Temp. fluctuation *2
± 1.0℃
Hot chamber
Pre-heat upper limit
＋ 205℃
Heat-up time *3
Within 90 min from ambient temp.
to ＋ 200℃ (Setting: ＋ 205℃)
Cold chamber
Pre-cool lower limit
−77℃
Pull-down time *3
Within 90 min from ambient temp. to −77℃ (Setting: −77℃)

Ambient recovery

Recovery conditions
・Hot exposure: ＋150℃ to max. ＋ 55℃
・Ambient temp.: ＋ 23℃
・Specimen: Plastic molded ICs, 10 kg
Ambient temp. recovery time
Within 90 min
Test area

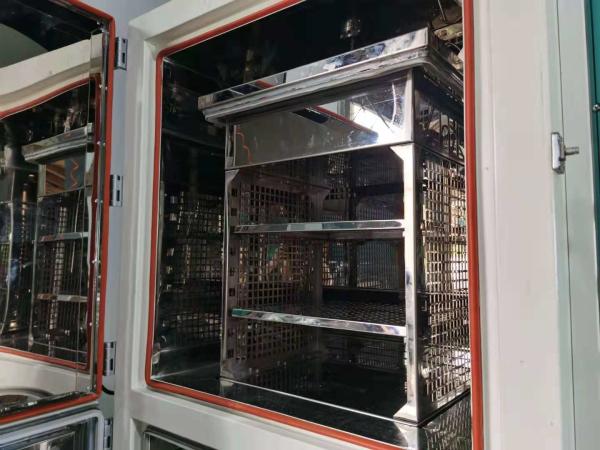

Shelf brackets on 2 levels (up to 4 baskets can be installed)
Elevating unit
Power slider (250W)
Noise level *10
Max. 65 dB
Exhaust heat rate
12600 kJ/h (3000 kcal/h)
Exhaust air volume
250m3/h
Thermal Shock Test Chamber Main function:
Used in electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials, plastics, etc., defense industry, aerospace, military industry, BGA, PCB base board, electronic chip IC, semiconductor ceramics and polymer materials The physical change, testing the material's repeated tensile force against high and low temperature and chemical changes or physical damage of the product in thermal expansion and contraction, can confirm the quality of the product, from precision IC to heavy mechanical components, no one Ideal test tool without it.
Thermal Shock Test Chamber The difference between two boxes and three boxes:

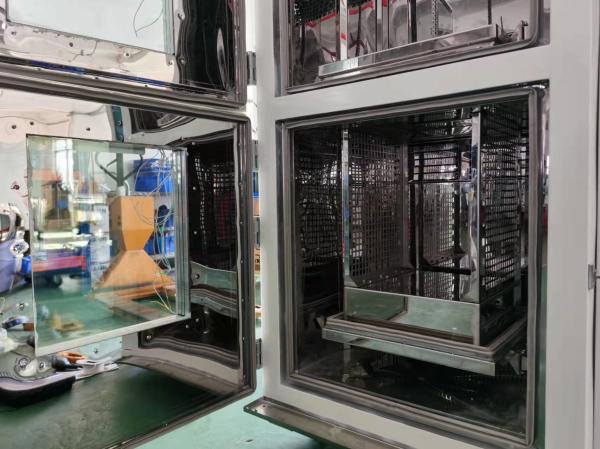

The two slots are composed of a cold box and a hot box, the box does not move, and the sample is tested in the manner that the hanging bar is switched between the cold box and the hot box. The three tanks are composed of a cold box, a hot box and a test box, and are tested by means of air flow conversion of the object to be tested and the cold box and the hot box.
Thermal Shock Test Chamber Application industry:
Applicable to aviation, military, ship, electrician, electronics, instrumentation; medical equipment; civil nuclear energy; colleges and universities; research institutes; commodity inspection and arbitration, technical supervision departments; building materials ceramics; petrochemical products, complete machines and parts High and low temperature impact test.
Industry / Machinery Thermal Shock Test Chamber with Vertical Transfer of SpecimensIndustry / Machinery Thermal Shock Test Chamber with Vertical Transfer of Specimens
Industry / Machinery Thermal Shock Test Chamber with Vertical Transfer of Specimens
