Tensile Strength Testing Machine For Terminal 2ton Servo Motor Touch Screen Controlled
Tensile Strength Testing Machine For Terminal 2ton Servo Motor Touch Screen Controlled
Tensile Strength Testing Machine For Terminal 2ton Servo Motor Touch Screen Controlled
Tensile Strength Testing Machine For Terminal 2ton Servo Motor Touch Screen Controlled
Tensile Strength Testing Machine For Terminal 2ton Servo Motor Touch Screen Controlled
Tensile Strength Testing Machine For Terminal 2ton Servo Motor Touch Screen Controlled
Specifications
Brand Name :
lixian
Model Number :
HZ-1010A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiate
Delivery Time :
7 days
Packaging Details :
wood
Effective force range :
0.4％～100％ (0.5grade)
Effective test width :
390mm (can be enlarge as customer request)
Resolution :
1/200000
Warranty :
1 Year
Application :
Terminal
Data Analysis Software :
Windows
Load Capacity :
20kN
Type :
Universal Testing Machine
Accuracy :
0.5%
Control System :
PLC
Display :
LCD
Power Supply :
AC220V
Safety Protection :
Overload Protection
Description

Tensile Strength Testing Machine for Terminal 2ton Servo Motor Meet Test Method GB/T16491-1996 Touch Screen Controlled

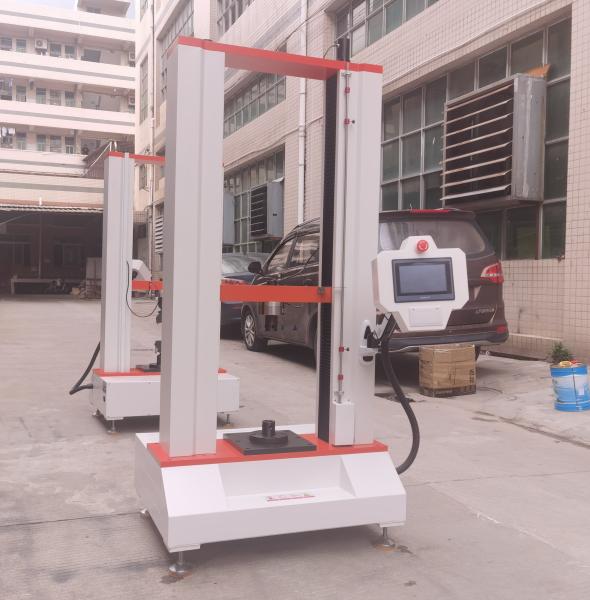

HZ-1010A Touch Screen Controlled Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.
Universal Testing Machine corresponding standard :GB/T16491-1996
Specification
Brand Name
lixian
Model Number
HZ-1010A Universal Testing Machine
Power
Electronic
Certification
CE/ASTM/ISO/ROSH
Load cell
2ton (from U.S.A.)
Accuracy of load measurement
the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Displacement
400,500,600mm
Data sampling frequency
200 times/sec
Power supply
AC 220V single-phase
Displacement resolution
0.001 mm
Resolution
1/50000
Powre
400W
Machine size
1200*530*1800mm(length * width * height)

Tensile Strength Testing Machine For Terminal 2ton Servo Motor Touch Screen Controlled

Tensile Strength Testing Machine For Terminal 2ton Servo Motor Touch Screen Controlled

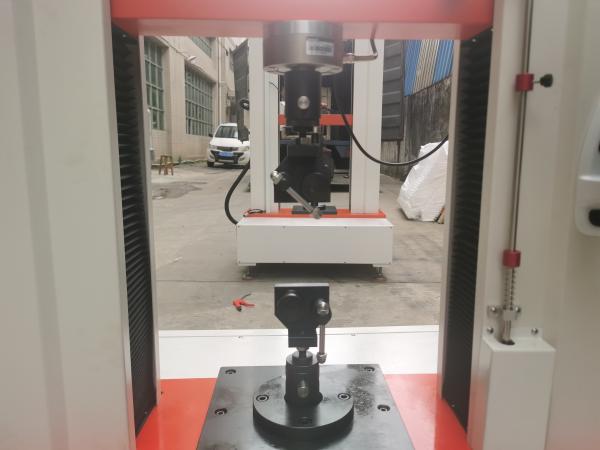

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23year.
.Touch Screen Controlled Universal Testing Machine ...
