2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight
2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight
2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight
2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight
2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight
2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight
Specifications
Brand Name :
lixian
Model Number :
UTM-HZ-D01
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiate
Delivery Time :
7 days
Packaging Details :
wood
Product name :
Utm Grips
Max. Capacity :
2KN
Specimen Width :
78mm
Grip Weight :
1600g
Grip Material :
Steel
Temperature Limits :
-30°c~+200°c
Min. Load Cell :
200N
Applicable Adapter :
HZ-02
Application :
Textile / Rubber / Plastic
warranty :
1year
Description

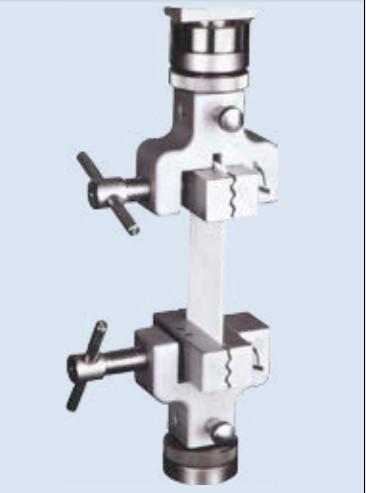

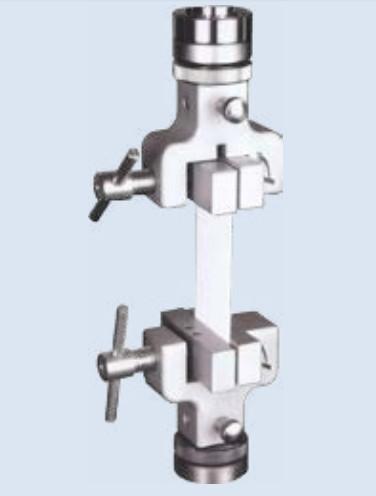

Universal Testing Machine UTM Clamp Tensile Tester Grips and Compression Tester Fixture

Tensile machine can test different sample materials, fixture, the reason is that can be equipped with different tensile machine fixture by force in sample making tension tester can test samples of all kinds of force values such as stretching, stretching, compression, shear, tear, peel, such as mechanical properties, the fixture is one of the most important parts of tensile machine, Different materials need to choose different fixtures to ensure the accuracy of the test, if according to the different power sources can be divided into: manual fixture, pneumatic fixture and hydraulic fixture. The former is completely rely on artificial operation to clamp the style and the latter is the application of pneumatic principle and hydraulic principle will clamp the style, generally speaking, the price of manual fixture is not hydraulic fixture and pneumatic fixture high.

Model UTM-HZ-D01A UTM-HZ-D01D UTM-HZ-D01G UTM-HZ-D020


2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight

2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight

2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight

2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight
Max. Capacity 2KN 2KN 2KN 2KN
Specimen Width 78mm 78mm 78mm 60mm
Specimen Thickness 0.2~5mm 0.2~5mm 0.2~5mm 0.2~5mm
Grip Weight 1600g 1600g 1600g 2142g
Grip Material Steel Steel Steel Steel
Jaw Face Crosshatch Rubber Faced Waved -
Temperature Limits -30°c~+200°c -30°c~+200°c -30°c~+200°c 0°c~+200°c
Min Load Cell 200N 200N 200N 200N
Applicable Adapter HZ-02 HZ-02 HZ-02 HZ-02
Application Textile / Rubber / Plastic

Paper / Textile / Rubber

/ Plastic

 Textile Textile / Plastic
Other Spec. HZ-D01B: A=50.8mm HZ-D01C: A=25.4mm HZ-D01E: A=50.8mm HZ-D01F: A=25.4mm HZ-D01H: A=20.8mm HZ-D01I: A=25.4mm -

Diagram

2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight

2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight

2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight

2KN UTM Tensile Tester Grips In Textile / Rubber / Plastic 1600g Grip Weight

Lixian UTM Grips series-2020.pdf
