Computer Servo Tensile Testing Machine 20 Ton UTM Range Of 0.001~500mm/Min 0.5 Grade Accuracy
Computer Servo Tensile Testing Machine 20 Ton UTM Range Of 0.001~500mm/Min 0.5 Grade Accuracy
Computer Servo Tensile Testing Machine 20 Ton UTM Range Of 0.001~500mm/Min 0.5 Grade Accuracy
Computer Servo Tensile Testing Machine 20 Ton UTM Range Of 0.001~500mm/Min 0.5 Grade Accuracy
Computer Servo Tensile Testing Machine 20 Ton UTM Range Of 0.001~500mm/Min 0.5 Grade Accuracy
Computer Servo Tensile Testing Machine 20 Ton UTM Range Of 0.001~500mm/Min 0.5 Grade Accuracy
Specifications
Brand Name :
lixian
Model Number :
HZ-1001
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets/ month
Delivery Time :
7 days
Packaging Details :
Standard safety export woodcase
Max load :
20ton
Resolution :
1/250000
Load cell :
Basic configuration：one piece( max load)
Range of testing speed :
0.001~500mm/min
Accuracy of displacement measurement :
Tolerance: ±0.5%/ tolerance: ±0.2%
Test standard :
ASTM D412, ASTM D638, ISO37 etc
Accuracy :
0.5grade
fixture :
A set of tensile fixture
Data Acquisition :
Real-time Data Acquisition
Display :
LCD Touch Screen
Max Force :
200kN
Power Supply :
AC 220V/50Hz
Product Name :
Universal Testing Machine
Safety System :
Emergency Stop
Software :
Test Software
Test Type :
Tensile, Compression, Bending, Shear, Peel, etc.
Description

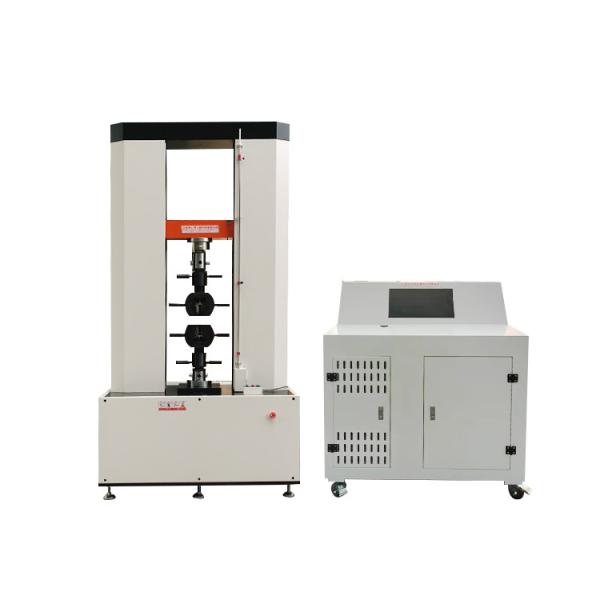

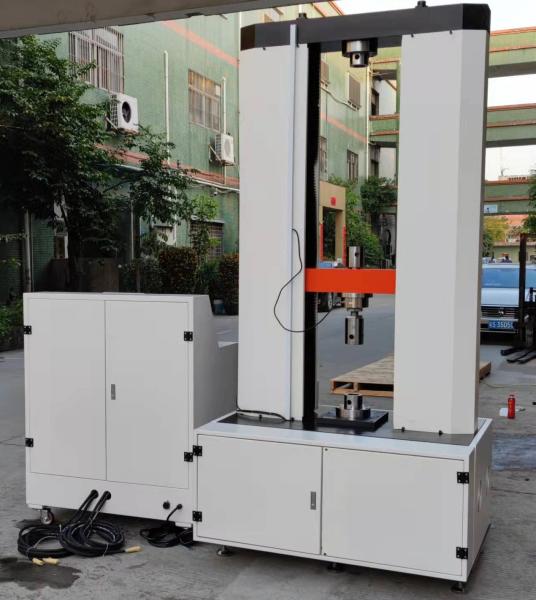

Computer Servo Tensile Testing Machine 20 Ton UTM Range of testing speed 0.001~500mm/min 0.5 Grade Accuracy

HZ-1001 Computer Servo-type Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement.

Model Number
HZ-1001 Universal Testing Machine
Power
Electronic
Product name
Computer Servo-typeUniversal TestingMachine
Maximum load
20ton option
Accurate grade
0.5 grade
Measuring accuracy
Display the value ±1%/Display the value±0.5%
Range of testing speed
0.001~500mm/min
Accuracy of displacement measurement
Tolerance: ±0.5%/ tolerance: ±0.2%
Testing platform moving device
Fast /slow two speeds to control,can jog
Overload protection
Overload 10%,automatic protection
Fixture
A set of tensile fixture
Power supply
220V, 50HZ

Universal Testing Machine This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 20ton.

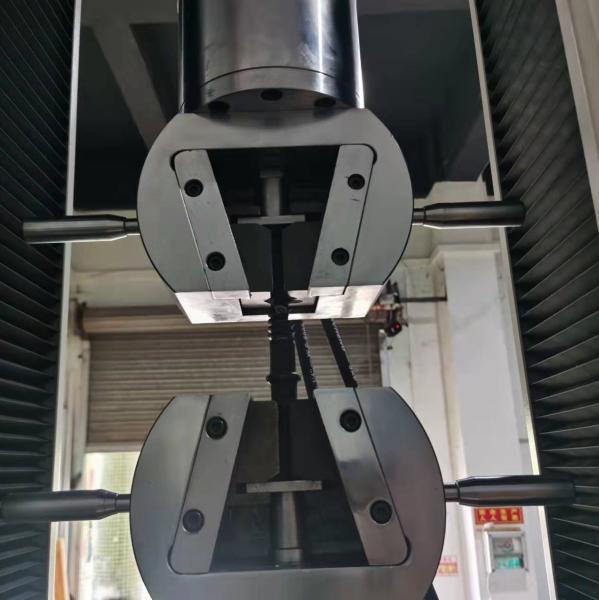

UTM Fixture

Tensile machine grips is an indispensable part of the Universal Testing Machine . Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23year.
.Computer Servo Universal Test Machine HZ-1001A.pdf...

Universal Testing Machine This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 20ton.
