ISO7176 Wheelchair Stroller Tester Anticorrosive Multi Function
ISO7176 Wheelchair Stroller Tester Anticorrosive Multi Function
Specifications
Brand Name :
lixian
Model Number :
HZ-1227
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiate
Delivery Time :
7 days
Packaging Details :
wood
MODEL :
HZ-1227
Roller Diameter :
ø250 mm x 2 group
Roller Length :
1000 mm
Test Speed :
1.0±0.1 M/s
Test rotational speed: :
roller can be in any 10 ring turns at an average speed of 1.0 + / - 0.1 M/s
Support structure :
the extruded aluminum frame combination
Test Model :
(Conform to the ISO7176-11 standard)
Weight :
25㎏, 50㎏, 75㎏, 100㎏ Back, feet, seats
Sprinkler system :
has the sprinkler system simulation wet road test. Flow 4 ml/s
Impact block  :
with ISO7176
Description

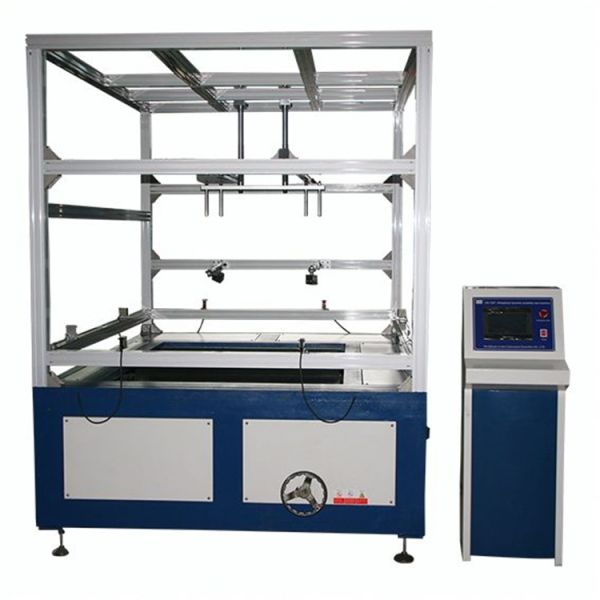

Stroller Tester Wheelchair Dynamic Durability Test Machine HZ-1227 With ISO7176

Equipment Summary:
Wheelchair Dynamic Durability Test Machine HZ-1227 executable electric wheelchairs and manual wheelchairs road test.

Technical Parameter:
Roller Diameter ø250 mm x 2 group
Roller Length 1000 mm
Test Speed 1.0±0.1 M/s
Test rotational speed: roller can be in any 10 ring turns at an average speed of 1.0 + / - 0.1 M/s
Support structure the extruded aluminum frame combination
Test Model (Conform to the ISO7176-11 standard)
Weight 25㎏, 50㎏, 75㎏, 100㎏ Back, feet, seats
Sprinkler system has the sprinkler system simulation wet road test. Flow 4 ml/s
Impact block with ISO7176
specification: length 40mm

◆ Each cylinder to 30 ° position drill a impact block mounting hole position
◆ The drum surface mining embossing
◆ Roller adopt chain transmission mode
◆ Roller adopt antirust surface treatment
◆ The distance between roller center is about 395 _1100 ㎜ adjustable (or designated)
◆ The wheel spacing adjustment is adopted handwheel quick adjustment method
◆ Electronic six digits counter in a group
◆ Structure body damage sensing stop with two groups
◆ Motor speed table with a group
◆ Electronic timer with a group
◆ Electromagnetic clutch with a group
◆ Test model: : (with ISO7176-11 standard)
◆ Safety device: 1.Emergency stops 2.Over current then automatic stop device 3.
The test installation position deviation then detect stop automatically
◆ Reluctance brake a group can simulate slope control
◆ Control range:0 °ø15 °

ISO7176 Wheelchair Stroller Tester Anticorrosive Multi Function
