Vulcanized 2m/s Rubber Testing Machine , Antirust Low Temperature Brittleness Tester
Vulcanized 2m/s Rubber Testing Machine , Antirust Low Temperature Brittleness Tester
Vulcanized 2m/s Rubber Testing Machine , Antirust Low Temperature Brittleness Tester
Vulcanized 2m/s Rubber Testing Machine , Antirust Low Temperature Brittleness Tester
Specifications
Brand Name :
Lixian
Model Number :
HZ-7004B
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000~2000/ per set
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 sets /per month
Delivery Time :
5~8 days
Packaging Details :
Standard export wooden case
Model :
HZ-7004B
Test Temperature :
-60℃--0℃
Impact Speed :
2m/s ±0.2m/s
Temperature Fluctuation :
＜±0.5℃
Distance from the center of the impactor to the lower end of the holder :
11±0.5mm
Shape size (length * width * height) :
1100*800*800mm Exposed cylinder fitting height：500
Description

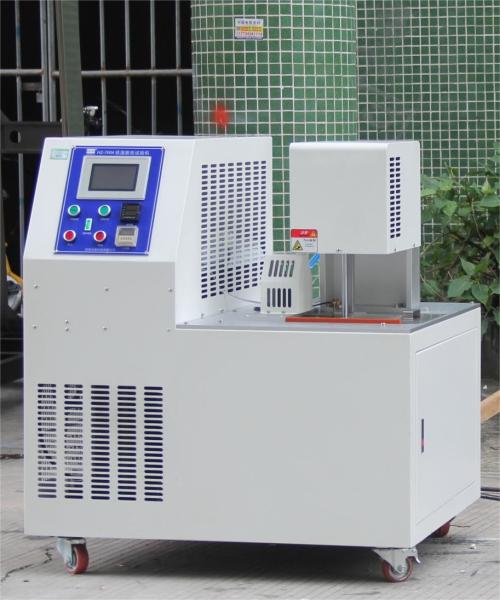

HZ-7004B Vulcanized Rubber Low Temperature Brittleness Tester

Low Temperature Brittleness Tester Equipment Overview:
HZ-7004 touch screen vulcanized rubber low temperature brittleness tester is to determine the highest temperature, that is, brittle temperature, when the vulcanized rubber specimen is damaged by impact under specified conditions. The performance of non-rigid plastics and other elastic materials under low temperature conditions can be compared. The brittleness temperature and low temperature properties of different rubber materials or formulations can be measured. Therefore, it is necessary to examine the quality of materials and their products and control the production process.

Low Temperature Brittleness Tester Application Industry:
Rubber Industry

Low Temperature Brittleness Tester Technical parameter:

Model

HZ-7004B

Test Temperature

-60℃--0℃

Impact Speed

2m/s ±0.2m/s

temperature fluctuation

＜±0.5℃

Distance from the center of the impactor to the lower end of the holder

11±0.5mm

Shape size (length * width * height)

1100*800*800mm
Exposed cylinder fitting height:500

Inner Chamber size (long * width * height)

300*250*400mm


Low Temperature Brittleness Tester Test Standard:

  • GBT 5470 / 2008 standard for the determination of embrittlement temperature
  • ISO 812 Rubber vulcanized or thermoplastic-Determination low temperature brittleness​

​Low Temperature Brittleness Tester Device Principles :

The equipment pushes the specimen into the freezing medium through the main cylinder driving holder, and after holding it for a certain time, lift the holder, then the secondary cylinder controls the impact process, observes the damage degree of the sample, and passes the repeated test. The minimum temperature of at least two samples without failure and the maximum temperature of at least one sample are determined. If the difference between the two results is not greater than 1 ℃, the test is finished.

Rubber low temperature brittleness testerHZ-7004.p...

Low Temperature Brittleness Tester Detailed Images

Vulcanized 2m/s Rubber Testing Machine , Antirust Low Temperature Brittleness Tester

Vulcanized 2m/s Rubber Testing Machine , Antirust Low Temperature Brittleness Tester



Lixian Instrument owned CE/ISO/ASTM/ROSH/UL certification, and have exported to more than 70 countries like the USA, Germany,South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on. Lixian Instrument have a professional R & D team and a reliable quality management system, which introduced the CNC processing center and CNC lathe and other advanced equipment in 2010, successfully obtained the CMC measurement certificate and passed ISO 9001 system authentication.
