Rustproof Vertical Balancing Machine
Rustproof Vertical Balancing Machine
Rustproof Vertical Balancing Machine
Rustproof Vertical Balancing Machine
Rustproof Vertical Balancing Machine
Rustproof Vertical Balancing Machine
Specifications
Brand Name :
lixian
Model Number :
HZ-9701A
Certification :
ce
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7 days
Packaging Details :
wood
Max Mass of Workpiece(kg) :
1.6， 5， 5， 16， 20
Distance Between Two Support Bearings (mm) :
20-550, 40-550
Motor Power (kw) :
0.25
Balance speed (r/min) (when dragging workpiece diameter Ø100) :
400-3000,frequency conversion stepless speed regulation
400-3000,frequency conversion stepless speed regulation :
0.25
Minimun achieveable residual unbalance(gmm/kg :
emar≤0.3 emar≤0.5
Unbalance reduction rate (%) :
URR≥95%
Description

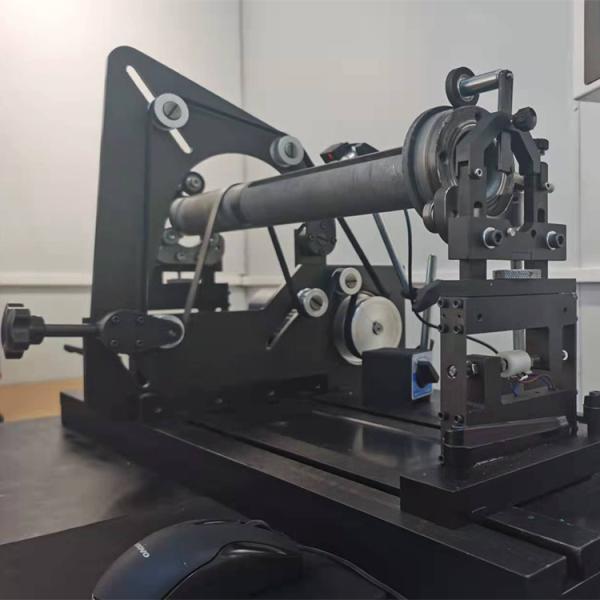

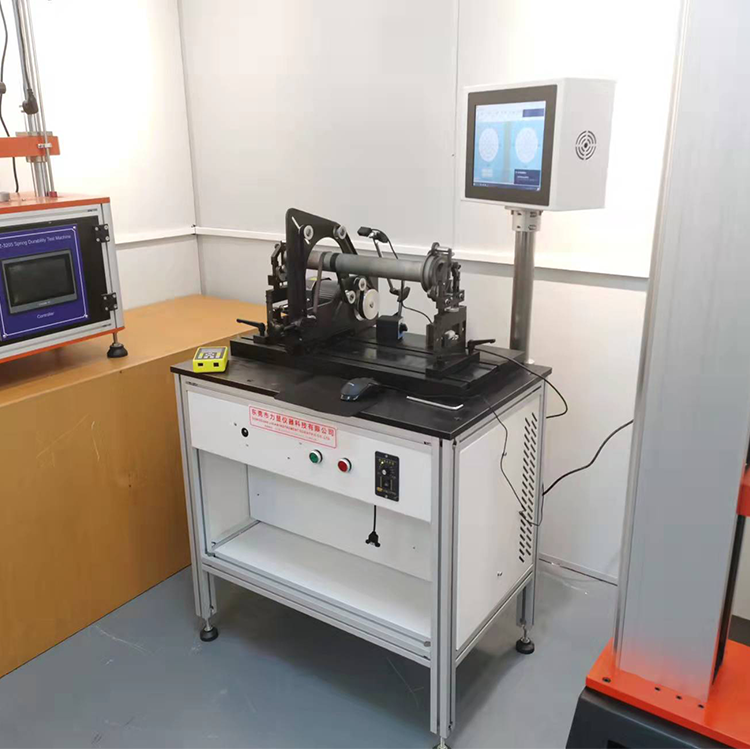

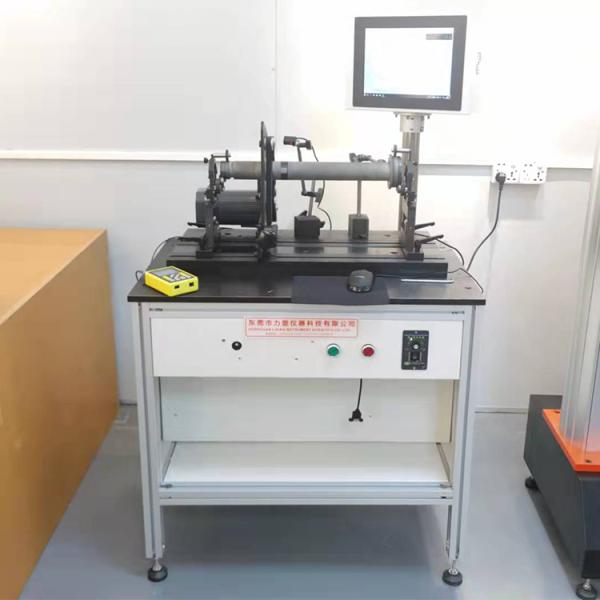

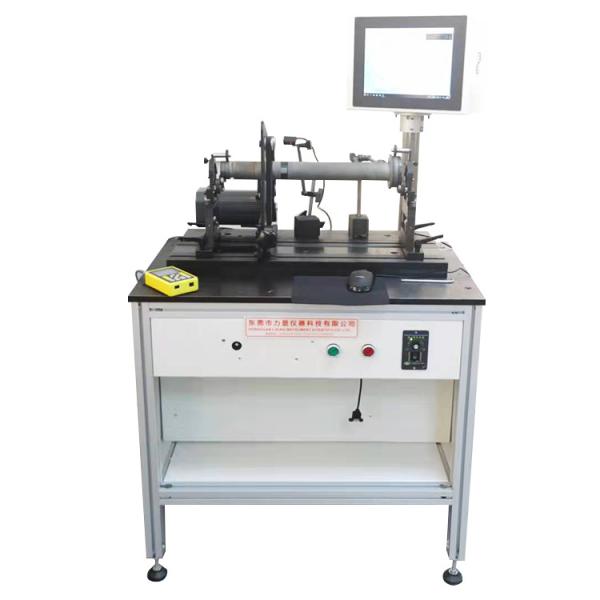

16kg Belt Dynamic Balancing Machine

Double station dynamic balancing machine adopts ring-belt transmission to ensure the balance quality and accuracy of the workpiece. The ring-belt transmission is convenient to load and unload, and the work efficiency is high.
Rustproof Vertical Balancing Machine

Overview

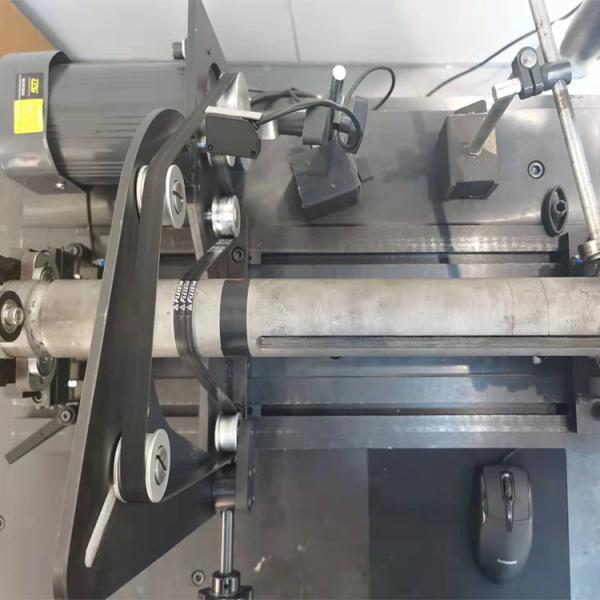

Belt Drive Impeller Double station Dynamic Balancing Machine is widely used in the balance correction of rotating body workpieces such as motor rotors, power tool machine tool spindles, and ventilation equipment. Ring belt dragging-is the use of rubber endless belt or silk woven endless belt, the rotor is driven by the motor pulley, so the ring belt dragging requires the rotor surface to have a smooth cylindrical surface, and the balance accuracy is high.
Rustproof Vertical Balancing Machine
Application
It is mainly a hard-bearing balancing machine that combines high-precision mechanical parts and advanced electrical parts into one. This series of products is one of the universal horizontal belt drive balancing machines developed, designed and manufactured by our company based on the core technology at home and abroad. , Is currently the most advanced model in the world, applied to various rotating workpieces, such as: micro-motors, power tools, water pumps, turbocharger rotors, textile machinery, high-speed tools, gyroscopes, fans, aerospace and other industries.
This machine adopts a belt transmission device, which has the advantages of high precision, high efficiency, convenient operation, intuitive display, rapid measurement, stable performance, and the use of frequency conversion speed regulation device to control the speed.

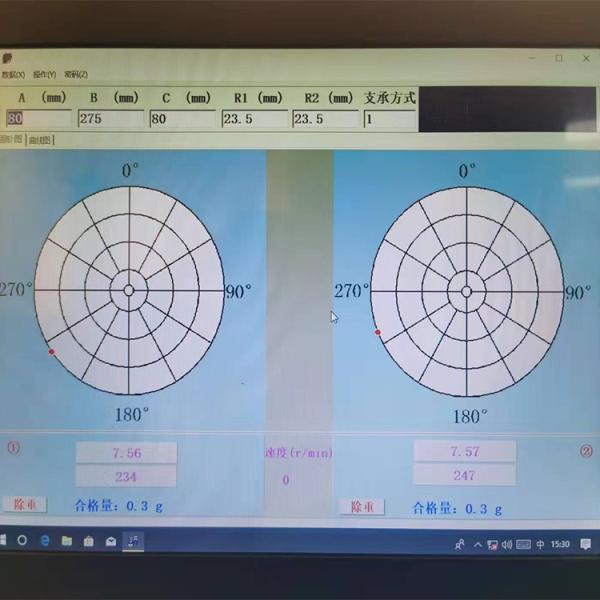

The electromechanical measurement system can be equipped with a microcomputer digital display measurement system or a computer measurement system.

Purpose
An unbalanced rotor generates a pressure on its supporting structure and the rotor itself during its rotation, and causes vibration. Therefore, the dynamic balance of the rotor is very necessary. The balancing machine is to check the dynamic balance of the rotor in the rotating state. The function of dynamic balance is:
● Improve the quality of the rotor and its components
● Reduce noise
● Reduce vibration
● Improve the trial life of supporting parts (bearings)
● Reduce user discomfort
● Reduce the power consumption of the product
Rustproof Vertical Balancing Machine

Technical Parameters

Model HZ-9701A-1 HZ-9701A-1.6 HZ-9701A-5S HZ-9701A-5X HZ-9701A-16 HZ-9701A-20
Max Mass of Workpiece(kg) 1 1.6 5 5 16 20
Max Diameter of Workpiece Ø260mm Ø360mm Ø360mm
Distance Between Two Support Bearings (mm) 20-550 40-550
V-Shape Journal Diameter Scope of Workpiece (mm) Ø3-Ø20 Ø3-Ø30 Ø5-Ø40
(With roller bracket)		 Ø10-Ø40
(With roller bracket)		 Ø10-Ø40
Diameter Scope of Driving Belt (mm) Ø10-Ø120 Ø10-Ø150 Ø10-Ø200
Balance speed (r/min) (when dragging workpiece diameter Ø100) 400-3000,frequency conversion stepless speed regulation
Motor Power (kw) 0.25
Minimun achieveable residual unbalance(gmm/kg) emar≤0.3 emar≤0.5
Unbalance reduction rate (%) URR≥95%
Measuring system Lixian special software
Note: The technical parameters of the above series of balancing machines are for reference only. The specific parameters and quotations need to be determined according to the actual situation of the rotor of the user's workpiece, and can also be customized.

Rustproof Vertical Balancing Machine

Rustproof Vertical Balancing Machine

Rustproof Vertical Balancing Machine

Dongguan Lixian Instrument Scientific Co. is one of the leading manufacturers of advanced testing instruments, founded on 2000,located in Dongguan, Guangdong province in China. Lixian Instrument located in Dongguan city, covers an area of 6000 square meters, take the lead in introducing the CNC processing center and NC lathe and other advanced equipment in 2010. Carried on several listed company lab, quality institutions, Tsinghua University, Aeronautics University's project. We have 30000+ buyers in domestic market, succeed in establishing the branch companies and maintenance department in Dongguan, Shanghai, Beijing, Jinjiang,Wuhan, Chongqing, Shenyang, Changsha. Our products owned CE/ISO/ASTM/ ROSH/UL certification, and have exported to more than 70countries like the USA, Germany, South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on.
Lixian Instrument owned CE/ISO/ASTM/ROSH/UL certification, and have exported to more than 70 countries like the USA, Germany,South Korea, Greece, India, Singapore, Brazil, Iraq, Saudi Arabia and so on. Lixian Instrument have a professional R & D team and a reliable quality management system, which introduced the CNC processing center and CNC lathe and other advanced equipment in 2010, successfully obtained the CMC measurement certificate and passed ISO 9001 system authentication.
FAQ
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months, caused by non-human damage.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).15 years focusing on test instruments field. Six years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 15 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely.Each of the instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be to go abroad for training and repairing.

Q6: What about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
