Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat
Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat
Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat
Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat
Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat
Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat
Specifications
Brand Name :
lixian
Model Number :
HZ-2004A
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7 days
Packaging Details :
wood
Price :
negotiate
Supply Ability :
negotiate
model :
HZ-2004
standard: :
IEC68-2-03_test method Ca_Steady damp-heat
Temprature range :
-70 degree ~ +100(150) degree
Humidity range :
20%~98%R.H.
Material :
Stainless steel
Application :
Industry,Machinery Parts,Auto Part
Dimensions :
Customer Required,Customized Sizes
Service :
OEM\ODM
Standard :
GB ASTM AISI DIN BS,DIN,ASTM,ISO
Color :
Customer Required
Description

-70 Degree ~ +100(150) Degree HOT-Selling Constant Temperature And Humidity Stable Test Chamber

Product Description

Equipment summary:

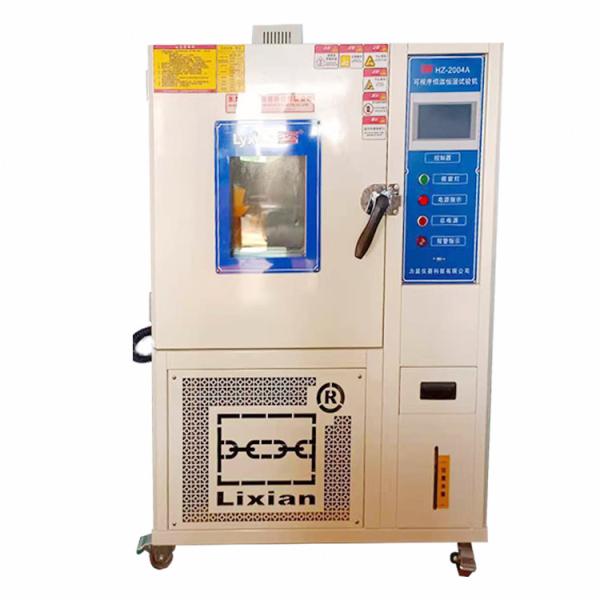

The machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Model (HZ-2004A)80-1000
Temperature range -70 degree ~ +100(150) degree
Humidity range 20%~98%R.H.
Accuracy/ uniformly ±0.1 degree ±0.1%R.H./ ±1.0 degree ±3.0%R.H.
Accuracy / volatility ±1.0 degree ±2.0%R.H. / ±0.5 degree ±2.0%R.H.
Heating / cooling time

About 4.0/min(heat),about 1.0/min(cool) ( 5~10/mm is

the specific condition )
Inside material Stainless steel SUS 304 #
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system

Air-cooled/ single-stage compressor(-20 degree) , wind,

water cooled/two-stage compressor(-40~-70 degree)
Protection

compressor overload switch, high and low pressure protection switch,

over-humidity-temperature protection switches, fuses, warning system
Accessories

recorder(purchase), view window, 50mm testing hole, PL lamp,

clapboard, Dry and wet gauze ball

Applicable industries:

Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Corresponding standard:

1. International Electrotechnical Commission Standard:

IEC68-2-03_test method Ca_Steady damp-heat

IEC68-2-01_test method A_cold

IEC68-2-02_test method B_dry heat

2. Military Standards:

3. Japanese Industrial Standard:

JIS C60068-2-3-1987 test method Ca: Steady damp-heat

JIS C60068-2-2-1995 test method B:dry heat

JIS C60068-2-1-1995 test method A:low temperature

4. USA Semiconductor Industry Standard:

JESD22-A101-B-2004 Constant temperature and humidity test

JESD22-A103-C-2004 High Temperature Storage Test

JESD22-A119-2004 Low Temperature Storage Test

Detailed Images

Environmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-HeatEnvironmental Testing Machine Flameproof Environmental Testing Machine HZ-2004 IEC68-2-03 Steady Damp-Heat
