Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N
Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N
Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N
Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N
Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N
Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N
Specifications
Brand Name :
Lixian
Model Number :
HZ-7039O
Certification :
ISO/ASTM/CE/ROSH
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000~8000/per set
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 sets /per month
Delivery Time :
5~8 days
Packaging Details :
standard export wooden case
MODLE :
HZ-7039O
Standard :
ASTM D5470-12
Sample size :
30mm
Thickness :
0.02-20mm
Cold polar temperature control range :
0-99.0℃
Thermal polar control temperature range :
room temperature-99.99℃
Test range of thermal conductivity :
0.05~45 W / m * k
Thermal resistance test range :
0.05~0.000005m2 * K / W
Range of pressure measurement :
0~1000N
Displacement measurement range :
0~30.00mm
Test accuracy :
better than 3%
Description

Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N

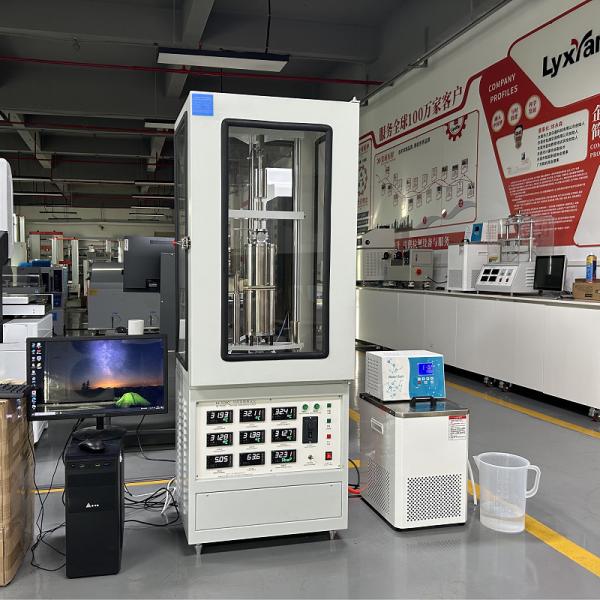

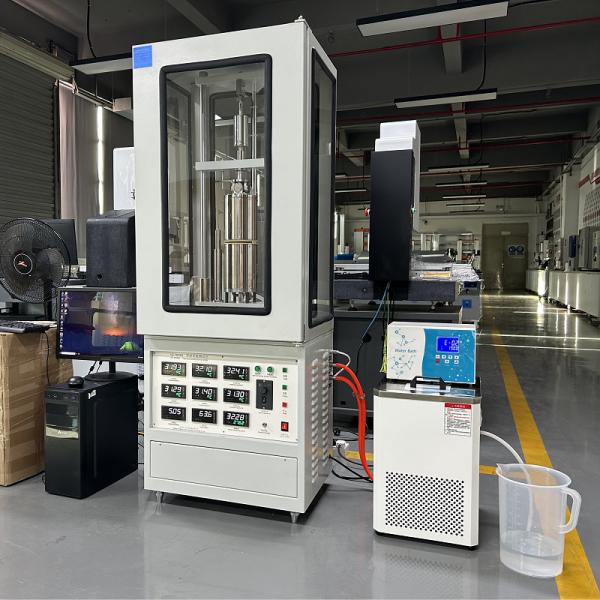

Thermal Conductivity Tester Product Description

This instrument mainly tests the thermal resistance of thin thermal conductor, solid electrical insulation material, thermal conductive silicone grease, resin, rubber, beryllium oxide porcelain, alumina porcelain and other materials, as well as the contact thermal resistance at the solid interface and the thermal conductivity of the material.The detection material is solid sheet, and the added frame can detect the powder state material and paste material.


Thermal Conductivity Tester standard: MIL-I-49456A (insulating sheet, thermal conductive resin, thermal conductive glass fiber enhancement); ASTM D5470-12 (test standard for thin thermal conductivity of solid electric insulation material), etc.

Thermal Conductivity Tester features: with automatic pressure, automatic thickness measuring device, and connected to the computer to realize automatic control.The instrument uses a 6-point temperature gradient detection to improve the test accuracy. Can detect the thermal resistance curve under different pressures, use the optimized mathematical model, can measure the material thermal conductivity and thermal resistance and contact thermal resistance at the interface and several parameters. Widely used in institutions of higher learning, scientific research units, quality inspection departments and production plants of material thermal conductivity analysis and testing

Model Number
HZ-7039O
Standard
ASTM D5470-12
Sample size
30mm
Thickness
0.02-20mm
Thermal polar control temperature range
room temperature-99.99℃
Cold polar temperature control range
0-99.0℃
Test range of thermal conductivity
0.05~45 W / m * k
Thermal resistance test range
0.05~0.000005m2 * K / W
Range of pressure measurement
0~1000N
Displacement measurement range
0~30.00mm
Test accuracy
better than 3%

Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N

Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N

Rubber Thermal Conductivity Testing Equipment Meeting Standard ASTM D5470-12 Range Of Pressure Measurement 0~1000N
