Oxygen Index Tester Equipment For Rubber And Plastic Astm D2863 Test Standard 2.5 Grade Pressure Gauge Accuracy
Oxygen Index Tester Equipment For Rubber And Plastic Astm D2863 Test Standard 2.5 Grade Pressure Gauge Accuracy
Oxygen Index Tester Equipment For Rubber And Plastic Astm D2863 Test Standard 2.5 Grade Pressure Gauge Accuracy
Oxygen Index Tester Equipment For Rubber And Plastic Astm D2863 Test Standard 2.5 Grade Pressure Gauge Accuracy
Oxygen Index Tester Equipment For Rubber And Plastic Astm D2863 Test Standard 2.5 Grade Pressure Gauge Accuracy
Oxygen Index Tester Equipment For Rubber And Plastic Astm D2863 Test Standard 2.5 Grade Pressure Gauge Accuracy
Specifications
Brand Name :
lixian
Model Number :
HZ-7022
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 1000~6000/per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
wood
 Model :
7022
Warranty :
1 Year
Product name :
Rubber Oxygen index tester
Combustion tube inner diameter :
100mm
High combustion tube :
450mm
Flowmeter accuracy :
2.5 grade

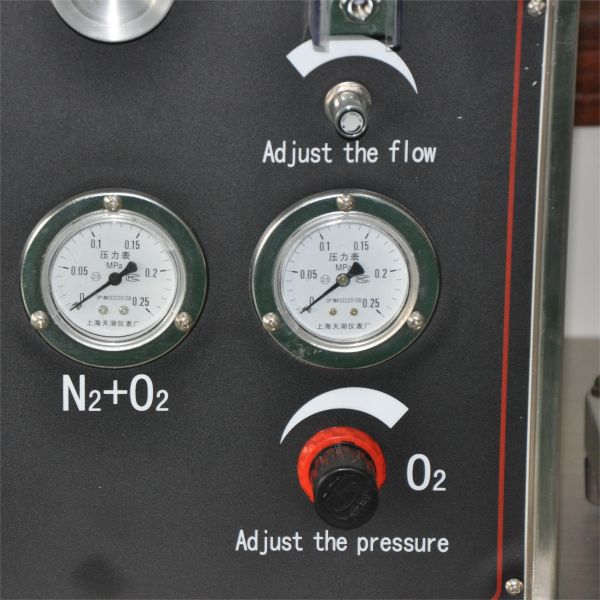

Pressure gauge accuracy :
2.5 grade
Gas source :
GB3863 prescribed oxygen , GB3864 prescribed nitrogen
Test environment:Temperature :
Temperature:10-35℃ ,Humidity:45[%]-75[%]
Peak hold load real-time value :
freedom to switch, easy to use
Description

Oxygen Index Tester Equipment For Rubber And Plastic Astm D2863 Test Standard 2.5 Grade Pressure Gauge Accuracy

Oxygen Index Tester Equipment summary:

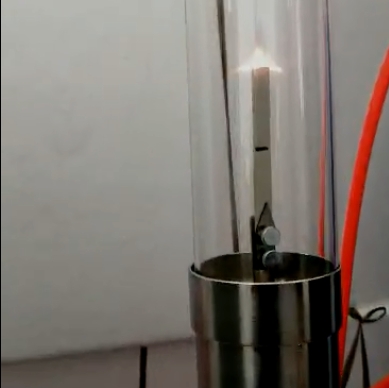

HZ-7022 Oxygen index tester used to determine the polymer to the desired oxygen concentration (volume percent) in the combustion process. The instrument is simple, easy to operate, through the sensor (import) measurement, the figures show the results,do not have to be calculated by the formula. This machine can be used as combustion performance as a means of identification of polymer can be used as a research tool in order to obtain a better understanding of the combustion process of the polymer.

Oxygen Index Tester Applicable Industry
HZ-7022 Oxygen index tester applies to the burning of plastics, rubber, foam and other materialsperformance test, its results are accurate, the reproducibility is good. Research, test equipment essentialfor the production of flame retardant material
Oxygen Index Tester Defined
The oxygen index tester under the conditions specified, the materials in the minimum oxygen concentration required for combustion of oxygen and nitrogen mixed gas stream. To represent the oxygen percentage of the volume occupied by the value. The oxygen index is high that the material is nonflammable, low oxygen index of said material is highly flammable and is generally believed that the oxygen index of <22 is a flammable material, oxygen index between 22 --- 27 is a combustible material, oxygen index> 27 is a flame retardant materials.

Oxygen Index Tester Tenhnical parameter:

Model Number
HZ-7022
Product name
Rubber Oxygen index tester
Standard
Astm D2863
Combustion tube inner diameter
100mm
High combustion tube
450mm
Flowmeter accuracy
2.5 grade
Pressure gauge accuracy
2.5 grade
Gas source
GB3863 prescribed oxygen , GB3864 prescribed nitrogen
Test environment:Temperature
Temperature:10-35℃ ,Humidity:45[%]-75[%]
Working pressure
Working pressure
