Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film
Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film
Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film
Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film
Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film
Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film
Specifications
Brand Name :
lixian
Model Number :
HZ-1005B
Certification :
CE/ISO/ASTM/ROSH
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
7 days
Packaging Details :
wood
Model :
HZ-1005B
Accuracy :
0.5 grade
Power supply :
220V 50Hz
Range of testing speed :
0.01~500mm/min
Effective tensile stroke :
300mm
Measuring accuracy: :
the value ±0.5%
Maximum Load :
5KN
power :
400w
Usage :
Tensile Strength Testing Machine
Description

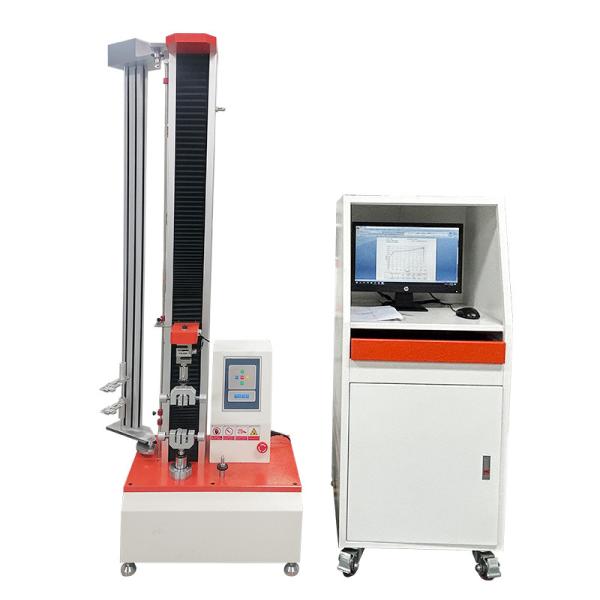

Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film

UTM Equipment summary:

ASTM D882 Thin Film 5kn Tensile Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This series of machine using single-space structure, operational space at the bottom, it is mainly applied to test Thin Film material which the load is less than 5KN, it has the parameters, such as stress, strain, control mode of displacement,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.

UTM Specification
Model Number
HZ-1005B
Standard
ASTM D882
Maximum load
5KN
Accurate grade
0.5 grade
Effective tensile stroke
300mm
Test speed
0.01~500mm/min
Unit
KG,N,LB, TON can be exchanged.
Measuring accuracy
the value±0.5%
power
400w
Motor
Delta AC servo motor and drive
Overload protection
Overload 10%, automatic protection

Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film

Tensile Strength Testing Equipment 0.5 Grade Accuracy Servo Utm 5kn Max Load ASTM D882 For Thin Film

UTM Fixture

UTM grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. UTM grips fixture is an indispensable part of electronic universal testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. UTM grips fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides UTM grips customized services to customers around the world and export UTM for 25 years.

Recommend Products
Universal testing machine, a material testing machine integrating tensile, bending, compression, shearing, ring stiffness and other functions. It is mainly used for the mechanical performance testing of metal and non-metal materials. It is used in industrial and mining enterprises, scientific research units, colleges and universities, engineering Ideal testing equipment for quality supervision stations and other departments.

Model: HZ-1007E
Max force:100kg

Model:HZ-1005A

Max force: 500kg

Model: HZ-1007A

Max force: 200kg

Model:HZ-1003A

Max force:2000kg

Model: HZ-1009A

Max force: 10T

Model: HZ-1007C

Max force:200kg
