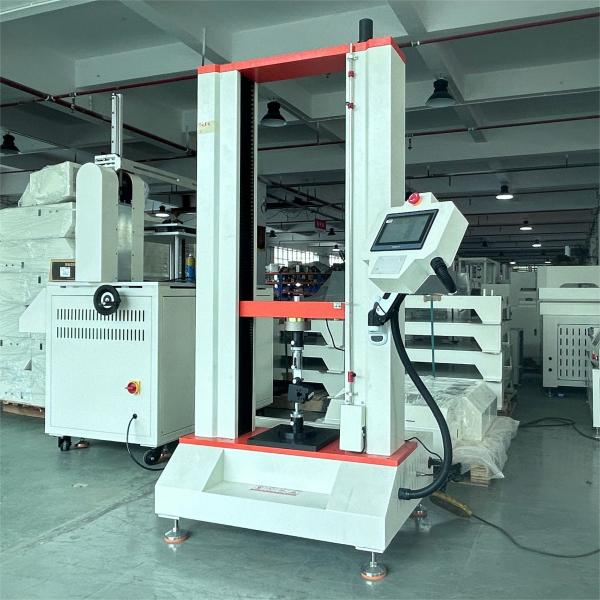

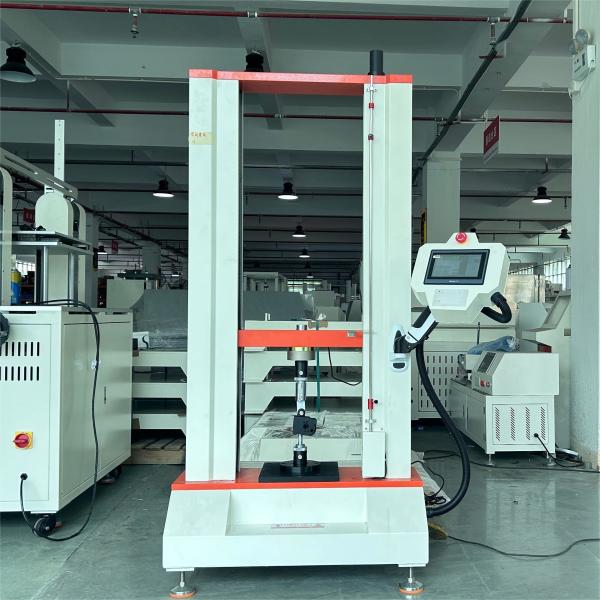

Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min
Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min
Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min
Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min
Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min
Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min
Specifications
Brand Name :
lixian
Model Number :
HZ-1010A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiate
Delivery Time :
7 days
Packaging Details :
wood
Max load :
2ton
Accuracy :
0.5grade
Effective force range :
0.4％～100％ (0.5grade)
Effective test width :
390mm (can be enlarge as customer request)
Resolution :
1/200000
Power :
400W
Machine size :
1200*530*1800mm(length * width * height)
Warranty :
1 Year
Model :
HZ-1010A
Application :
Motor plastic shell stretching
Description

Universal Tensile Test Machine Servo Motor Plastic Shell UTM 2ton Capacity Testing Speed 50~300 Mm/Min

Tensile Test Machine Equipment Summary:
Motor plastic shell tensile strength testing machine is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive , computer and color inkjet printer. it has accurate load speed,range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. Floor-standing models, it is taken account of modern industrial design.
Tensile Test Machine Specification
Model Number
HZ-1010A
Application
Motor plastic shell
Maximum load
2 ton
accuracy of load measurement
the load cell + HZ-2000 screen ± 0.5%(full range of 5% -100%)
Resolution
1 / 50000
displacement resolution
0.001mm
power system
AC motor,deceleration device(fromItaly)
displacement
400, 500, 600mm (or customize)
Range of testing speed
50~300 mm/min
Accruacy of displacement measurement
Tolerance: ±0.5%/ tolerance: ±0.2%
Data sampling frequency
200 times/sec

Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min

Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min

Servo Motor Plastic Shell Universal Tensile Test Machine UTM 2ton Capacity Testing Speed 50~300 Mm/Min

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 25year.
Recommend Products
Universal testing machine, a material testing machine integrating tensile, bending, compression, shearing, ring stiffness and other functions. It is mainly used for the mechanical performance testing of metal and non-metal materials. It is used in industrial and mining enterprises, scientific research units, colleges and universities, engineering Ideal testing equipment for quality supervision stations and other departments.

Model: ZME-1007E
Max force:100kg

Model: ZME-1005A

Max force: 500kg

Model: ZME-1007A

Max force: 200kg

Model: ZME-1003A

Max force:2000kg

Model: ZME-1009A

Max force: 10T

Model: ZME-1007C

Max force:200kg
