Specifications
Brand Name :
lixian
Model Number :
HZ-7046
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 1000~6000/per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
wood
 Model :
7046
Product name :
Electronic Instruments Glow Wire Tester Equipment
test product movement speed :
10mm/s ~ 25mm/s
U type hot wire :
- 4mm + 0.04mm
hot wire electric heating temperature :
0 to 1000 DEG C
precision class: :
0.5
Test time :
1s ~ 999.9s
test article on hot wire test pressure :
1.0N + 0.1N
hot into the depth :
7mm + 0.5mm(adjustable)
Warranty :
1 Year
Description

Electronic Instruments Glow Wire Tester Equipment Hot Into The Depth 7mm + 0.5mm (Adjustable) Precision Class: 0.5

Glow Wire Tester Equipment summary:

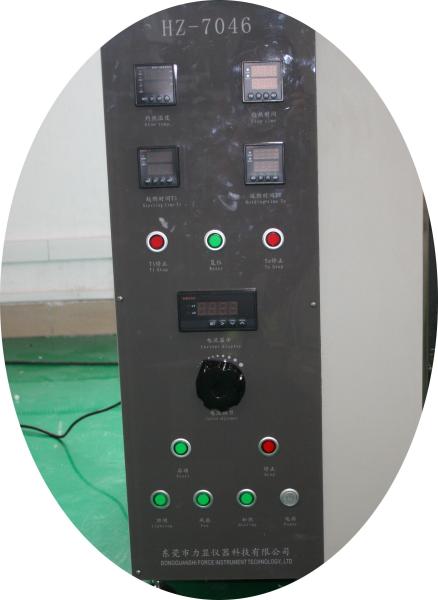

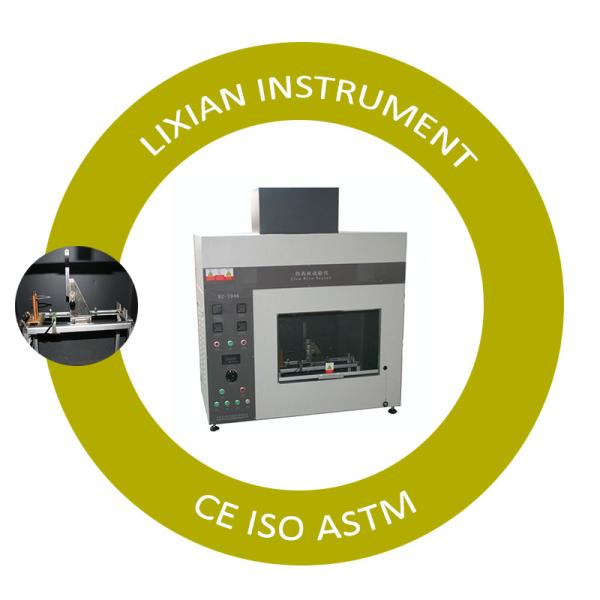

The glow wire test apparatus using test box part and control part integration design, convenient installation and commissioning on site. Test case and an important component of the stainless steel manufacturing, high smoke, gas corrosion; regulator manually adjust the current test with high efficiency, to achieve precise control of temperature; time, temperature digital display, observe and record the convenient, stable and reliable.
With a purity of 99.8% thickness of 0.06mm, length of 2 mm square silver put in at the top of the hot wire surface temperature measurement system of temperature calibration for 960 DEG C, glow wire heated to the melting of silver foil, temperature of 960 DEG C plus or minus 15 degrees Celsius. Test glow wire temperature thermo-couple, the metal armor sets of at least ability to 1050 DEG C temperature.

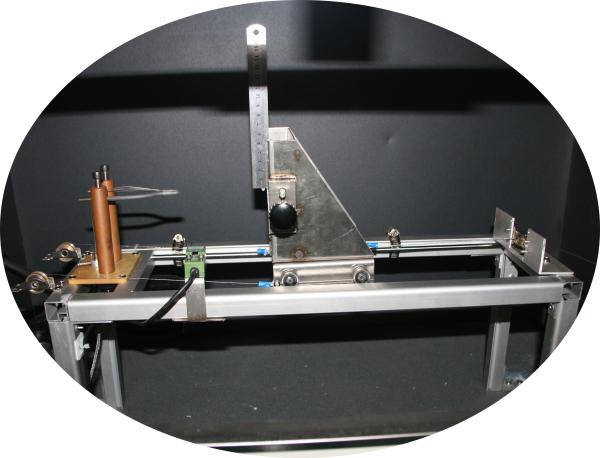

The relay to control the glow wire burned into the sample depth, and has adjustable function, also equipped with 7mm stainless steel gauge, has the characteristics of fast and accurate. imported thermocouple, accurate temperature control. Thermocouple accessories using a special thermocouple connection head, plug and convenient and quick to replace.
Glow wire contact the measured items, equipment to cut off the current 2S power supply, the samples in the car after returning, to ensure accurate test. 6 equipped with a network adapter sample clamp, easy to clamp special shaped and small test products.
Lighting lamps using standard explosion-proof lamps, when the experiment is not connected with the outside world, in line with the requirements of the standard test, the use of imported time relay and counter, other components

Glow Wire Tester Specification
Model
HZ-7046 Electronic Instruments Glow Wire Tester Equipment
test product movement speed
10mm/s ~ 25mm/s
U type hot wire
- 4mm + 0.04mm
hot wire electric heating temperature
0 to 1000 DEG C
precision class:
0.5
test time
1s ~ 999.9s
test article on hot wire test pressure
1.0N + 0.1N
hot into the depth
7mm + 0.5mm(adjustable)
box material
stainless steel
exhaust holes
- 100mm
Basic principle:
Glow Wire Tester Glow wire test apparatus will provide material shapes and (O 4 Ni80/Cr20) of the electric heating wire with large current heating to test temperature (550 DEG C to 960 DEG C) 1min, with specified pressure (1.0N) vertical burning hot sample 30s and visual test products and bedding material is burning or to burning time to determine the risk of ignition of electrical and electronic equipment products; Determination of solid insulating materials and other solid combustible materials of ignition, ignition temperature (GWIT) flammability and combustibility index (gwfi).
Glow Wire Tester Applicable industry: Glow wire test apparatus used in lighting equipment, low-voltage electrical appliances, household electrical appliances, electrical tools, motor, electric tools, electronic instruments, electrical instruments, information technology equipment, electrical business equipment, electrical connections of parts and accessories, such as electrical and electronic products and components, production and quality inspection departments. It can also be used in insulating materials, engineering plastic or other solid combustible materials industry.
Glow Wire Tester Meet the standards: Glow wire test is IEC60695-2-10:2000 to IEC60695-2-13:2000< glow wire / hotline, standard test methods, glow wire test apparatus and general test procedure > and gb4706.1 and GB/T5169, UL746A, IEC829, DIN695, VDE0471 etc. using flame ignition source simulation test project.
