Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load
Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load
Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load
Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load
Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load
Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load
Specifications
Brand Name :
lixian
Model Number :
HZ-1005A
Certification :
CE/ROHS/ISO
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500hundred sets per month
Delivery Time :
7days
Packaging Details :
wooden
test speed :
300mm/min
STANDARD :
ASTM D4831
Max Force Measurement :
5 kN
Control System :
PLC
Product Name :
Universal Testing Machine
Max Load Capacity :
5kN
Data sampling frequency :
200times/sec
Delivery :
in stock and prompt ship
Resolution :
1/50000
Description

Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load

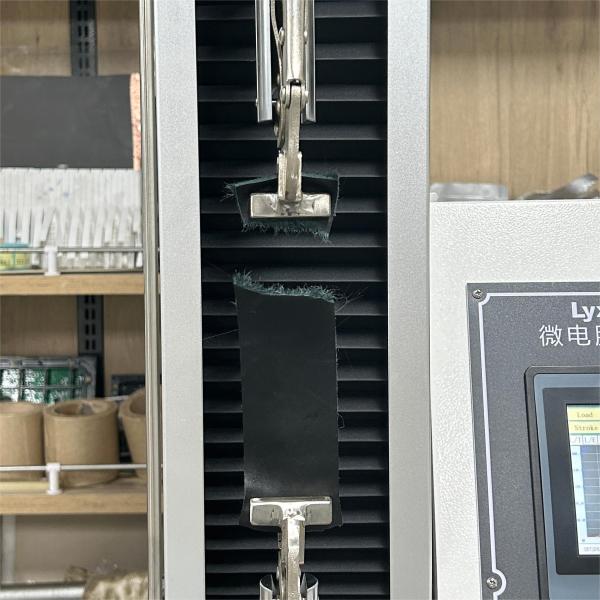

HZ-1005A Universal Testing Machine Microcomputer tensile testing machine is a leather tensile testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 5KN.

Universal Testing MachineSpecification
Model Number HZ-1005A Tensile testing machine
Standard ASTM D2209
Certification CE/ROHS/ISO
Maximum load 50N,100N,200N500N, 1kN, 2kN, 2.5KN,5KN Capacity(optional)
Resolution 1/50000
Main function tensile, compression, bending, shear, peel, tear, two-point extended
Displacement 1200mm
Aplicable industry textile, rubber, plastics, synthetic leather, tape, adhesive...
Displacement resolution 0.001mm
Maximum Load 5KN
Data sampling frequency 200times/sec
Delivery in stock and prompt ship

Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load

Universal Testing Machine ASTM D2209 Test Standard For Leather Strength Testing Equipment 5kn Max Load

Single Column GRC Flexural Testing Machine HZ-1005...

Universal Testing Machine Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 24 year.
