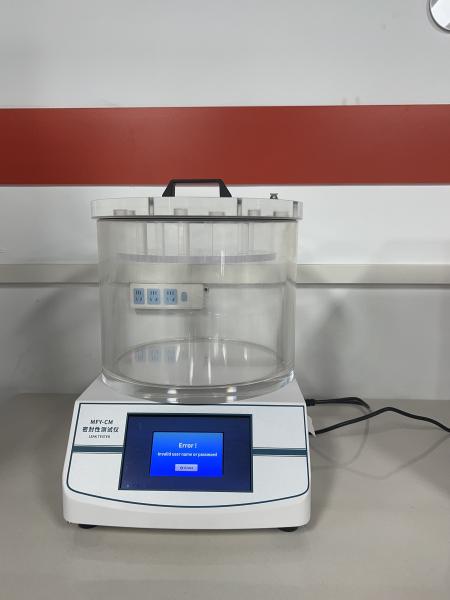

Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
Specifications
Brand Name :
lixian
Model Number :
HZ-HST-H3
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 1000~6000/per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 days
Packaging Details :
wood
 Model :
HZ-MFY-CM
Screen size :
7-inch touch screen
Vacuum degree :
0 ~ -90kPa
Precision :
0.5 grade
Negative pressure generation method :
Vacuum generator
Effective size of vacuum chamber :
270 mm *210 mm (H) (standard)
Air source pressure :
0.7MPa
Air source interface :
6 mm polyurethane tube
Overall dimensions :
370 mm (L)* 300 mm (B) *450 mm (H)
Power supply :
AC 220 V 50 Hz
Description

Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging

Intelligent​ sealing tester is professionally suitable for product sealing tests. Through the test, the sealing process and sealing performance of flexible packaging can be effectively compared and evaluated. It is used in food, plastic flexible packaging, wet wipes, pharmaceuticals, daily chemical and other industries. Ideal seal test instrument.
Intelligent​ sealing tester Test standard
The instrument complies with many national and international standards:
ASTM D3078,
YBB00112002-2015,
YBB00122002-2015,
YBB00262002-2015
Product features
1.7-inch color touch screen, more convenient humanized operation
2.Two test modes of pressure holding and pressure increasing to meet the testing needs of different materials
3.Fully automatic control, automatic completion of pressure extraction, pressure holding, pressure replenishment, timing, backflush, printing, saving, and data upload
4.Equipped with a micro printer, USB data interface, supports PC software measurement and control operation, and mbar and kpa units are interchangeable.
5.Automatically save historical test records, local query, and can be exported to EXCEL format for saving
6.User hierarchical authority settings to meet GMP requirements, test record auditing and tracking functions
7.Test results are uploaded to the cloud server for storage, and can be browsed anywhere in the world with a network
8.Local data and cloud data are backed up double to ensure that data will not be lost
9.Chinese and English bilingual options to facilitate customer language switching
Basic application
Applicable to the overall sealing test of glass bottles, tubes, cans and boxes
Applicable to the overall sealing test of plastic bottles, tubes, cans and boxes
Applicable to the overall sealing test of metal bottles, tubes, cans and boxes
Applicable to the sealing test of paper-plastic composite bags and box materials
Extended application
Applicable to the sealing test of pen refills
Applicable to the sealing test of electronic components
Applicable to the sealing test of medical devices
Specification
Model Number
HZ-MFY-CM
Screen size
7-inch touch screen
Vacuum degree
0 ~ -90kPa
Precision
0.5 grade
Negative pressure generation method
Vacuum generator
Effective size of vacuum chamber
270 mm *210 mm (H) (standard)
Air source pressure
0.7MPa
Air source interface
6 mm polyurethane tube
Overall dimensions
370 mm (L)* 300 mm (B) *450 mm (H)
Power supply
AC 220 V 50 Hz
Net weight
15 kg

Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
