Vibration Test Table ISO 2247 Standard Test Mode Fixed Frequency, Sweep Frequency, Frequency Doubling, Program
Vibration Test Table ISO 2247 Standard Test Mode Fixed Frequency, Sweep Frequency, Frequency Doubling, Program
Vibration Test Table ISO 2247 Standard Test Mode Fixed Frequency, Sweep Frequency, Frequency Doubling, Program
Vibration Test Table ISO 2247 Standard Test Mode Fixed Frequency, Sweep Frequency, Frequency Doubling, Program
Vibration Test Table ISO 2247 Standard Test Mode Fixed Frequency, Sweep Frequency, Frequency Doubling, Program
Vibration Test Table ISO 2247 Standard Test Mode Fixed Frequency, Sweep Frequency, Frequency Doubling, Program
Specifications
Brand Name :
lixian
Model Number :
HZ-4006A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
negotiate
Delivery Time :
7 days
Packaging Details :
wood
MODEL :
HZ-4006A
Frequency modulation range (Hz) :
1~600
Maximum acceleration :
＜20g
Amplitude (mm) :
0.001-5 (Note: it can be displayed only after adding amplitude sensor)
Excitation mode :
Electromagnetic type
Standard :
ISO 2247 ISO 13355
Vibration waveform :
sine wave
Test mode :
Fixed frequency, sweep frequency, frequency doubling, program, logarithm, random
Time setting range :
0-9999h / M / s minute arbitrary setting
Description

Vibration Test Table ISO 2247 Standard Test Mode Fixed Frequency, Sweep Frequency, Frequency Doubling, Program

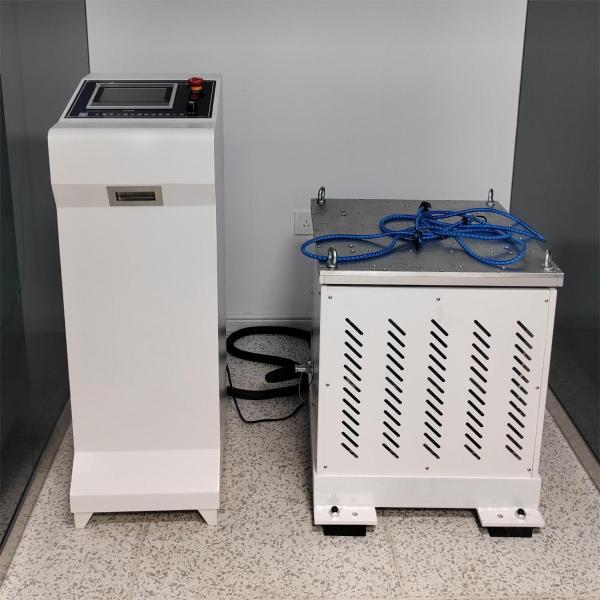

Electromagnetic vibration table (triaxial directio...

Vibration Test Table Equipment summary:
Electromagnetic Vibration Table (Triaxial Direction) is suitable for electronic, electromechanical, optical communications, packaging, auto parts, toys and other industry research, development, quality control and manufacturing. quality control inspection and production line, assembly line.

Vibration Test Table Software functions:
The independently developed CIMS + FCS is adopted for the shaking table software system, which can be expanded and configured with acceleration sensor and PC monitoring. The latest international vibration test standards are quoted to realize the selection of fixed frequency, sweep frequency, frequency doubling, program, logarithm and random vibration modes.

Vibration Test Table Technical Parameters
Product model 4006A
Frequency modulation range (Hz) 1~600
Product load (kg) 50kg (customized if larger)
Frequency accuracy 0.01 Hz
Maximum acceleration ＜20g
control mode Industrial touch screen
Amplitude (mm) 0.001-5 (Note: it can be displayed only after adding amplitude sensor)
Excitation mode Electromagnetic type
Amplitude modulation mode Electronic amplitude modulation
Vibration direction Triaxial (x + y + Z)
Vibration waveform sine wave
Test mode Fixed frequency, sweep frequency, frequency doubling, program, logarithm, random
Time setting range 0-9999h / M / s minute arbitrary setting


Vibration Test Table​ Features
1. X, y and Z axis vibration can be realized on the same table, with program control, accurate and balanced frequency, and no drift during long-term operation;
2. With single point, segment and multi segment time timing;
3. Stepless amplitude adjustment, with frequency sweeping and frequency fixing functions, to meet the test requirements of different industries;
4. Embedded amplitude prediction program, four point synchronous excitation, uniform table vibration;

Vibration Test Table Standard
ISO 2247 packaging Full shipping packages and unit goods Fixed low frequency vibration test
ISO 13355 packaging - full, filled transport packaging and unit load - Vertical random vibration test
IEC 60068 basic environmental test procedures
ASTM d999 test method for vibration testing of shipping containers
ASTM d4728 random vibration test method for shipping containers
ASTM d3580 standard for product vibration test (vertical linear motion)
