Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
Specifications
Brand Name :
Lixian
Model Number :
HZ-1717
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
500 sets/per month
Delivery Time :
5~8 days
Packaging Details :
Standard export wooden case
Model :
HZ-1717i
Combustion torch :
1KW mixed combustion nozzle
standard :
IEC60332
blue flame core Height :
46~78mm
total flame height :
170~190mm
Combustion gas :
95% pure propane gas or liquefied petroleum gas
Gas flow range :
100-1000mL/min for coal gas
Pressure gauge :
0~2kg/mm² range adjustment
Air flow range :
1-10L/min; (using float flowmeter)
Test length :
675±10mm
Power supply :
AC 220V, 50Hz
Origin :
China
Description

Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm

Single Wire Vertical Burning Tester (Optical Fiber...

Combustion Test Machine Equipment overview:

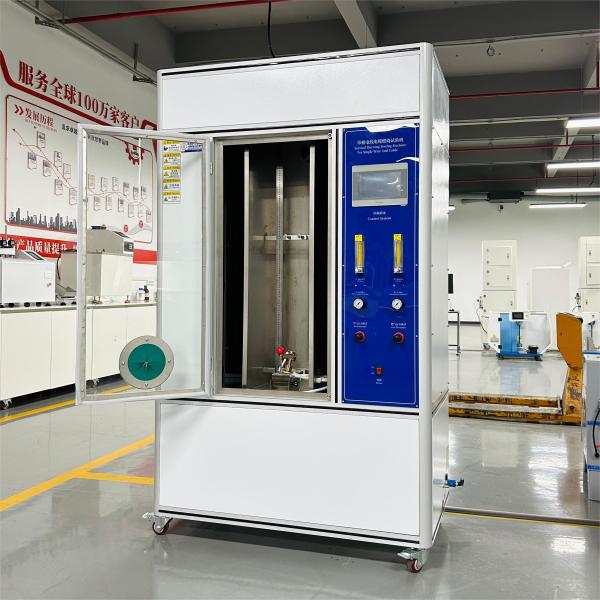

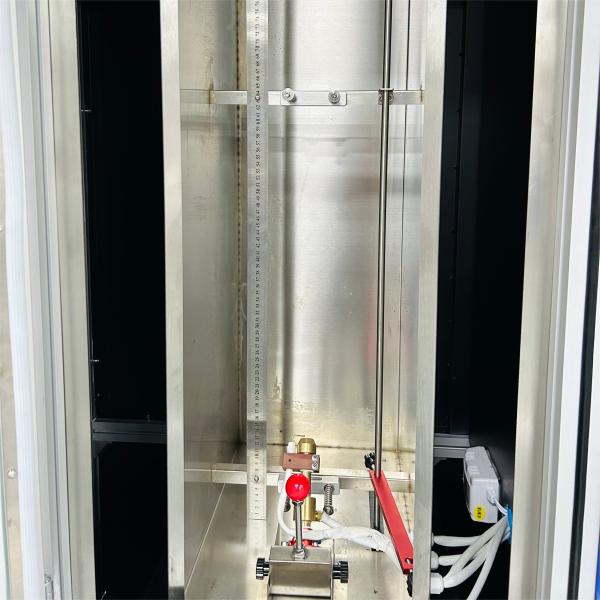

The single wire and cable vertical Burning Tester is suitable for measuring the vertical combustion non-spreading performance of single plastic wire, control wire, cross-linking, elevator, ship, mining cable, etc. It can also be used for vertical combustion tests of high self-extinguishing low-smoke halogen-free flame-retardant polyolefin insulation materials and 105℃ low-smoke halogen-free flame-retardant olefin irradiation insulation materials. This device is a device for conducting combustion resistance tests on single wires and cables. The device has the advantages of high accuracy, automatic timing, automatic end of the test, and easy operation.

Standard:

1. UL94 "Fire Test"

2. GBT2408-2008 "Plastics - Determination of Combustion Properties - Horizontal and Vertical Methods"

3. IEC60695-11-10 "Flame Fire Test"

4. GB5169.16-2017 "Fire hazard test for electrical and electronic products - Part 16: Test flame 50W horizontal and vertical flame test method"

Parameter:

Specification
Model
HZ-1717i Burning Tester
Combustion torch
1KW mixed combustion nozzle
standard
IEC60332
blue flame core Height
46~78mm
total flame height
170~190mm
Combustion gas
95% pure propane gas or liquefied petroleum gas
Gas flow range
100-1000mL/min for coal gas
Air flow range
1-10L/min; (using float flowmeter)
Pressure gauge
0~2kg/mm² range adjustment
Test length
675±10mm
Reference standards: GB/T 18380.11-2008, IEC60332-1-1:2004, GB/T 18380.12-2008, IEC60332-1-2:2004, GB/T 18380.13-2008, IEC60332-1-3:2004, GB/T 18380.21-2008, IEC60332-2-1:2004, GB/T 18380.22-2008, IEC60332-2-2:2004, EN50265-1, EN50265-2-1, GB/T5169.14-2007 and IEC60695-11-2:2003.
Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
Single Wire Vertical Burning Tester Machine With Standard IEC60332 Blue Flame Core Height 46~78mm
